Heavy Duty Warehouse Double Guard Rail Add-On Unit
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Handle-It® Heavy Duty Double Guard Rail Add-On Unit
Handle-It Heavy Duty Warehouse Guard Rail Add-On unit comes with two guard rails and one post column, Safety Barriers, and Forklift Guardrails tested to withstand 10,000 lbs. at 4 mph. Quick Ship stock in Milwaukee WI warehouse. Available 2 - 10 ft. Long x 43" Tall

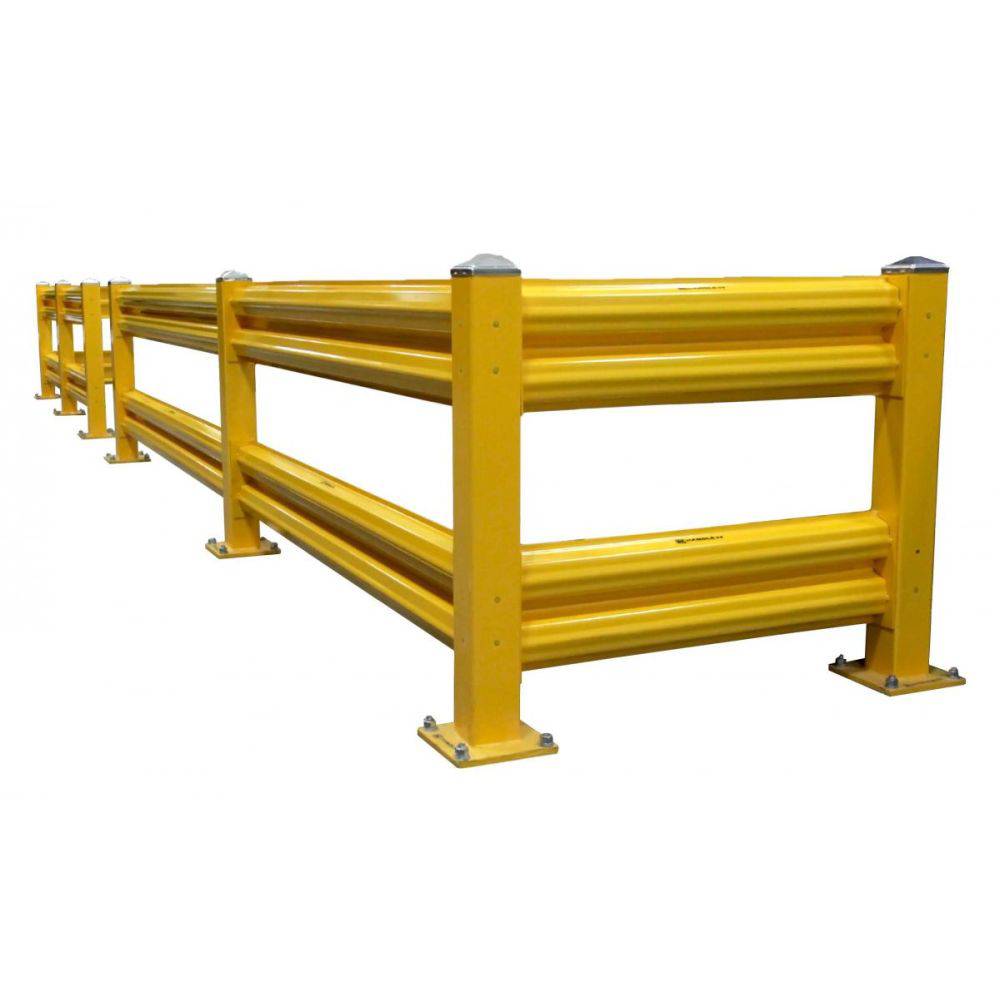

To make a line of guard rail first select a Starter Unit, and then select the size and number of Add-On Units needed.
Lift Out Adapters are sold separately.
Adjustable Pedestrian Gates are sold separately.

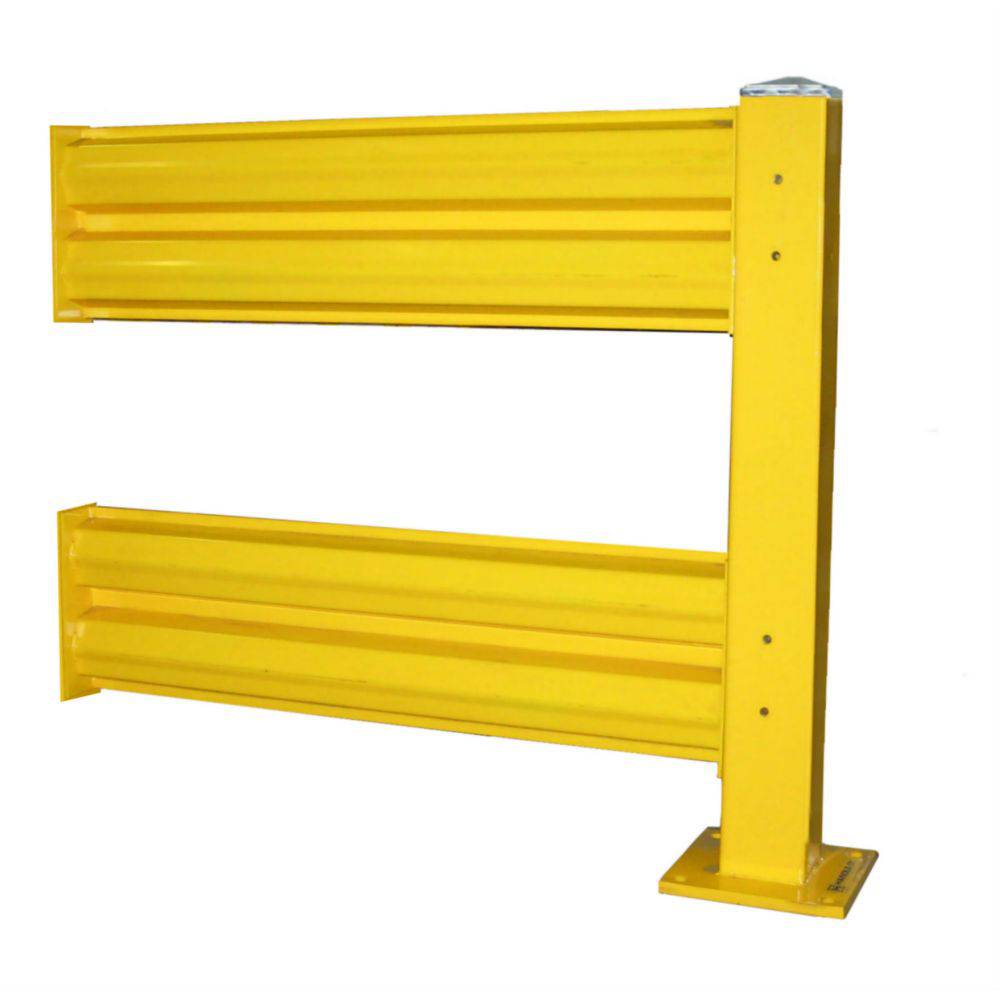

Add On Kits Include
- (1) 43" Tall double rail post
- (2) Heavy-duty rails (2' - 10' L)
- All hardware for install
Features and Benefits
- Tested to withstand 10,000 lbs. at 4 mph
- Powder-coated Handle-It yellow yields high visibility in a durable finish
- Columns are 4.75" x 4.75" steel square tube mounted on a 10" x 10" base plate
- Our product design allows for faster installation cutting down on labor costs.
- Drilled & pre-tapped posts have mounting on all four sides
- Custom Sizes available for your special projects
- All anchors and hardware/caps included
- In Stock, items can ship within 24 hours.

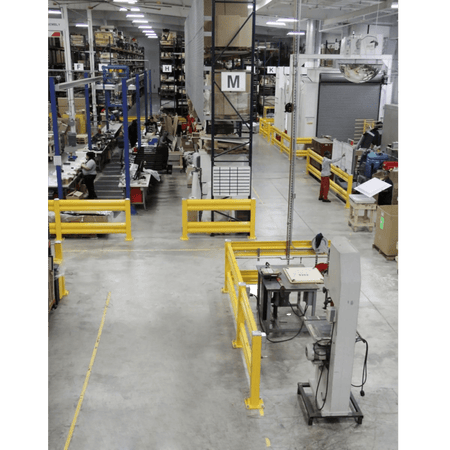

Areas for Install:

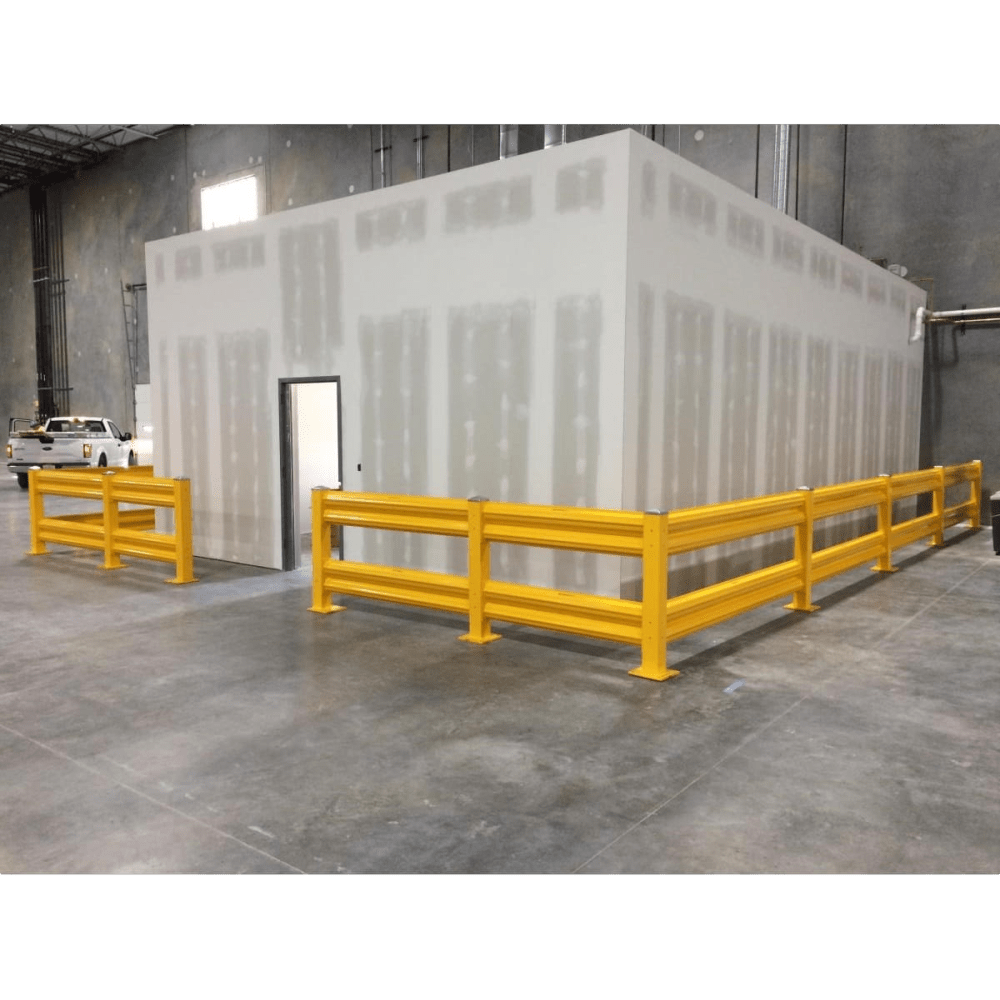

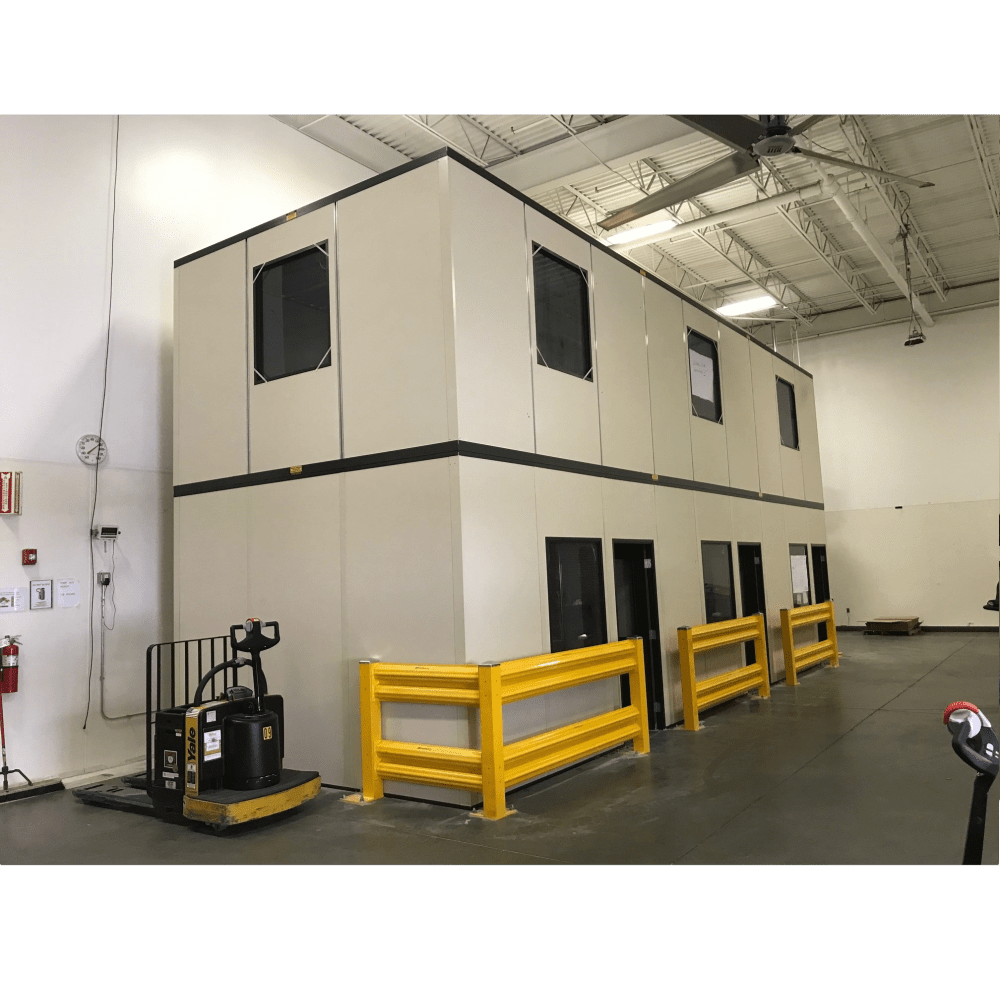

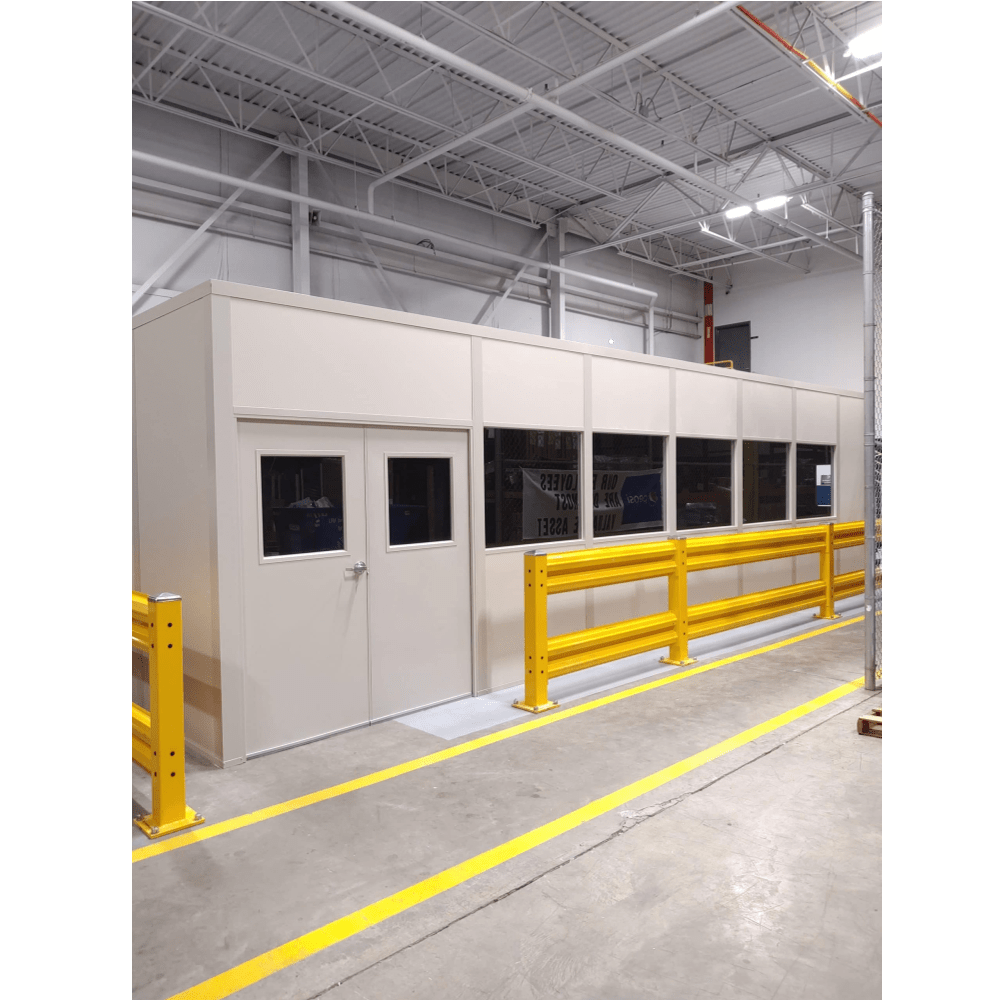

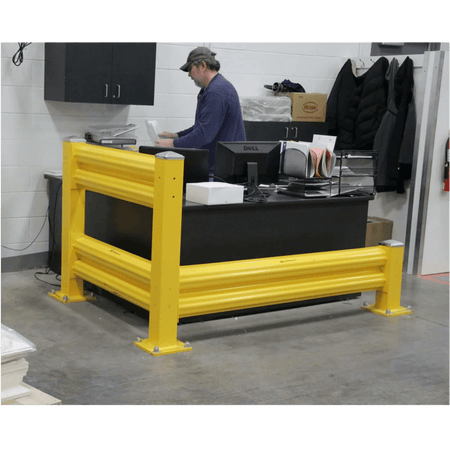

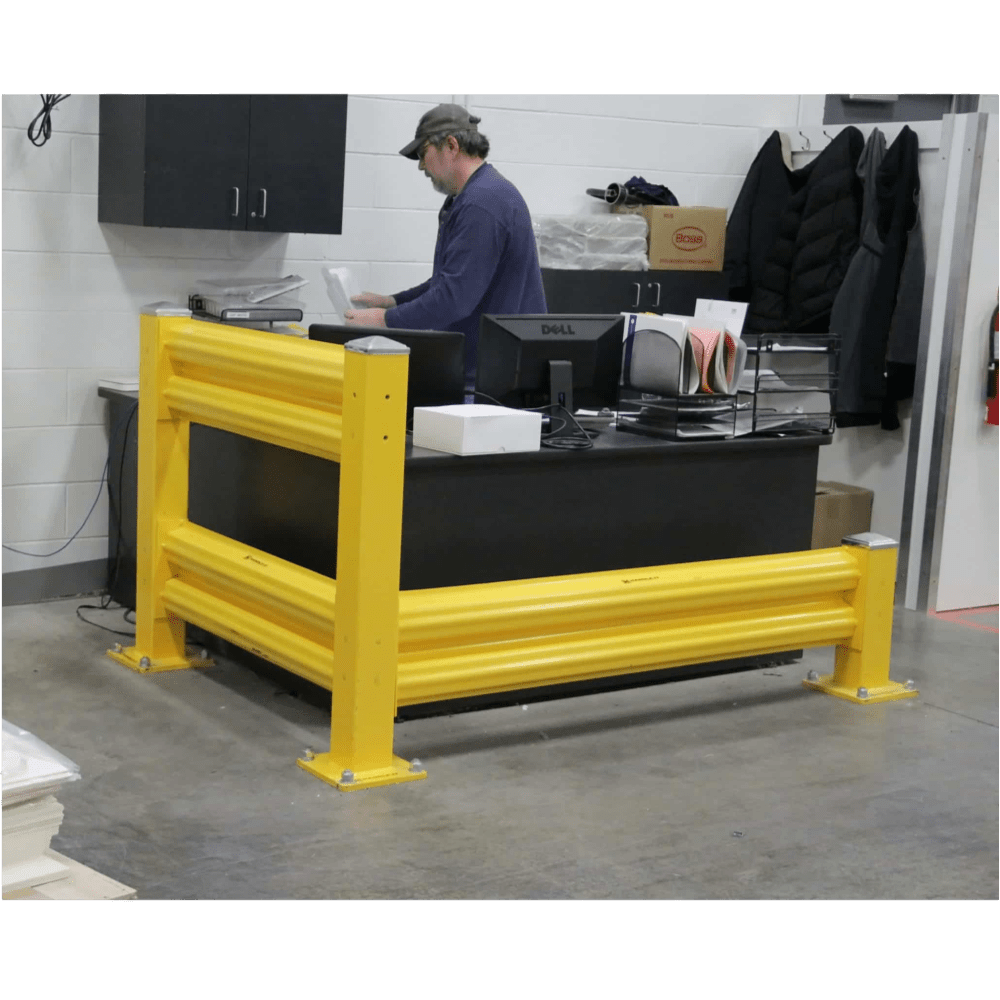

- Around inplant offices and workstations

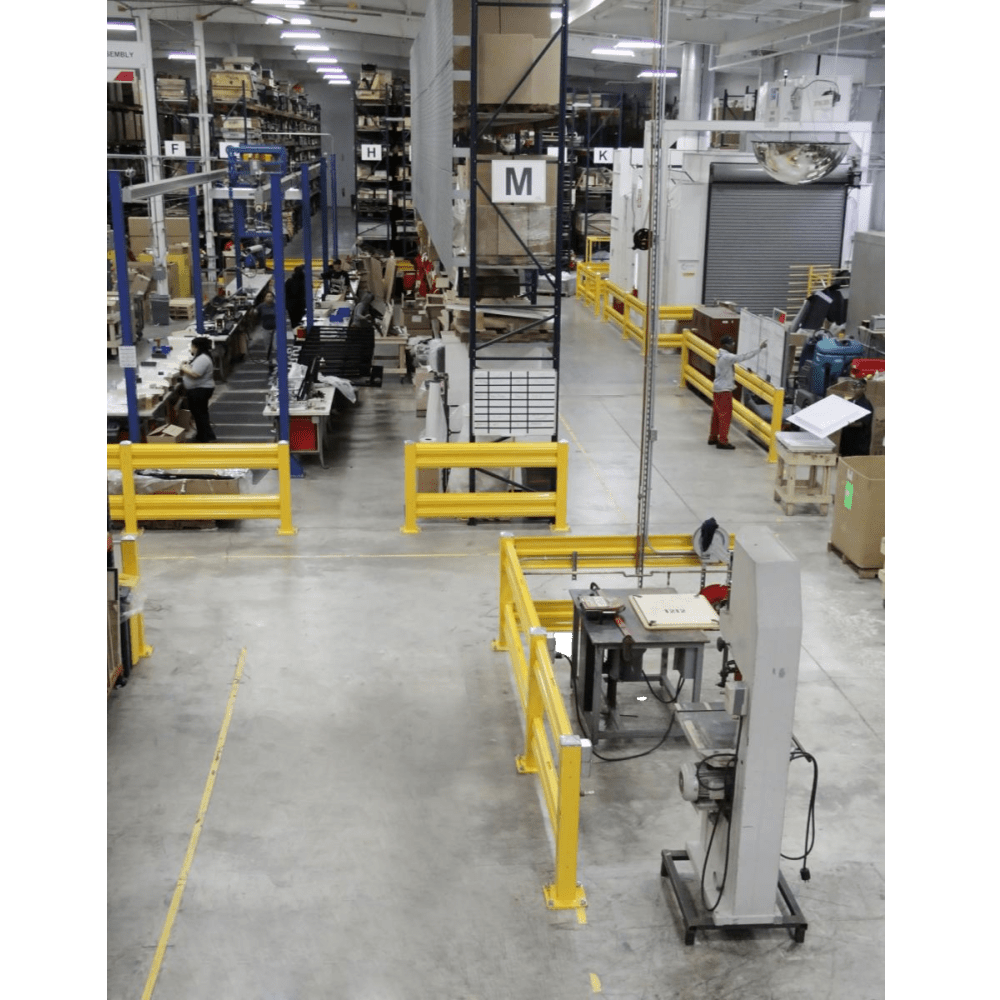

- Along pedestrian walkways.

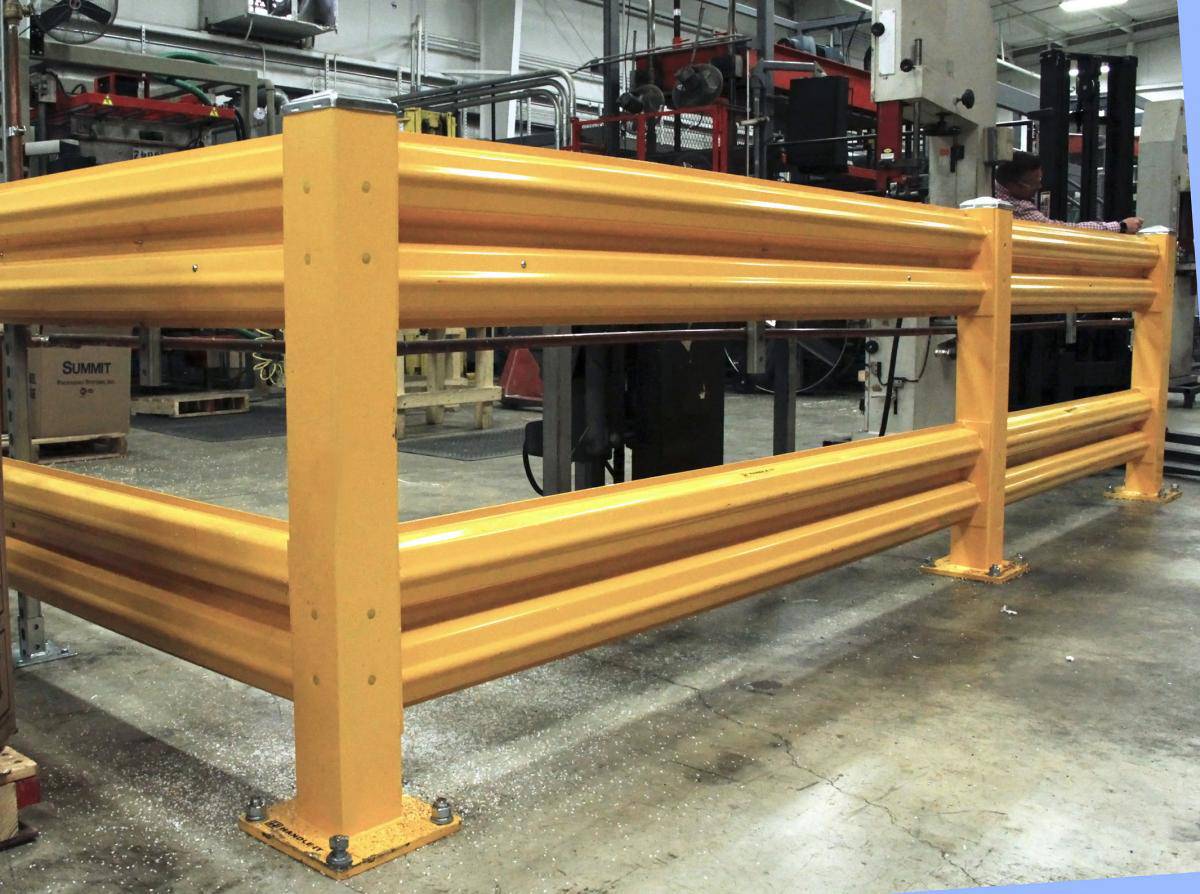

- To protect sensitive machines
- At the end of rack aisles
- Adjacent to conveyor lines
- Around mezzanines
|
Handle-It Guard Rail Dimensions
|
||||
|
Rail Length
|
Center to Center of Columns
|
Outside to Outside of Base Plates
|
||
|
GR-10
|
10 Ft. Rail
|
115"
|
120"
|
130"
|
|
GR-9
|
9 Ft. Rail
|
103"
|
108"
|
118"
|
|
GR-8
|
8 Ft. Rail
|
91" |
96"
|
106" |
|
GR-7
|
7 Ft. Rail
|
79" | 84" |
94"
|
|
GR-6
|
6 Ft. Rail
|
67" |
72"
|
82" |
|
GR-5
|
5 Ft. Rail
|
55" | 60" | 70" |
|
GR-4
|
4 Ft. Rail
|
43" | 48" | 58" |
|
GR-3
|
3 Ft. Rail
|
31" | 36" |
46" |
|
GR-2
|
2 Ft. Rail | 19" | 24" | 34" |
|
Column Height
|
|
|
Single Rail Post
|
18.5"
|
|
Double Rail Post
|
43"
|
| Capacity | 10,000 lbs. at 4 mph |
| Material | 10-gauge steel |
| Model No. | GR-4-A2 |
| Finish | Handle-It Yellow high visibility powder coat |
