Heavy Duty Warehouse Double Guard Rail Starter Unit

In stock
SKU: GR-2-S2
Regular price $514.00
Est. Ship Date: Thursday, April 18th

  • Rated to withstand 10,000 lbs at 4 mph
  • 2 Rails & 2 Posts in Starter Unit
  • All Hardware for Install Included

Length
Trusted By

Handle-It® Heavy Duty Double Guard Rail

Handle-It Heavy Duty Warehouse Guard Rail Starter Unit comes with two guard rails and two post columns, Safety Barriers, and Forklift Guardrails tested to withstand 10,000 lbs. at 4 mph. Quick Ship stock in Milwaukee WI warehouse. Available 2 - 10 ft. Long x 43" Tall

To make a line of guard rail first select a Starter Unit, and then select the size and number of Add-On Units needed.

Lift Out Adapters are sold separately.

Adjustable Pedestrian Gate Specs - Purchase gate here

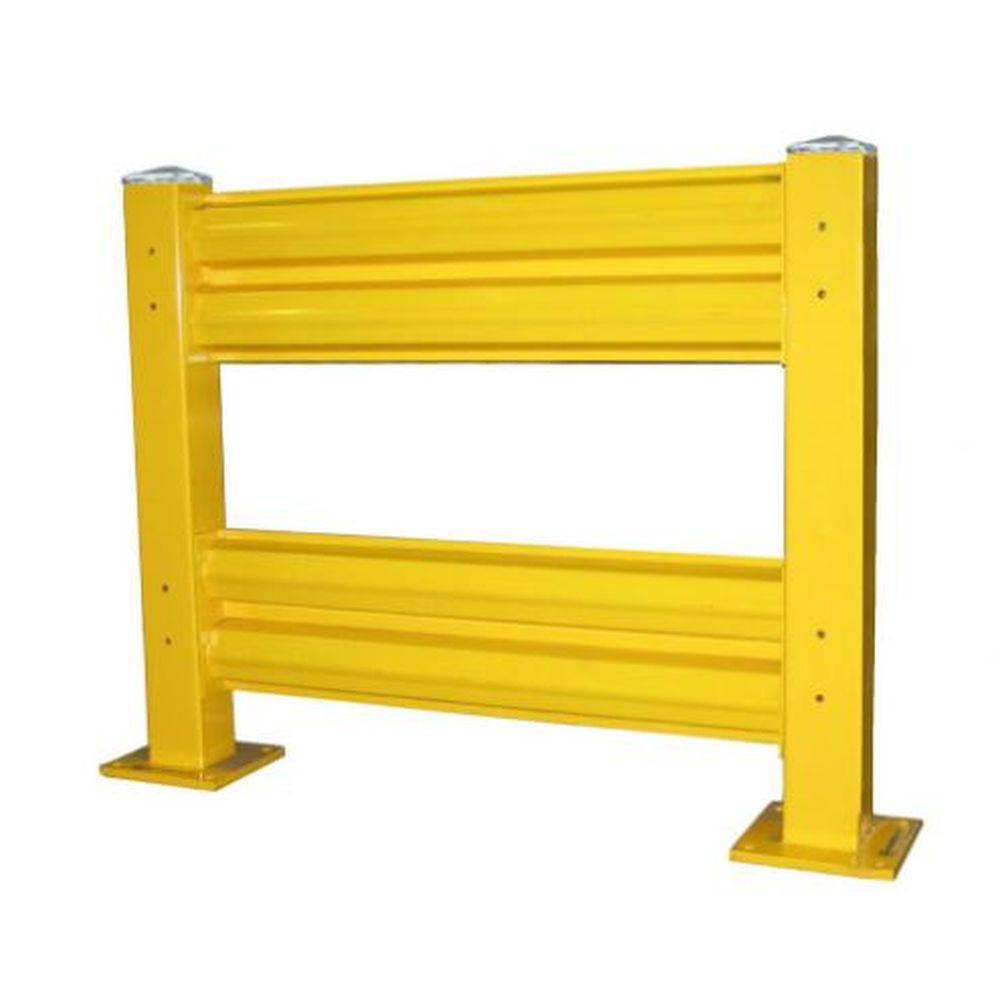

Starter Kits Include

  • (2) 43" Tall double rail posts
  • (2) Heavy-duty rails (2' - 10' L)
  • All hardware for install

Features and Benefits

  • Tested to withstand 10,000 lbs. at 4 mph
  • Powder-coated Handle-It yellow yields high visibility in a durable finish
  • Columns are 4.75" x 4.75" steel square tube mounted on a 10" x 10" base plate
  • Our product design allows for faster installation cutting down on labor costs.
  • Drilled & pretapped posts have mounting on all four sides
  • Custom Sizes available for your special projects
  • All anchors and hardware/caps included
  • In Stock, items can ship within 24 hours.

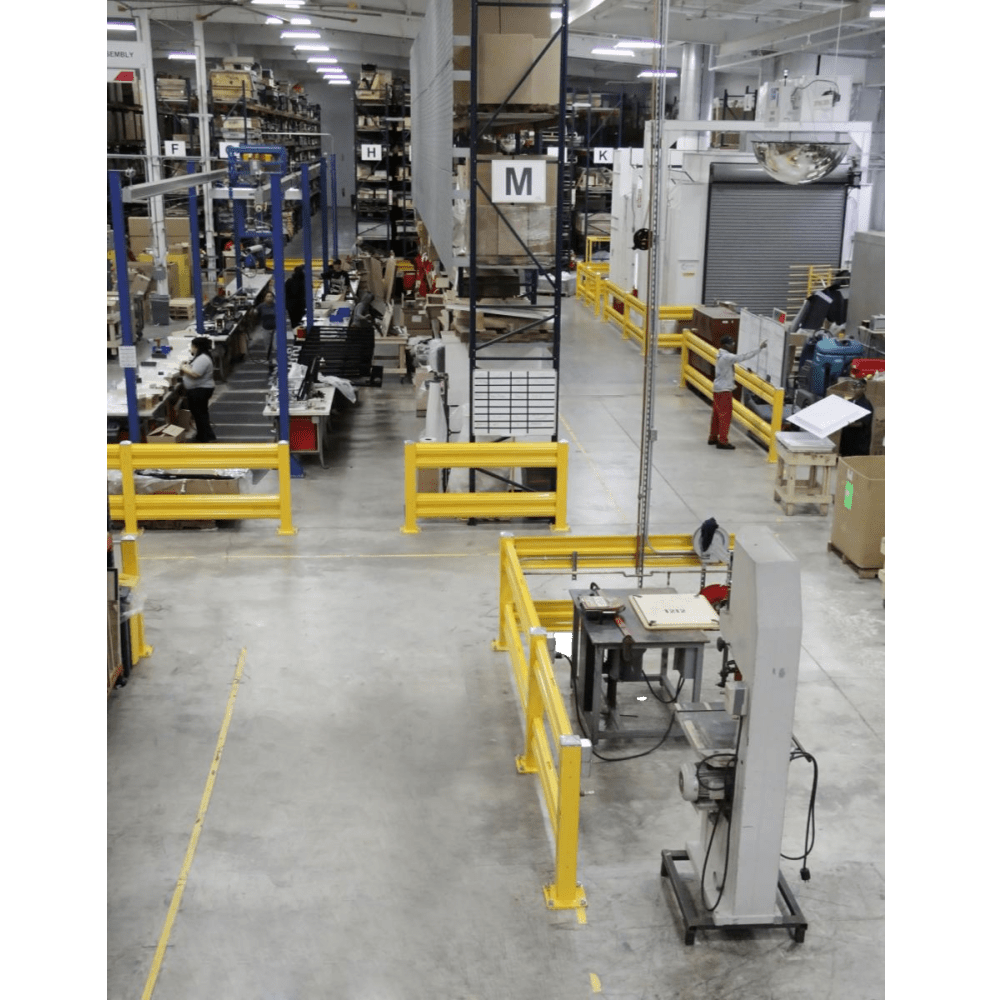

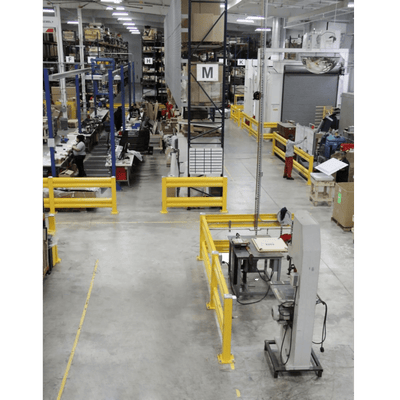

Areas for Install:

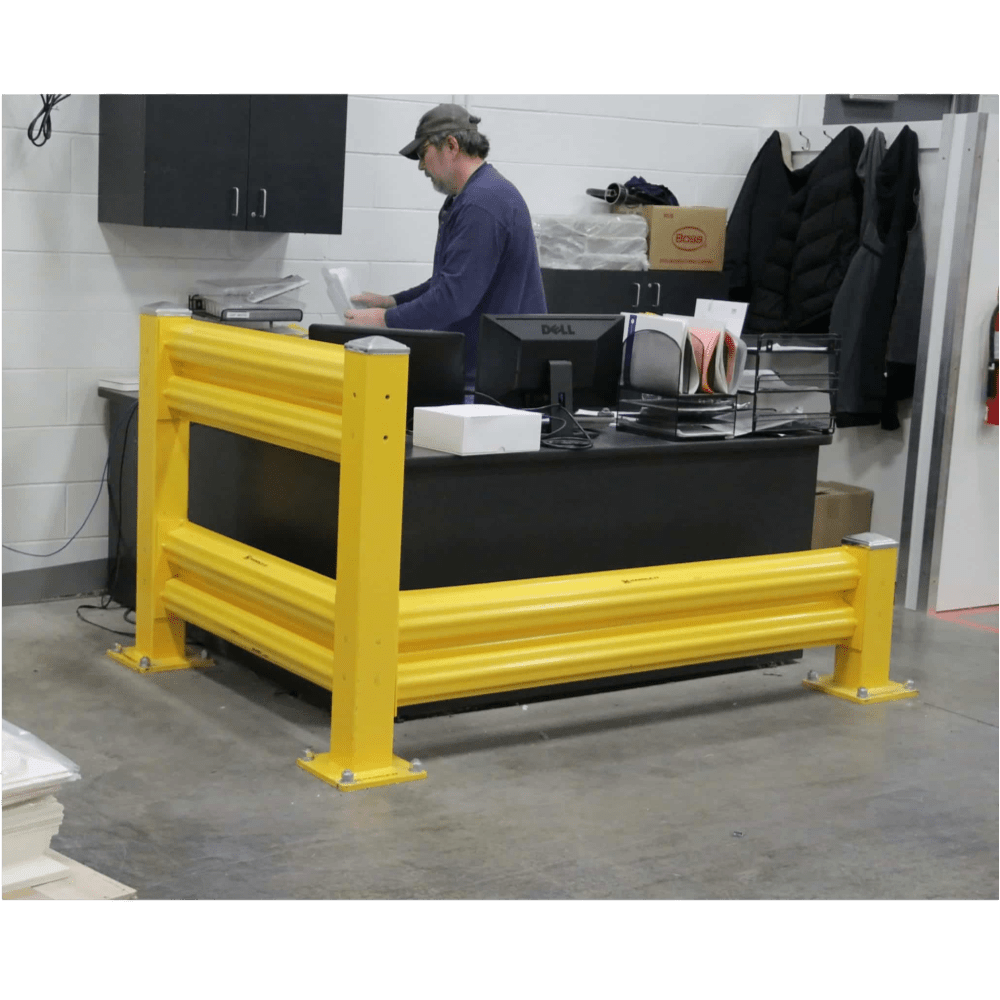

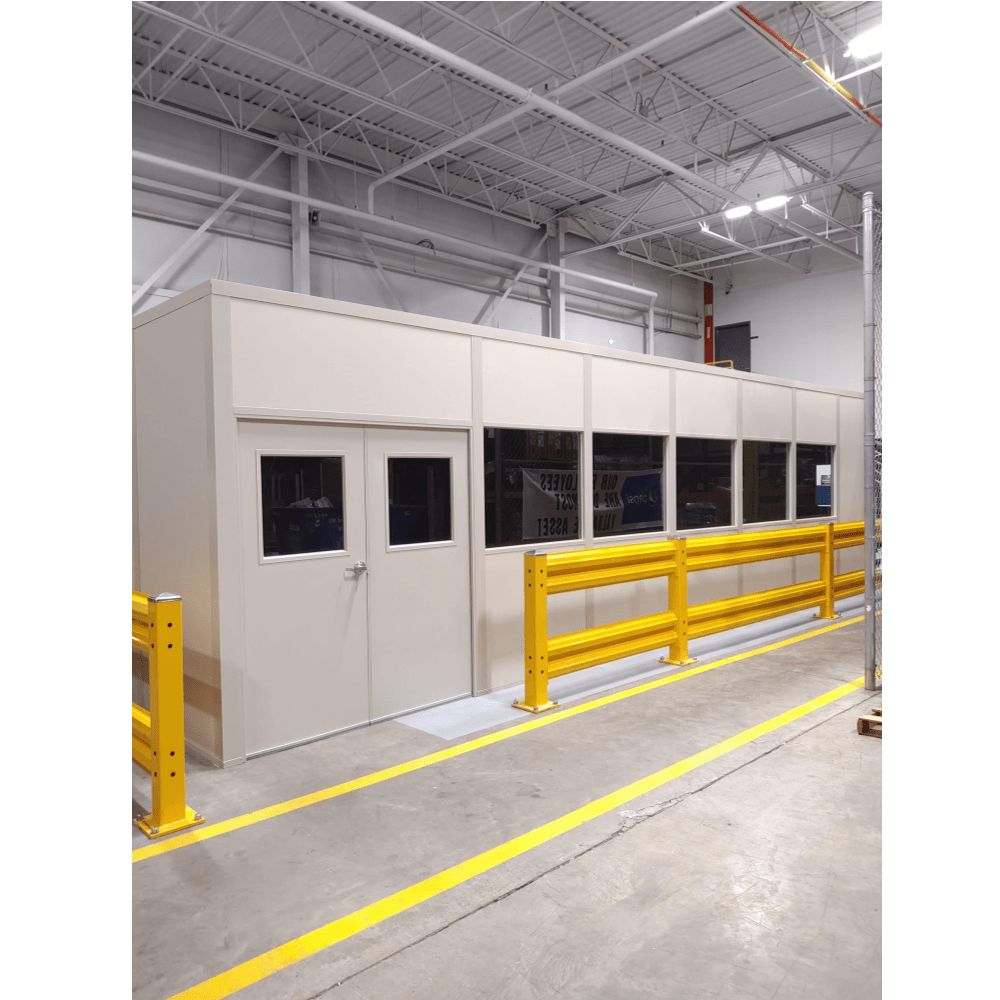

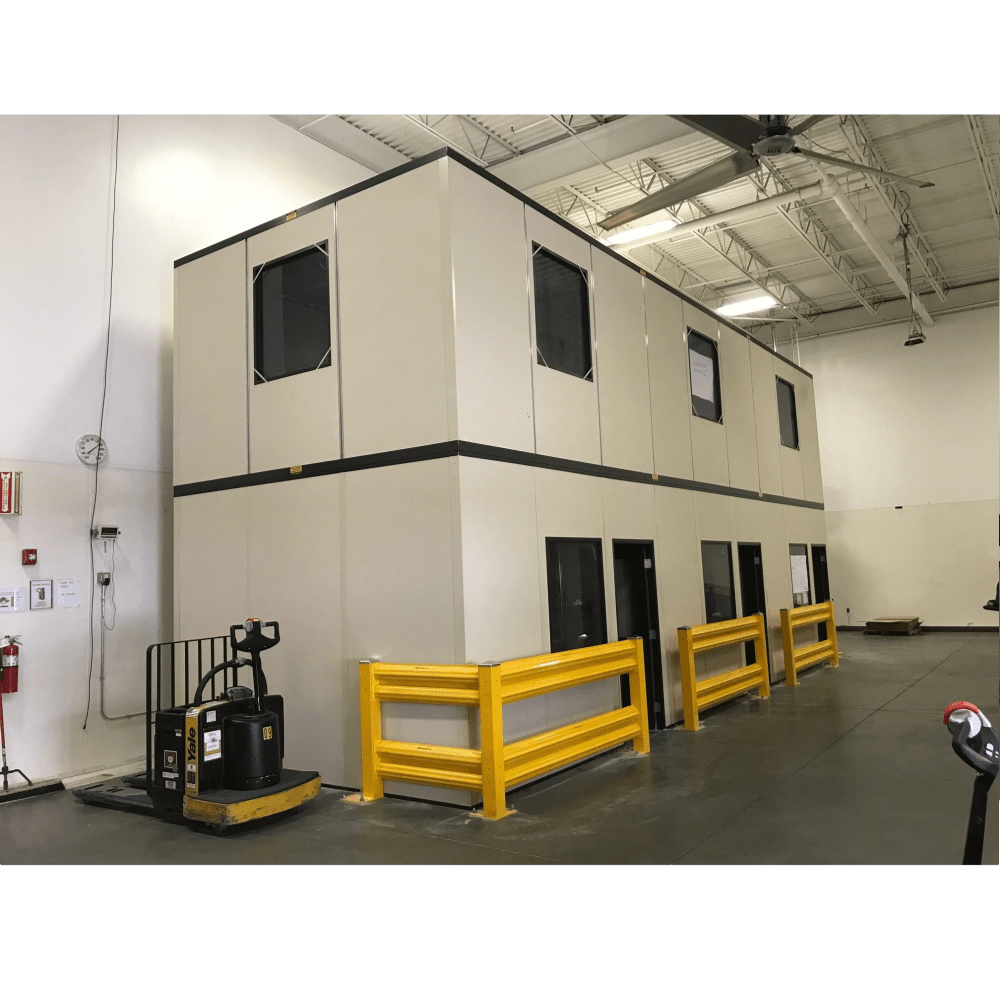

  • Around inplant offices and workstations
  • Along pedestrian walkways.
  • To protect sensitive machines
  • At the end of rack aisles
  • Adjacent to conveyor lines
  • Around mezzanines



Handle-It Guard Rail Dimensions
Rail Length
Center to Center of Columns
Outside to Outside of Base Plates
10 Ft. Rail
115"
120"
130"
9 Ft. Rail
103"
108"
118"
8 Ft. Rail
91"
96"
106"
7 Ft. Rail
79" 84"
94"
6 Ft. Rail
67"
72"
82"
5 Ft. Rail
55" 60" 70"
4 Ft. Rail
43" 48" 58"
3 Ft. Rail
31" 36"
46"
2 Ft. Rail 19" 24" 34"
Column Height
Single Rail Post
18.5"
Double Rail Post
43"
Capacity 10,000 lbs. at 4 mph
Material 10-gauge steel
Model No. GR-4-S2
Finish Handle-It Yellow high visibility powder coat
