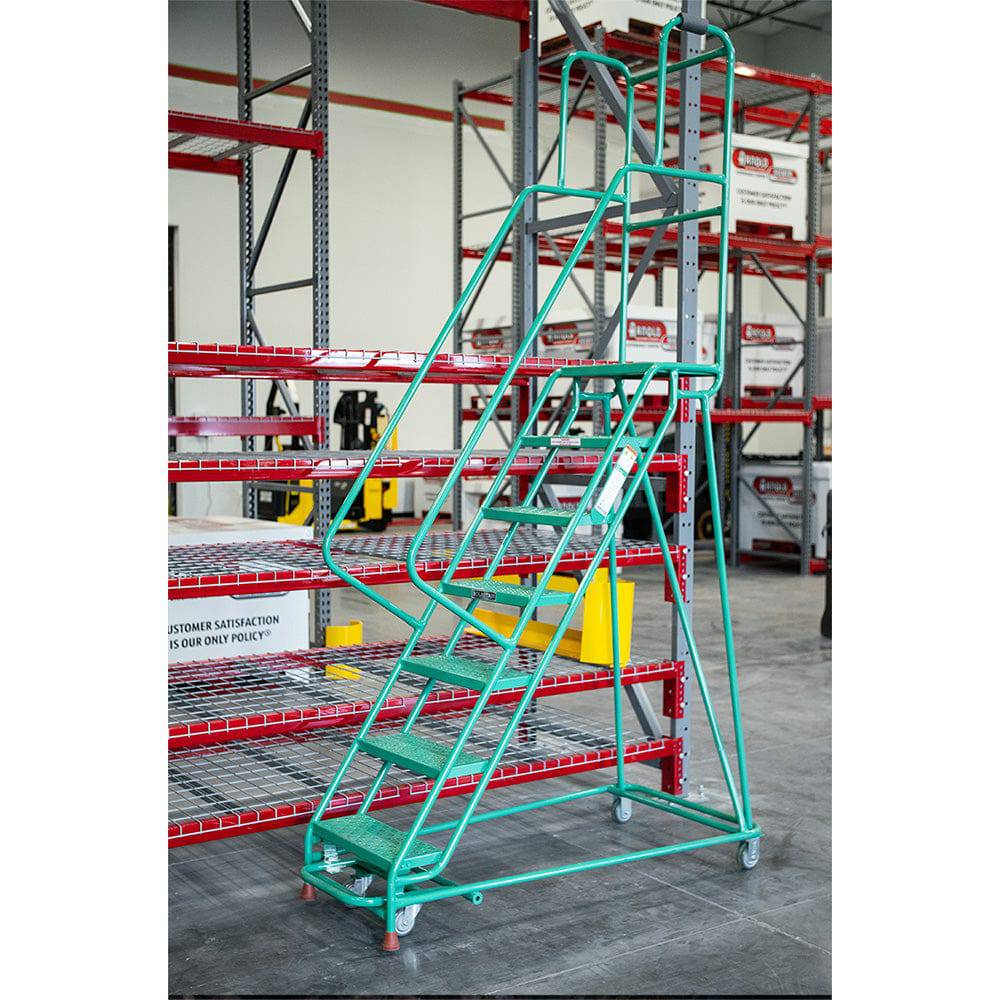

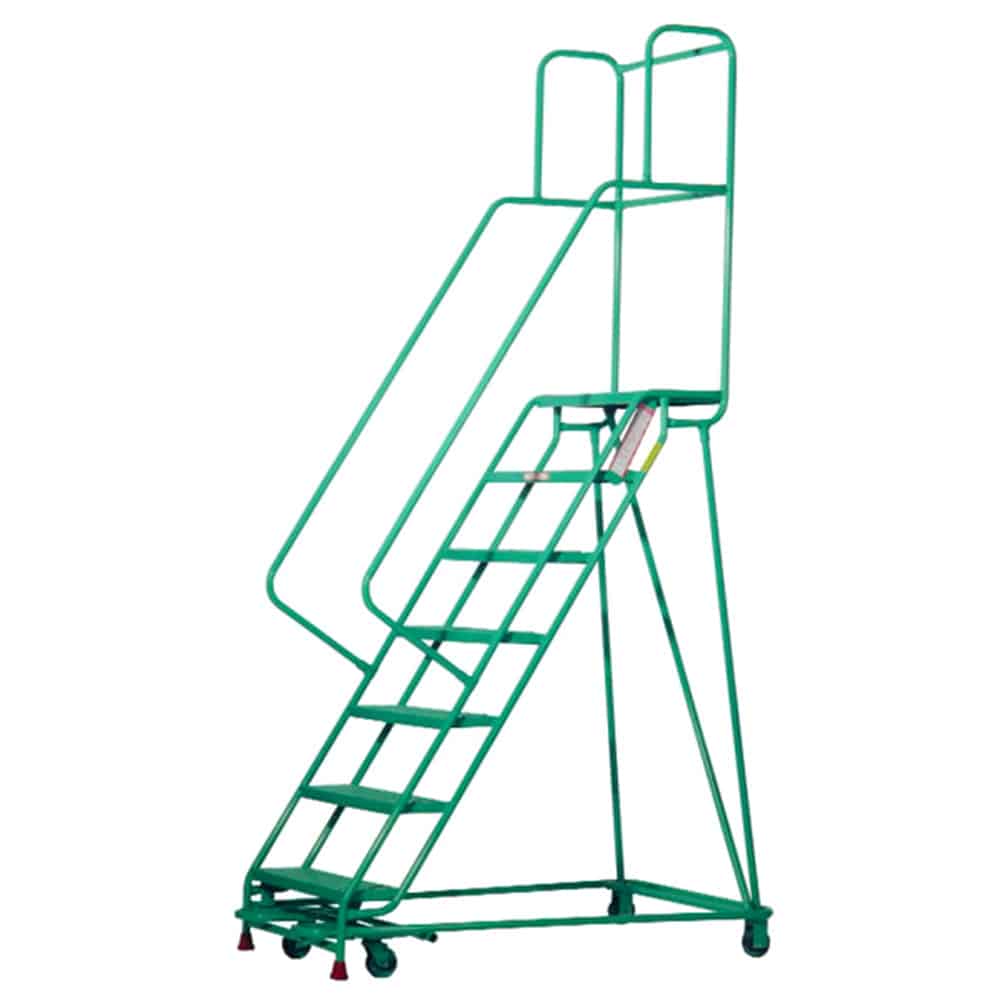

Standard Rolastair Rolling Ladder - 20in Top Width
The ultimate rolling ladder in safety, appearance & construction.
Whether your application calls for work with racks, machinery, or other materials and equipment, you cannot go wrong with the Standard Rolastair Rolling Ladder.
Our flagship design moves toward your project on (4) heavy-duty casters, to provide safe and convenient access onsite. While at the top of the ladder stand, personnel are presented with a comfortable workspace that is guarded by strong steel hand rail for safety.
Tread Styles:
- Traction Tread (Standard on RolaStair) - Provides greater non-slip protection than diamond plate.
- Diamond plate (Standard on Super Duty RolaStair) - Provides anti-slip protection through use of raised diamond-shaped ribs on a fully closed step surface.
- Safety Grating - Provides maximum non-skid protection in wet and/or dry conditions.
Standard Features
- 1" dia. steel tube construction ruggedly braced and reinforced
- Standard 12" deep top platform
- Solid mig-welded construction
- BIG non-skid, non-marking shoes
- Stepjack Floor Locking device
- OSHA Safety green enamel finish
- 42" tall guardrails on 6-step and larger
- Meets CAL/OSHA requirements
- Meets Federal OSHA/ANSI requirements
- 350 lb. Capacity
- Top Platform Heights from 12" to 85-1/2"
Optional Features
- Guard chain with snap for entry-exit on any side of platform
- Fold down shelves
- Custom handrail arrangement or height
- Extra deep platform in multiples of 12"
- Special paint colors
- Hot dip galvanized finish
1, 2, 3 Steps No Handrail
No Handrails, attractive and very handy in the office, library vault, stockroom, machine shop, etc. All models equipped with four each 2" dia. Spring loaded casters and four large, non-skid rubber shoes to grip the floor when in use.
Steps | Part Number | Platform Height | Top Width | Overall Height | Base Dimensions | Weight |
---|---|---|---|---|---|---|
1 | 20-1 26-1 |
12" 12" |
20" 26" |
12" 12" |
20"W x 16"D 26"W x 16"D |
15 lbs. 20 lbs. |
2 | 20-2 26-2 |
19" 19" |
20" 26" |
19" 19" |
21"W x 21"D 27"W x 21"D |
22 lbs. 28 lbs. |
3 | 20-3 26-3 |
28 1/2" 28 1/2" |
20" 26" |
28 1/2" 28 1/2" |
22"W x 29"D 28"W x 29"D |
31 lbs. 35 lbs. |
2-5 Steps w/Handrail
2 step has 22" tall handrails, 3-5 step has 32" tall handrails. All models equipped with four each 2" dia. Swivel spring-loaded casters and four large, non-skid rubber shoes to grip the floor when in use.
Steps | Part Number | Platform Height | Top Width | Overall Height | Base Dimensions | Weight |
---|---|---|---|---|---|---|
2 | 20H2 26H2 |
19" 19" |
20" 26" |
41" 41" |
21"W x 21"D 27"W x 21"D |
32 lbs. 36 lbs. |
3 | 20H3 26H3 |
28-1/2" 28-1/2" |
20" 26" |
60 1/2" 60 1/2" |
22"W x 29"D 28"W x 29"D |
42 lbs. 46 lbs. |
4 | 20H4 26H4 |
38" 38" |
20" 26" |
70" 70" |
24"W x 35"D 30"W x 35"D |
50 lbs. 56 lbs. |
5 | 20H5 26H5 |
47 1/2" 47 1/2" |
20" 26" |
79-1/2" 79-1/2" |
25-1/2"W X 41-1/2"D 31-1/2"W X 41-1/2"D |
57 lbs. 66 lbs. |
6-9 Steps w/Handrail

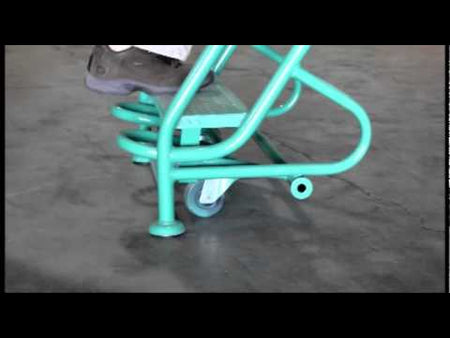

42" Tall guardrail around platform Stepjack foot controlled floor lock assembly assures dependable "stop and go" safety on all ladders in this group. All Stepjack mechanisms are equipped with two 3-1/2" swivel casters and two fixed casters. 6 Through 10-step models have two 3-1/2" rigid casters under the platform end.
Steps | Part Number | Platform Height | Top Width | Overall Height | Base Dimensions | Weight |
---|---|---|---|---|---|---|
6 | 20H6 26H6 |
57" 57" |
20" 26" |
99" 99" |
27"W x 48-1/2"D 33"W x 48-1/2"D |
81 lbs. 90 lbs. |
7 | 20H7 26H7 |
66 1/2" 66 1/2" |
20" 26" |
108 1/2" 108 1/2" |
28-1/2"W x 55-1/2"D 35"W x 55-1/2"D |
85 lbs. 106 lbs. |
8 | 26H8 | 76" | 26" | 118" | 36"W x 62"D | 116 lbs. |
9 | 26H9 | 85 1/2" | 26" | 127 1/2" | 36"W x 69"D | 126 lbs. |
