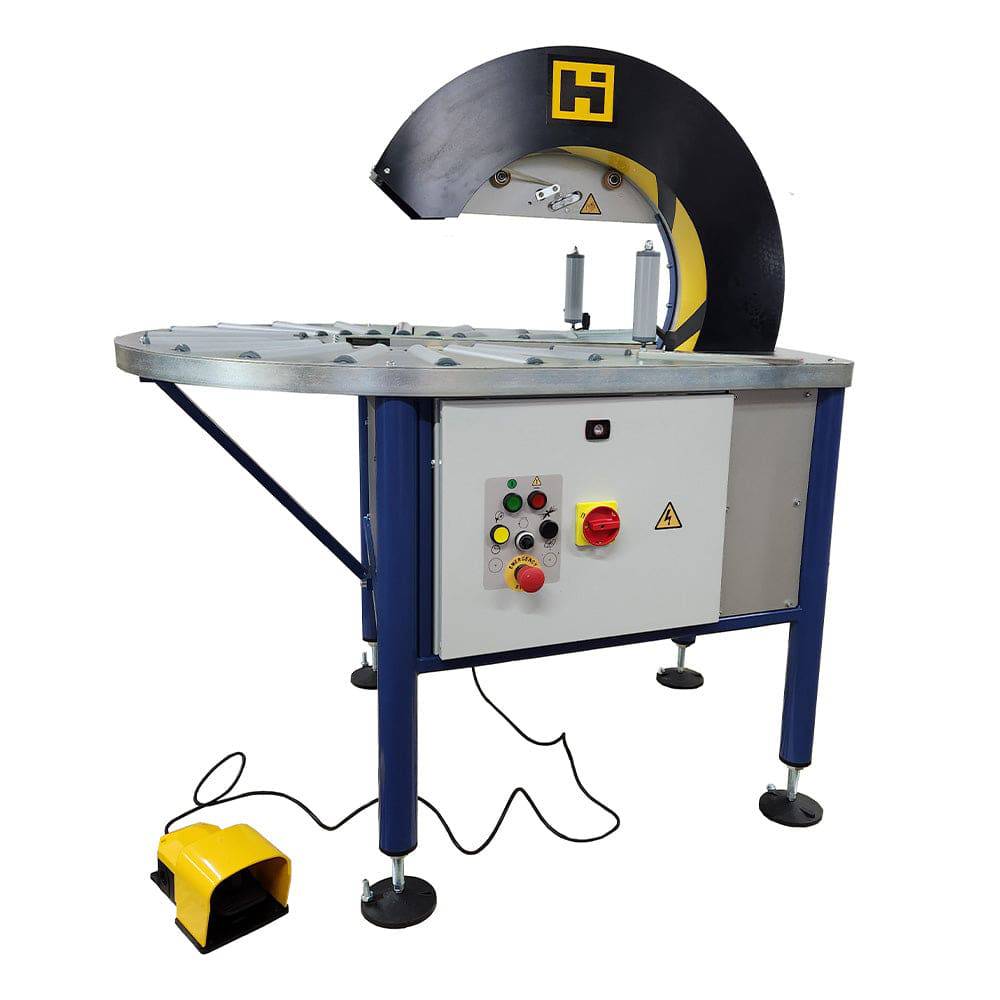

SA-50C Round/Coil Products Orbital Wrap Machine

Handle-It SA-50C Round/Coil Products Orbital Wrap Machine

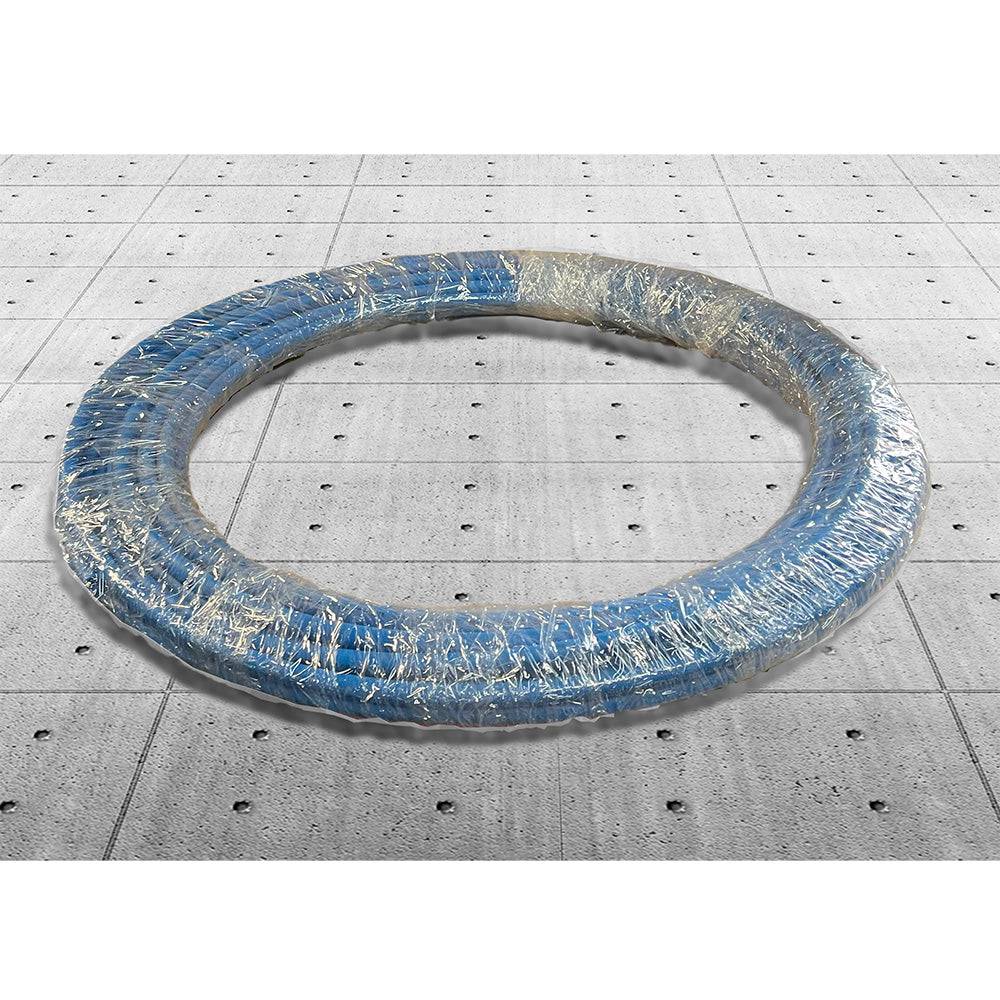

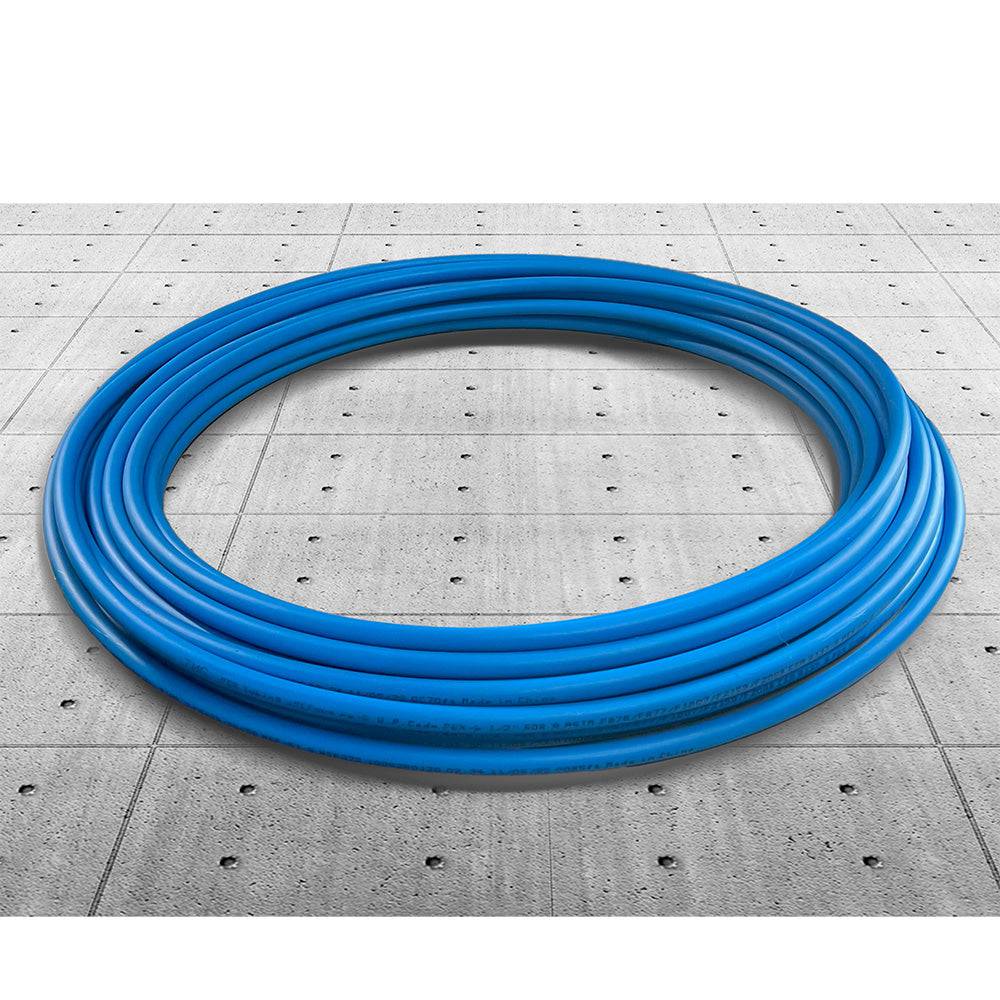

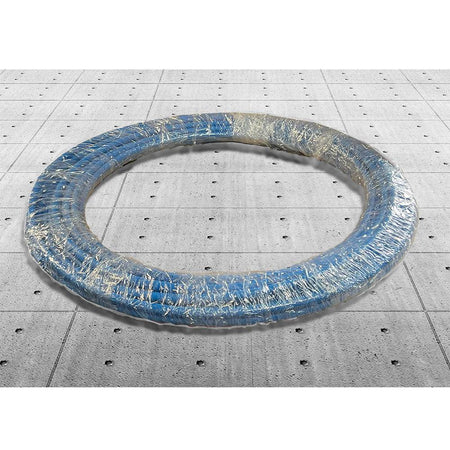

Semi-automatic orbital wrapper used for bundling product by manually feeding material through the machine and packaging with stretch film. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use. The model OWM-SA-50C is ideal for products without glass, like frames, structures, and windows. It can also be used for round or coiled products such as hose rolls, wire rolls, wheels, and rings.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Simple speed and film tension adjustment

110v standard plug with a foot pedal control

Performance & Specifications

Standard equipment:

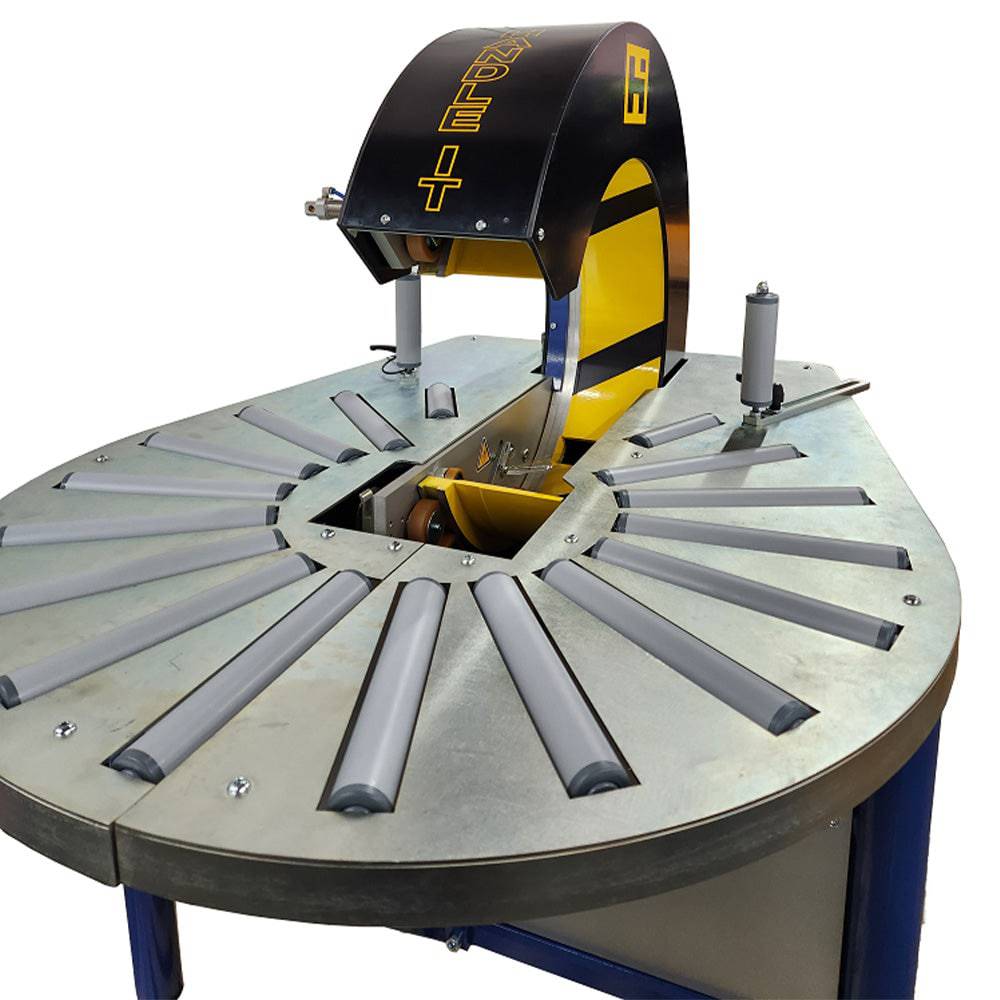

• Table with gravity rollers for easy feeding product through the ring.
• Double reel dispenser head; allows to wrap with two reels of stretchfilm for a reinforced wrapping and faster packaging or to wrap with one reel for a simple wrapping; ready to use reels of different width.
• Fast-changing reels without tools and with self-fixing system.
• Adjustable stretch film tension to fit it to the product.
• Stopping system to place the reel dispenser head in the exact position for reel changing.
• Adjustable rotation ring speed to control the stretch film overlap onto the product.
• Safety footswitch to start/finish the wrapping cycle.
• Ring driver system through toothed belt of low maintenance and wear.

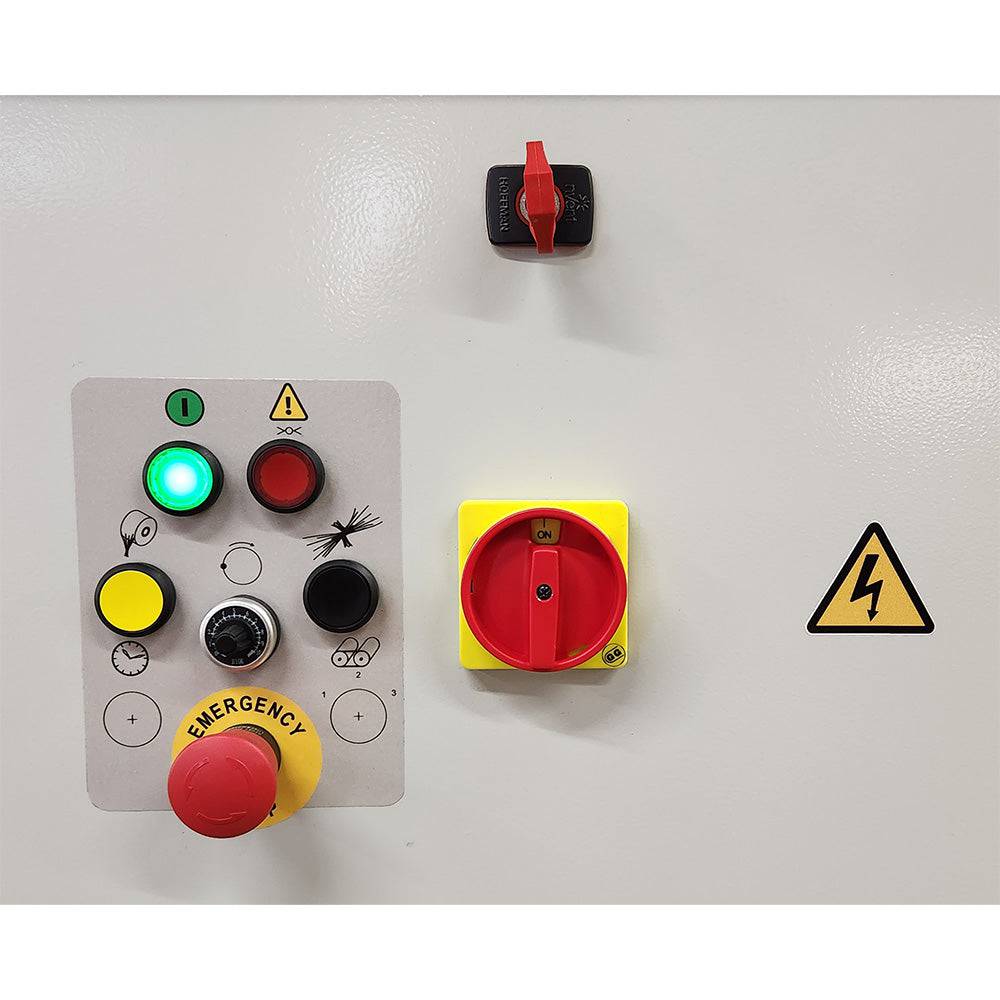

• Control panel and electrical box: Master switch, power/warning light, reset button, speed controller, reel change & emergency stop.

Accessories(optional):

• Table with multidirectional gravity balls for easy feeding product through the ring.
• Table with driven rollers for automatic product rotation (for round products only).
• External table with driven rollers for automatic products rotation (for round products only) (up to d.71€³).
• Side vertical roller with manual fitting to guide the product.
• Horizontal external gravity rollers to wrap profiles.
• Wheels with brake.

Specifications

Product to wrap sizes:

• Minimum inner Ø 11.42€³.
• Minimum / Maximum outer Ø 14.75€³ / 37€³.
• Minimum inner 9.64x 9.64 mm.
• Minimum outer 13.5€³x13.5€³
• Maximum thickness 8.85€³.
• Minimum / Maximum weight 5 / 25 kg.

Electrical equipment:

• Power supply: 230V I.
• Engine: 0,36 Kw
• Manoeuvre: 24V c.c.
• Power consumption: 0,34 Kw
• Ring rotation speed adjustable up 50 rpm.
• Speed inverter: Fuji.
• Automat / PLC: Omron.
• Pneumatic pressure: 4 bars.
• Compressed air consumption: 6 liters/cycle.

Stretch film reel specifications:

• Width: 100 mm.
• Thickness: 17, 20, 23 or 30 microns.
• Ø external / internal: 120 / 38 mm.
