SA-250 Semi-Automatic Orbital Wrap Machine

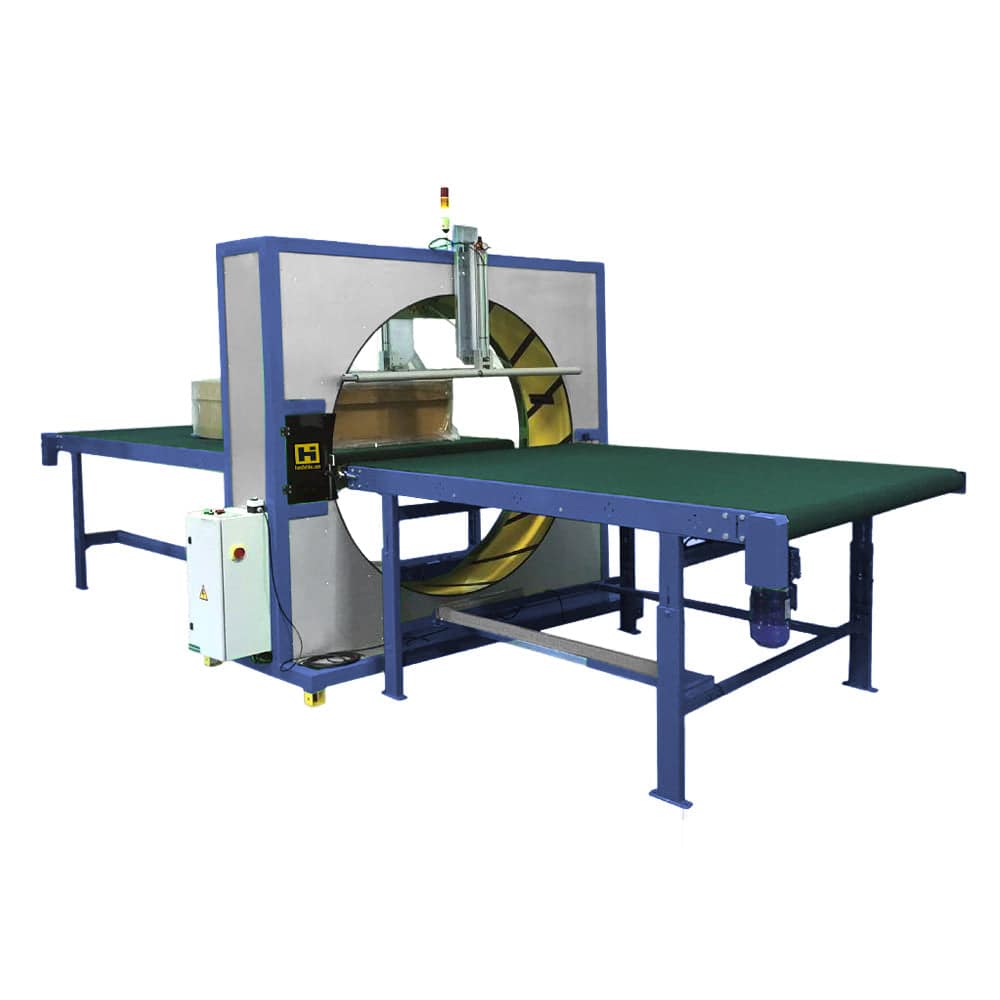

Handle-It SA-250 Semi-Automatic Orbital Wrap Machine

Semi-automatic orbital wrapper used for bundling products by manually feeding material through the machine and packaging with stretch film. The model OWM-SA-250 is designed for wrapping, grouping, and protecting bulky products. It can be used for furniture, doors, panels, wooden boards, cabinets, windows, and other large, bulky, or full pallet loads. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Integrated electrical cabinet with touchscreen controls

110v with a foot pedal control

Performance & Specifications

• 10" wide machine bundling film with 1.5" core
• Double reel dispenser head, faster cycle times
• Standard 55"w x 40" L entry and exit support rollers
• Control system includes:
  1. Automatic film cutting system
  2. Semi-automatic stretchfilm threading for reel changing.
  3. Stopping system to place the reel dispenser head in the exact position for reel changing.
  4. Adjustable extra wrapping laps in both ends of the product for a higher protection.
  5. Ring speed controller (driver included) to adjust the stretchfilm overlap onto the product.
  6. Touch colour screen to programme and to adjust the machine to the specifications of the product to be wrapped (extra wrapping laps in the ends of the product, stretchfilm threading, 6 wrapping programmes, warning messages, reels change, only ends wrapping, 6 languages programmes).
• Fast reel changing; no tools required
• Adjustable film tension with consistent force
• Safety features built into the cutting system and while changing reels
• Foot switch control and main control panel with 3 wrapping modes
• Rotation speed 5-45 RPM
• 90 psi air required
• 110v single phase
• Machine size 102" L x 115" W x 103" H (basic configuration including entry/exit rollers)

Product to wrap sizes: Maximum/minimum length: no limit / 23" when the infeed conveyor enters the loop or 15.75" with short products bridge.
