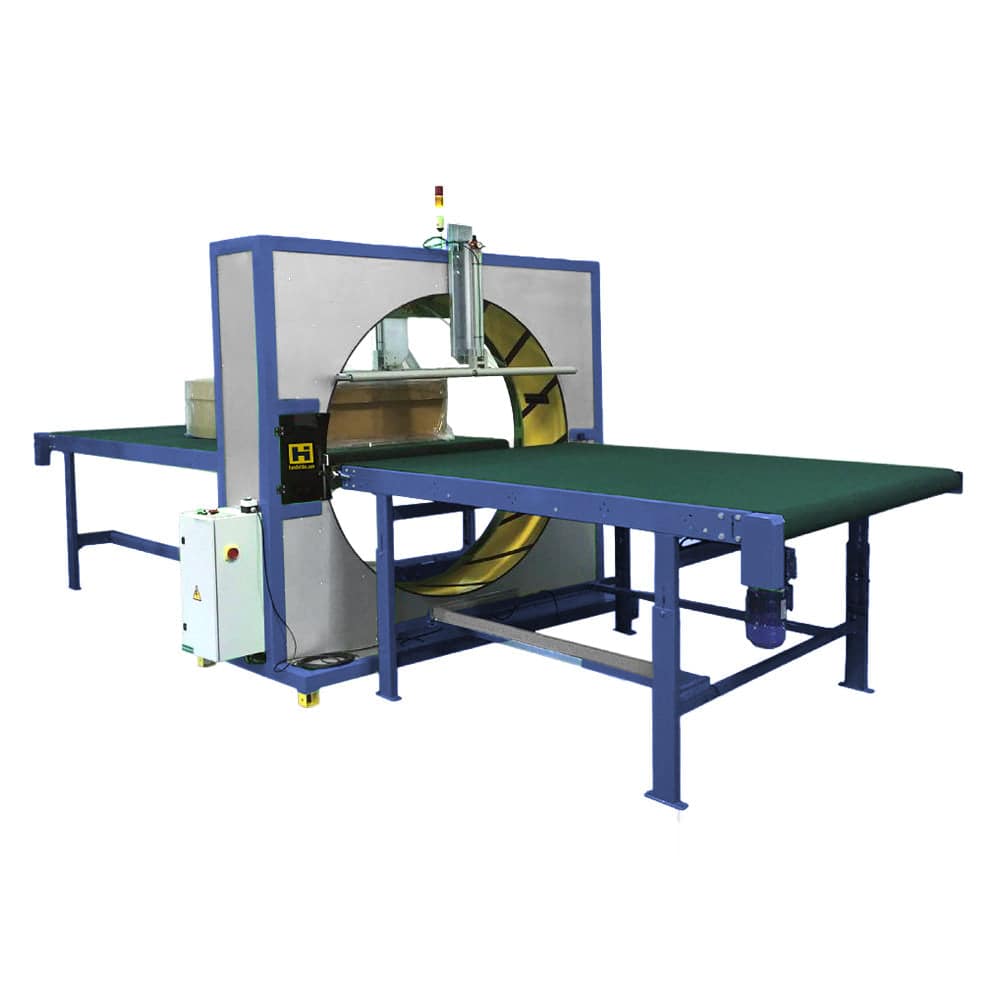

SA-200 Semi-Automatic Orbital Wrap Machine

Handle-It SA-200 Semi-Automatic Orbital Wrap Machine

Semi-automatic orbital wrapper used for bundling products by manually feeding material through the machine and packaging with stretch film. The model OWM-SA-200 is designed for wrapping, grouping, and protecting bulky products. It can be used for furniture, doors, panels, wooden boards, cabinets, windows, and other large, bulky, or full pallet loads. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Integrated electrical cabinet with touchscreen controls

110v with a foot pedal control

Performance & Specifications

• 10" wide machine bundling film with 1.5" core
• Double reel dispenser head, faster cycle times
• Control system includes:
  1. Automatic film cutting system
  2. Semi-automatic stretch film threading for reel changing.
  3. Stopping system to place the reel dispenser head in the exact position for reel changing.
  4. Adjustable extra wrapping laps in both ends of the product for a higher protection.
  5. Ring speed controller (driver included) to adjust the stretch film overlap onto the product.
  6. Touch color screen to program and to adjust the machine to the specifications of the product to be wrapped (extra wrapping laps in the ends of the product, stretch film threading, 6 wrapping programs, warning messages, reels change, only ends wrapping, 6 languages programs).
• Fast reel changing; no tools required
• Adjustable film tension with consistent force
• Safety features built into the cutting system and while changing reels
• Foot switch control and main control panel with 3 wrapping modes
• Rotation speed 5-55 RPM
• 90 psi air required
• 110v single phase
• Machine size 102"L x 115" W x 103" H (basic configuration including entry/exit rollers)

Accessories

• Gravity rollers conveyor + tilter system to place product from vertical to horizontal W 47" x L 60"
• Table with gravity balls (multidirectional).
• Table with 3 gravity rollers in triangle to wrap round products.
• Rollers side guide with manual fitting.
• Short products bridge < 23".
• Top presser with manual fitting.
• Manual bubble wrap floor or top dispenser (integrated on machine) for reel up to 47" width.
• Remote technical assistance (via Ethernet).

Product to wrap sizes: Maximum/minimum length: no limit / 23" when the infeed conveyor enters the loop or 15.75" with short products bridge.
