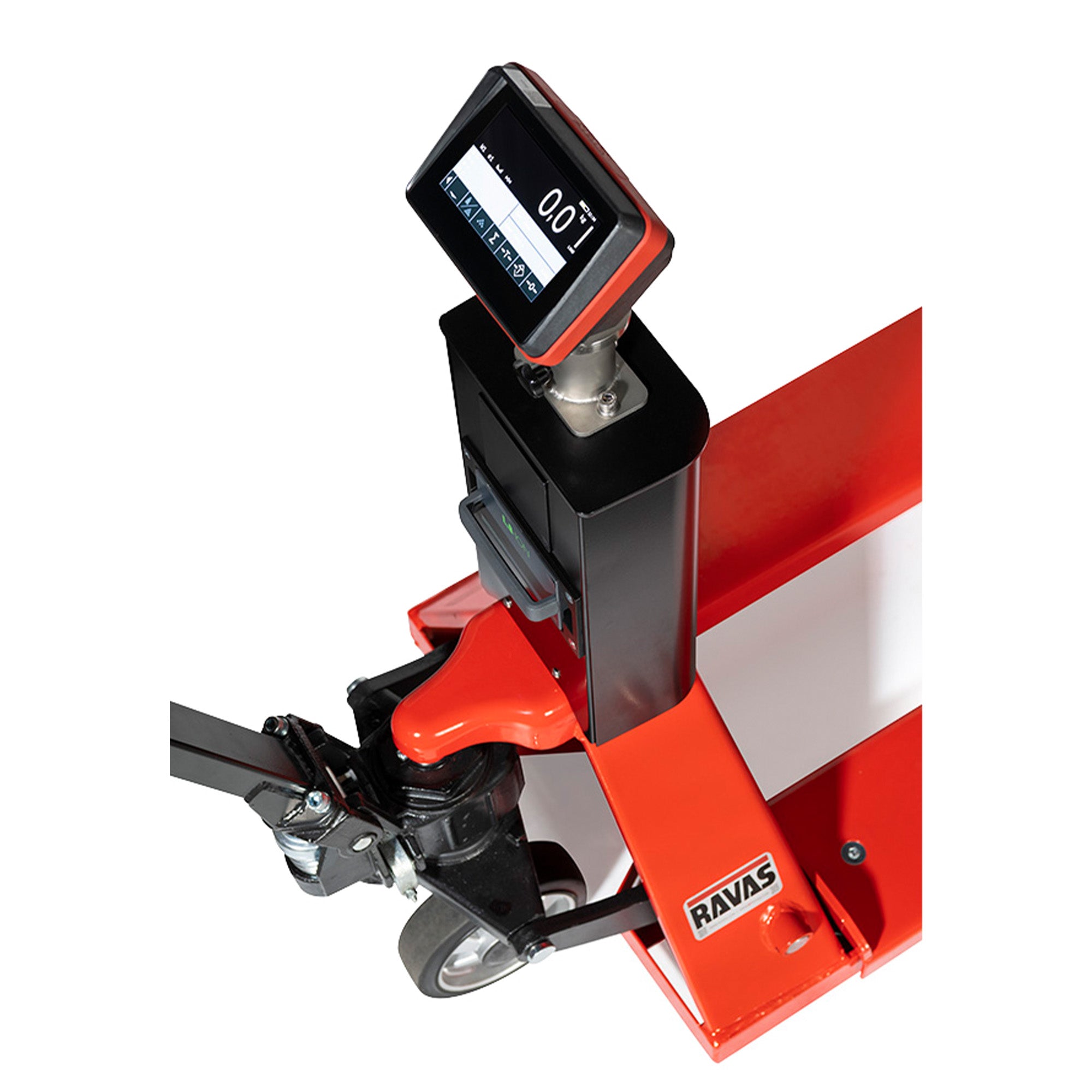

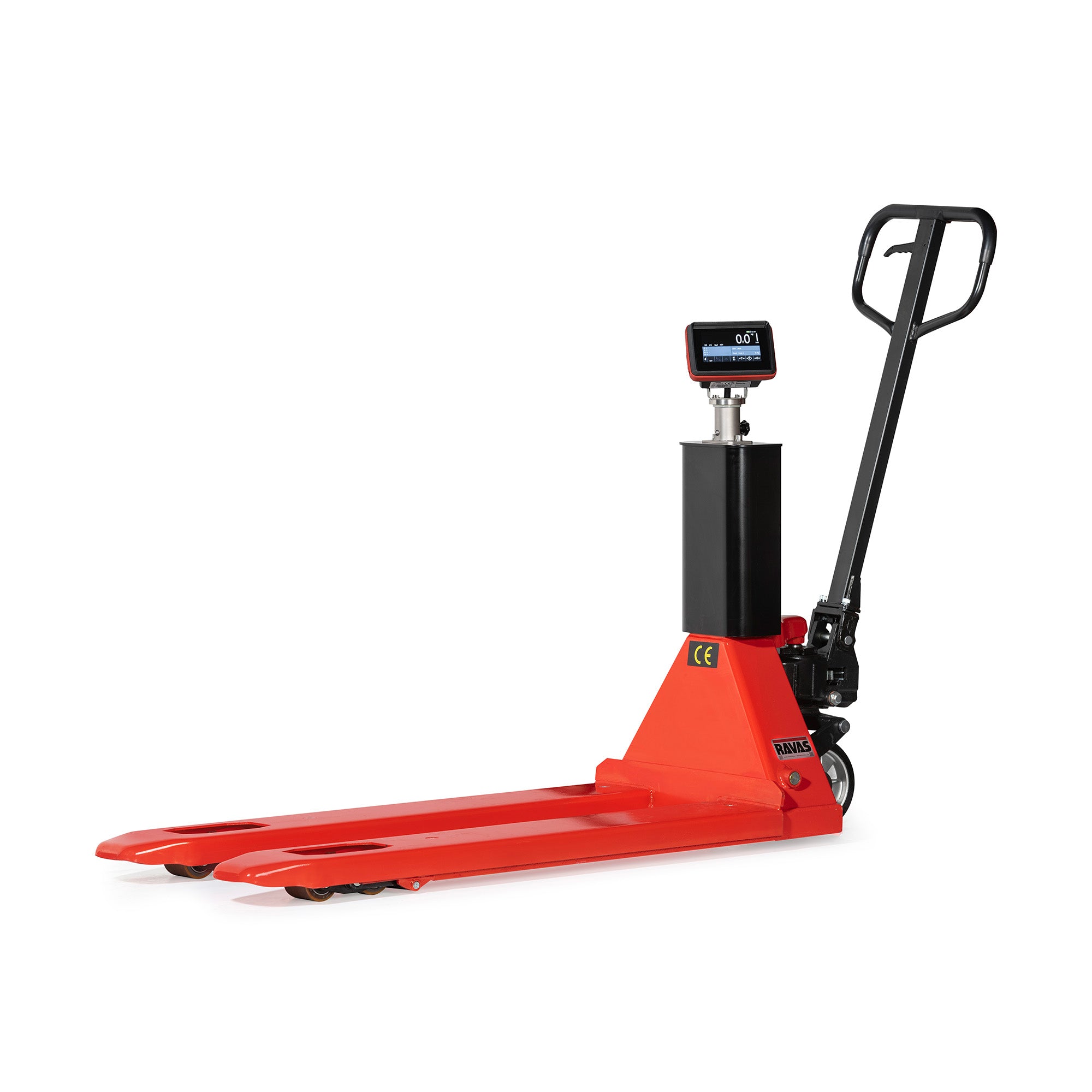

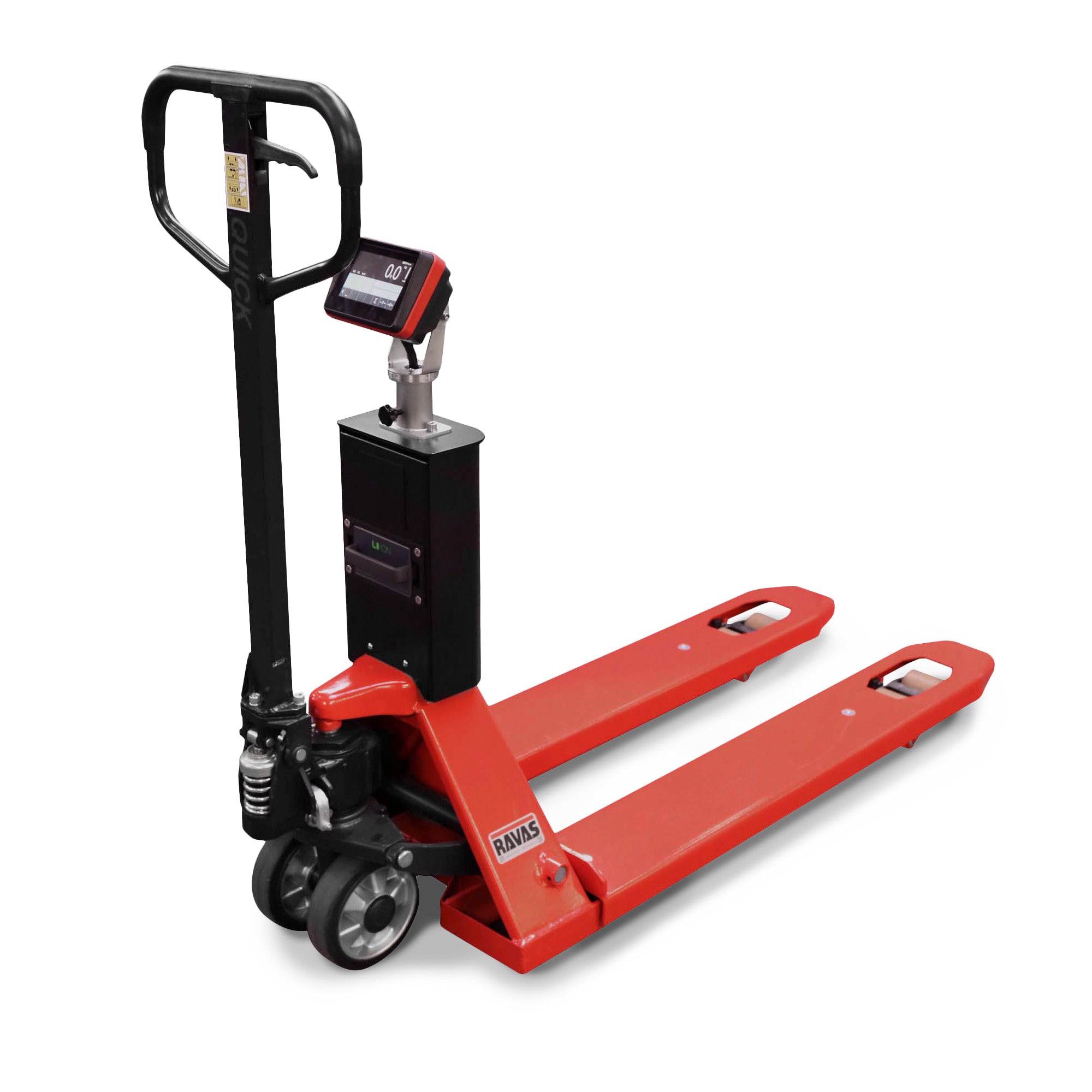

RAVAS-520 Hand Pallet Jack with Scale
The RAVAS-520 is a sophisticated tool that seamlessly integrates a high-precision weighing scale with the functionality of a pallet jack, designed to enhance efficiency in material handling and inventory management. This device excels in applications that require piece counting, dosing, batching, and other repetitive tasks, ensuring both the quantity and weight of items are accurately captured in a single operation.

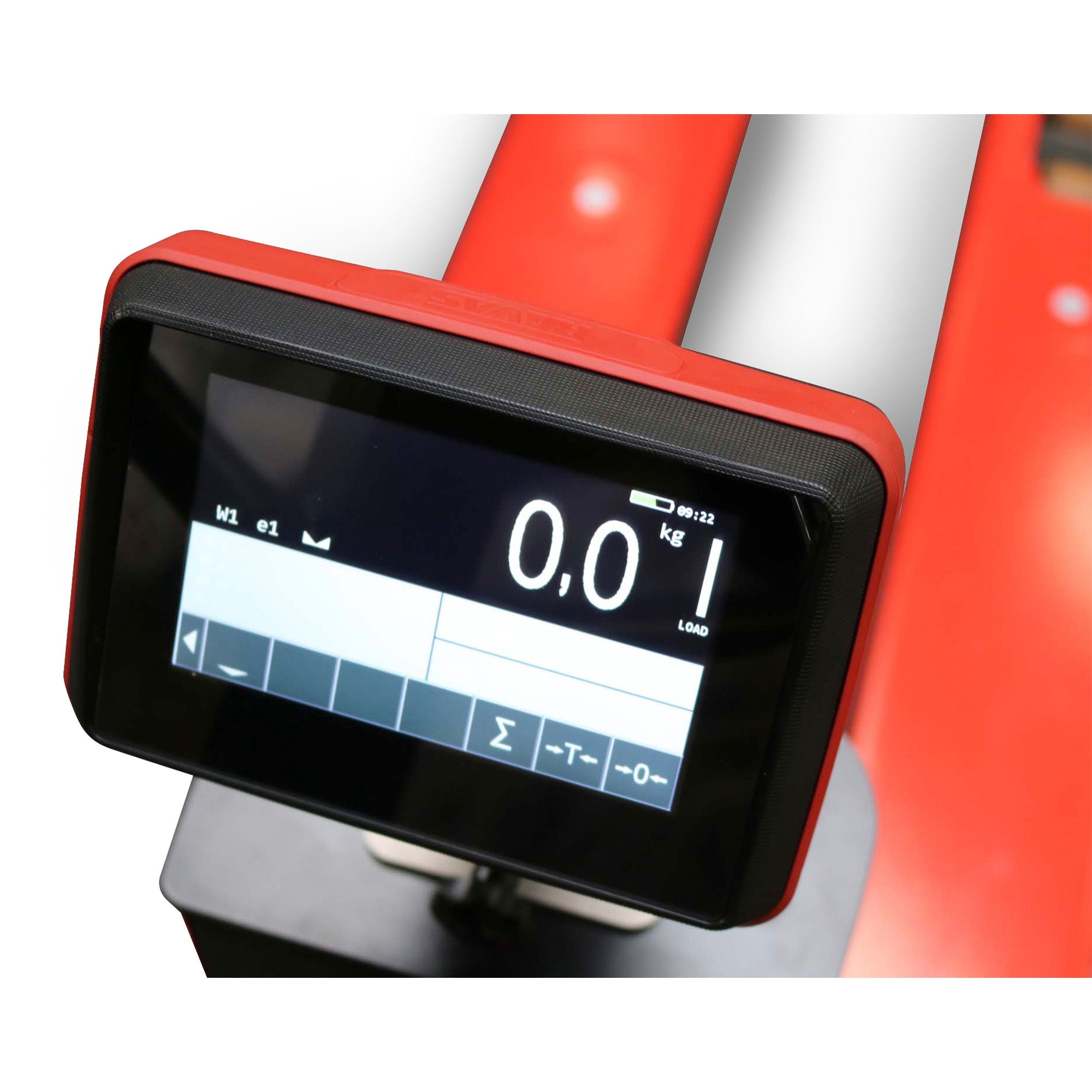

Featuring a 5-inch touch screen display with large, easy-to-read digits, the RAVAS-520 simplifies user interactions by only displaying active keys, thus enhancing user experience and reducing errors. Its advanced data management capabilities include a piece-counting program, customizable routines for specific customer needs, and multiple data transfer options such as RS232, USB, Bluetooth, and WiFi, catering to modern logistic needs.
As an NTEP-certified legal-for-trade device, the RAVAS-520 is ideal for businesses that require precise invoicing based on weight. It also supports a built-in printer to easily document weights, numerical IDs, date/time, and other relevant data, further streamlining the process of record-keeping and accountability in industrial settings.
| Weighing capacity | 5,000 lbs |
| Graduation multirange | 2 lbs - 0 to 3000 lbs, 5 lbs - 3,001 to 5,000 lbs |
| Display | Full-color 5” touch display with 0.98 inch high digits |
| Power supply | Li-ion battery pack 14.8V/5Ah, charger included |
| Functionality | Automatic and manual zero correction, gross/net weighing, tare memory for 10 values, ID-code entry for 4 ID-codes with 10 preset codes, 10 totalizing registers, onboard: RS232 port connection for the printer, USB output for data transfer, Bluetooth 4.0 for RAVAS WeightsApp, sleep modes for saving power, error message in display incl. logging |
| Options | Legal for Trade NTEP-certified version, available in stainless steel, thermal or matrix printer 12V, Bluetooth or WiFi data transfer, reference scale via RS232 (for more accurate piece counting), RDC (RAVAS Data Collector Software), RIS (RAVAS Integration Server). |
