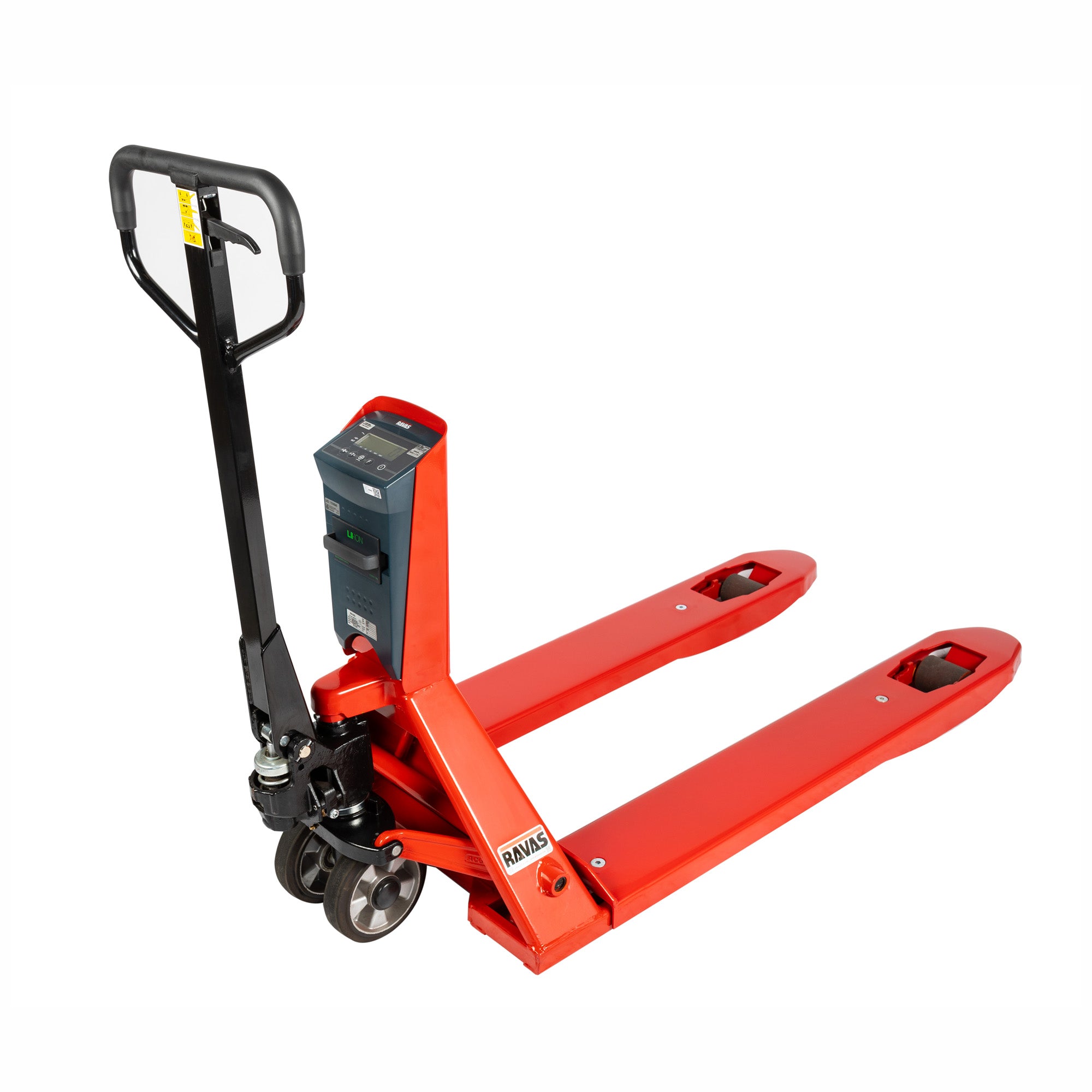

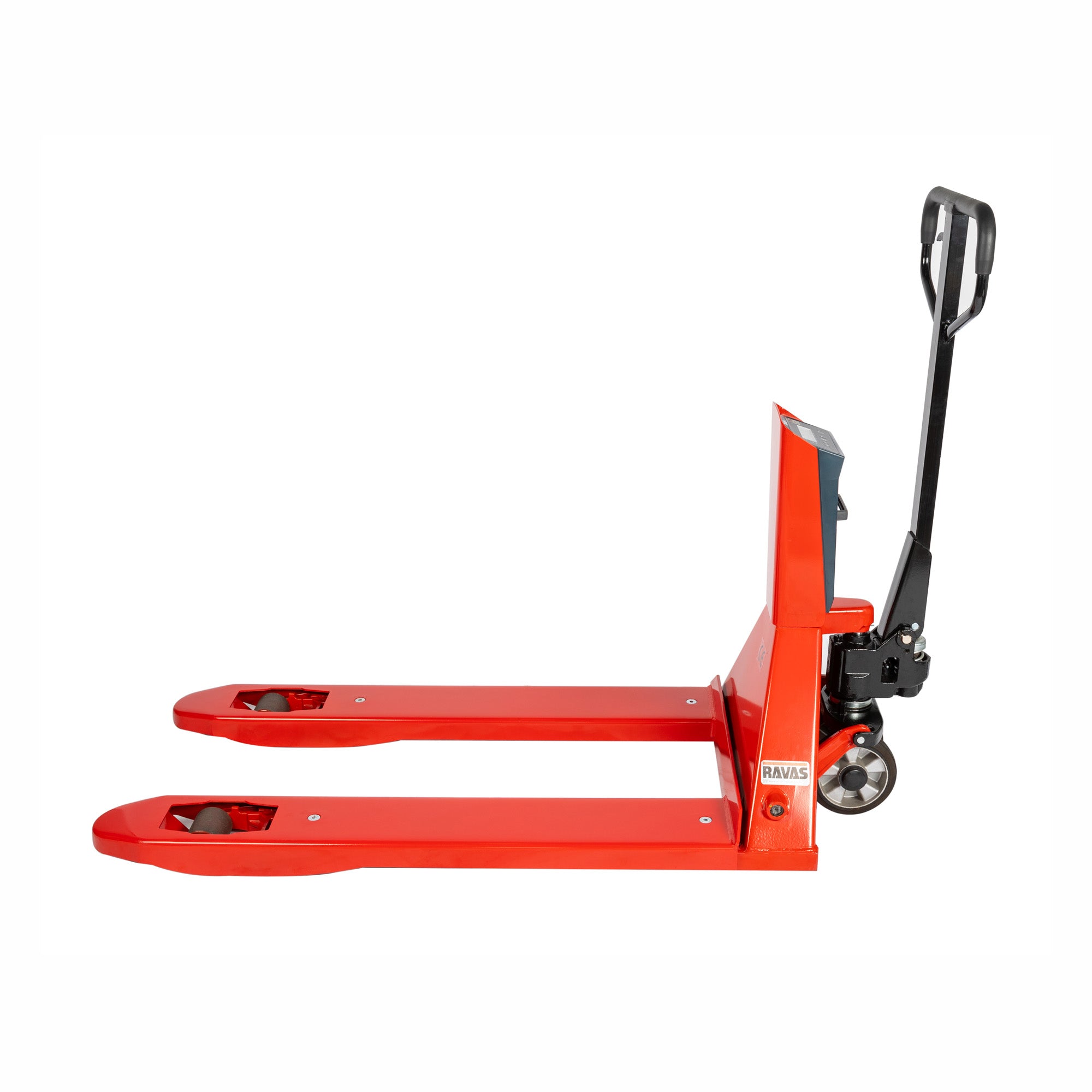

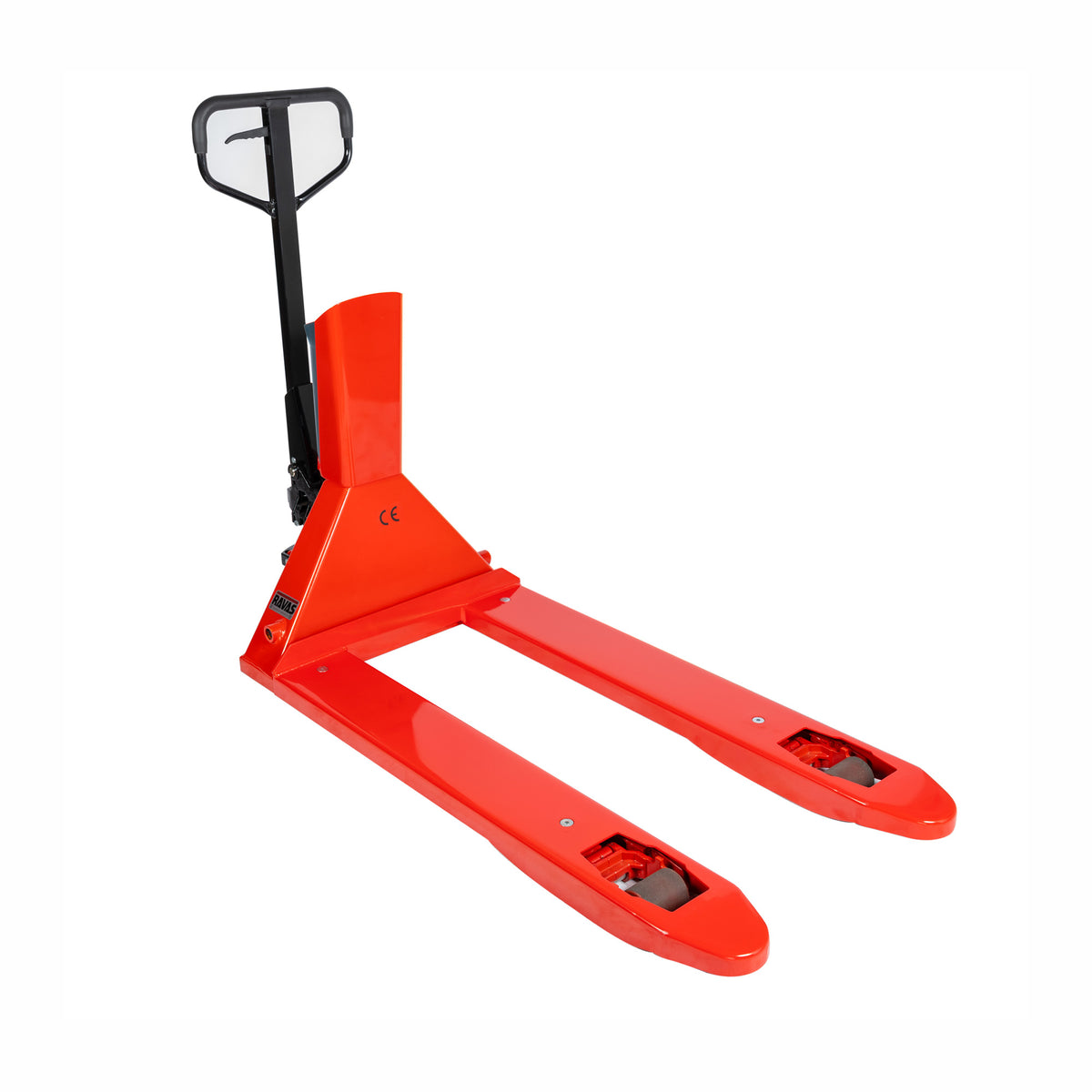

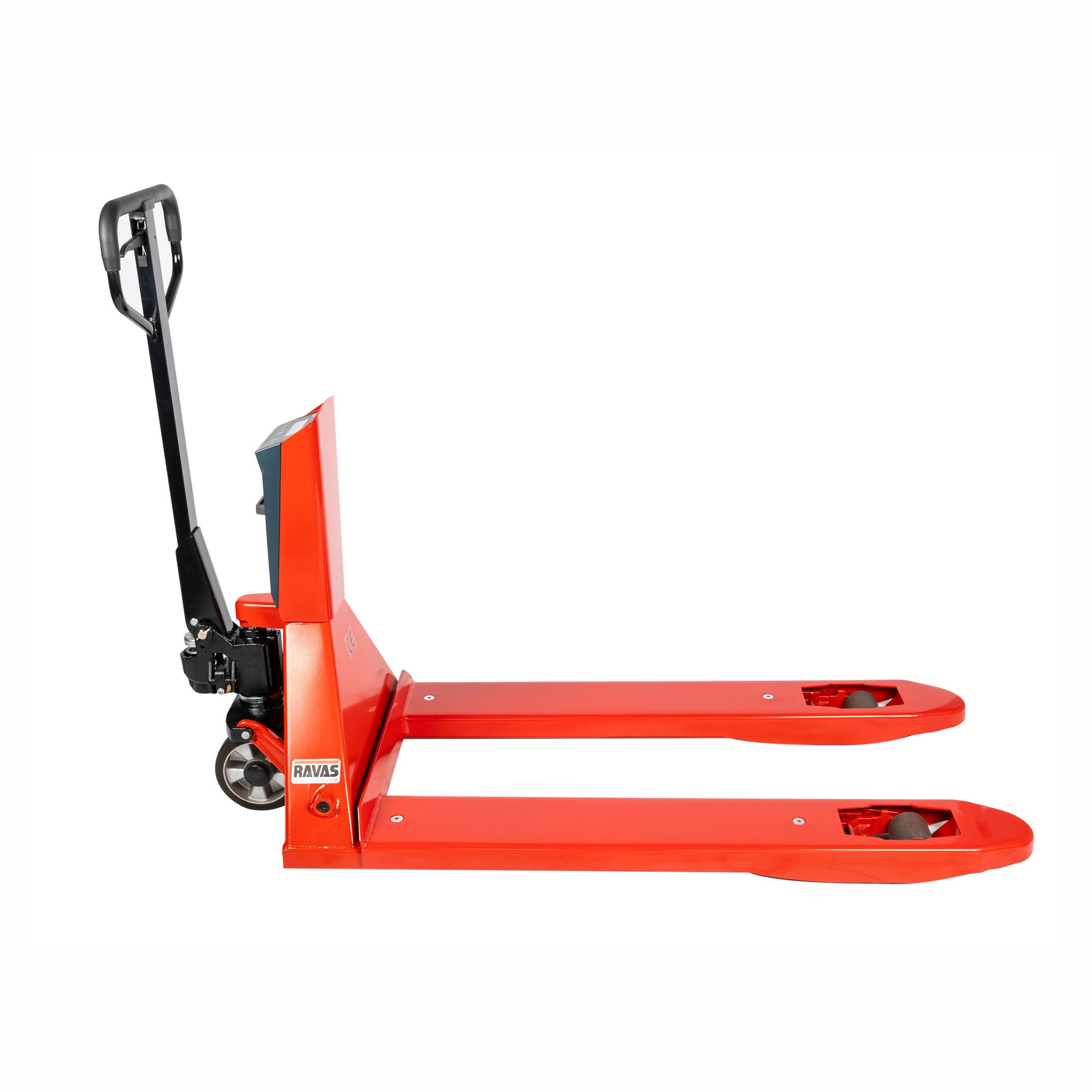

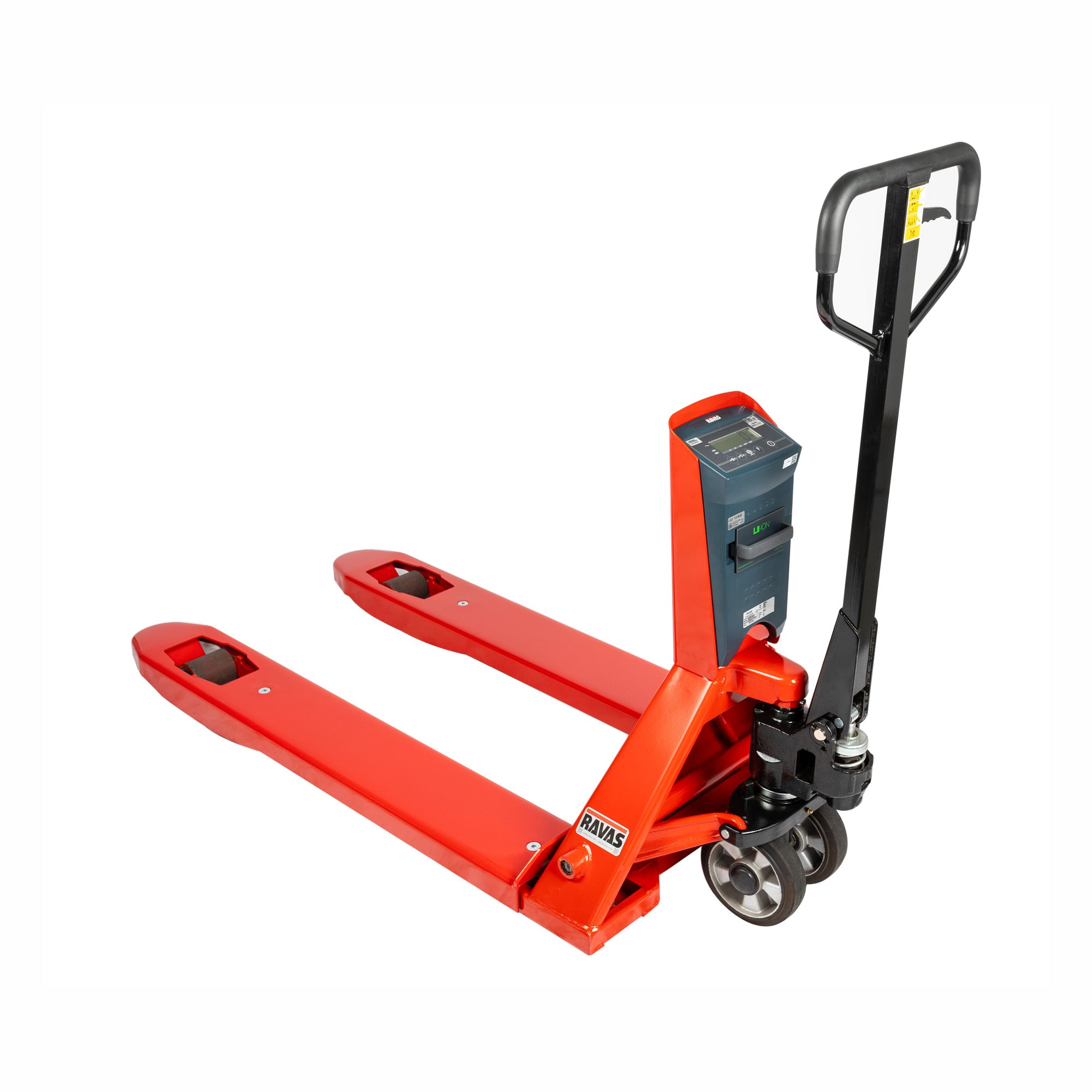

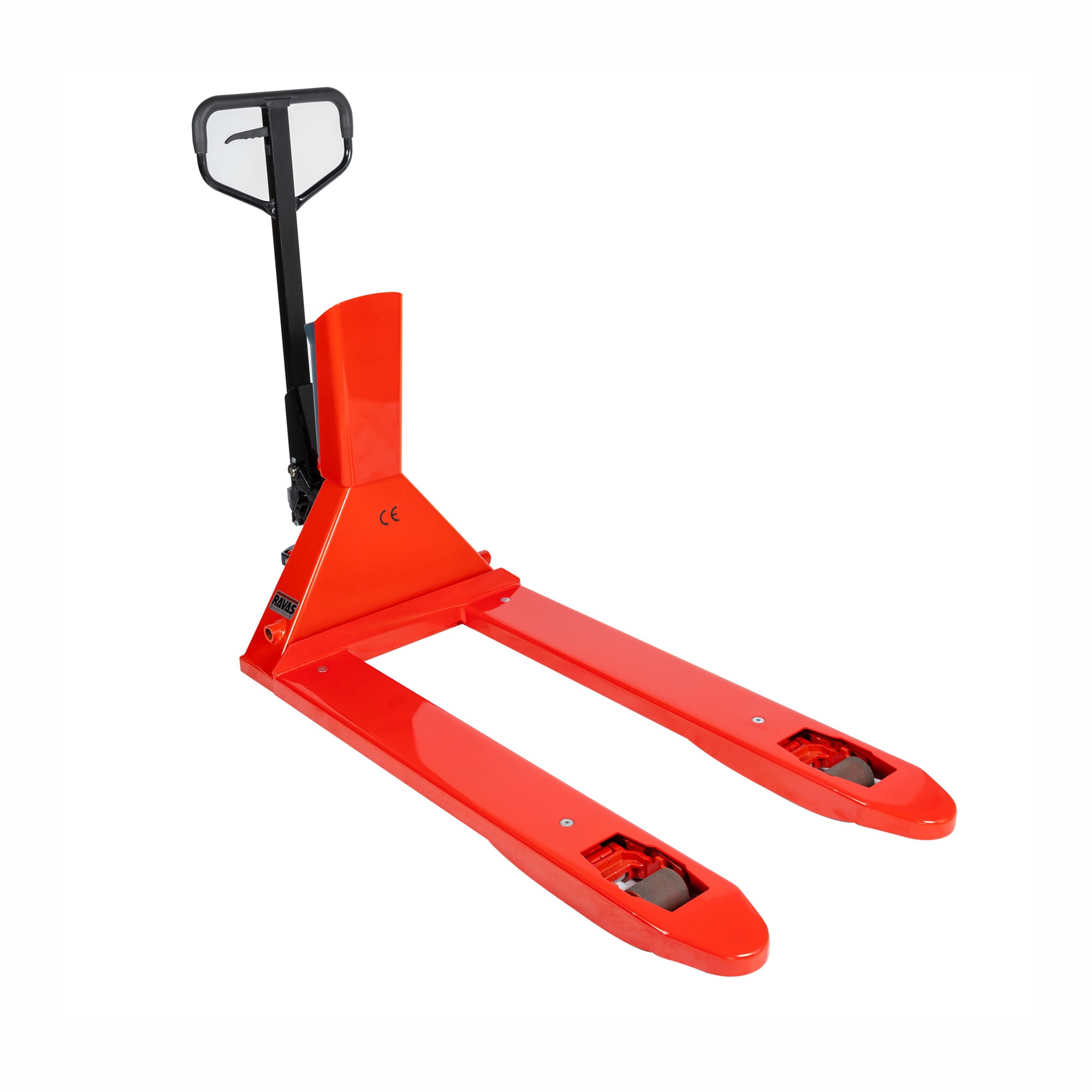

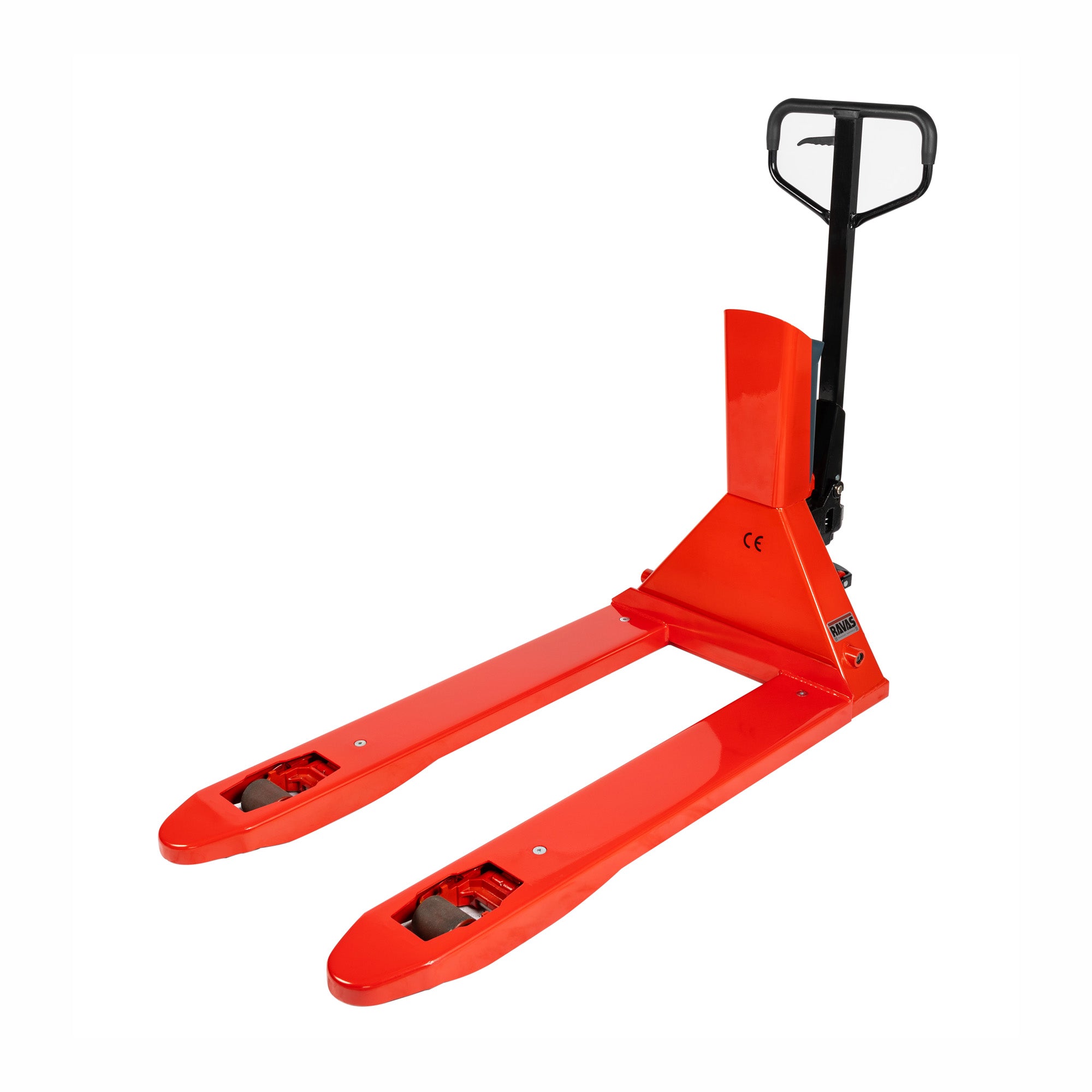

RAVAS-320 Hand Pallet Jack with Scale
The RAVAS-320 Weighing Pallet Truck is an innovative tool that combines the efficiency of a pallet jack with the precision of a scale, revolutionizing material handling and weighing in industrial settings. This device is equipped with a state-of-the-art, NTEP-certified scale that provides a maximum tolerance of 0.1% of the fork's load, ensuring accurate weight measurements essential for invoicing, inventory management, and compliance in warehouses and production environments.

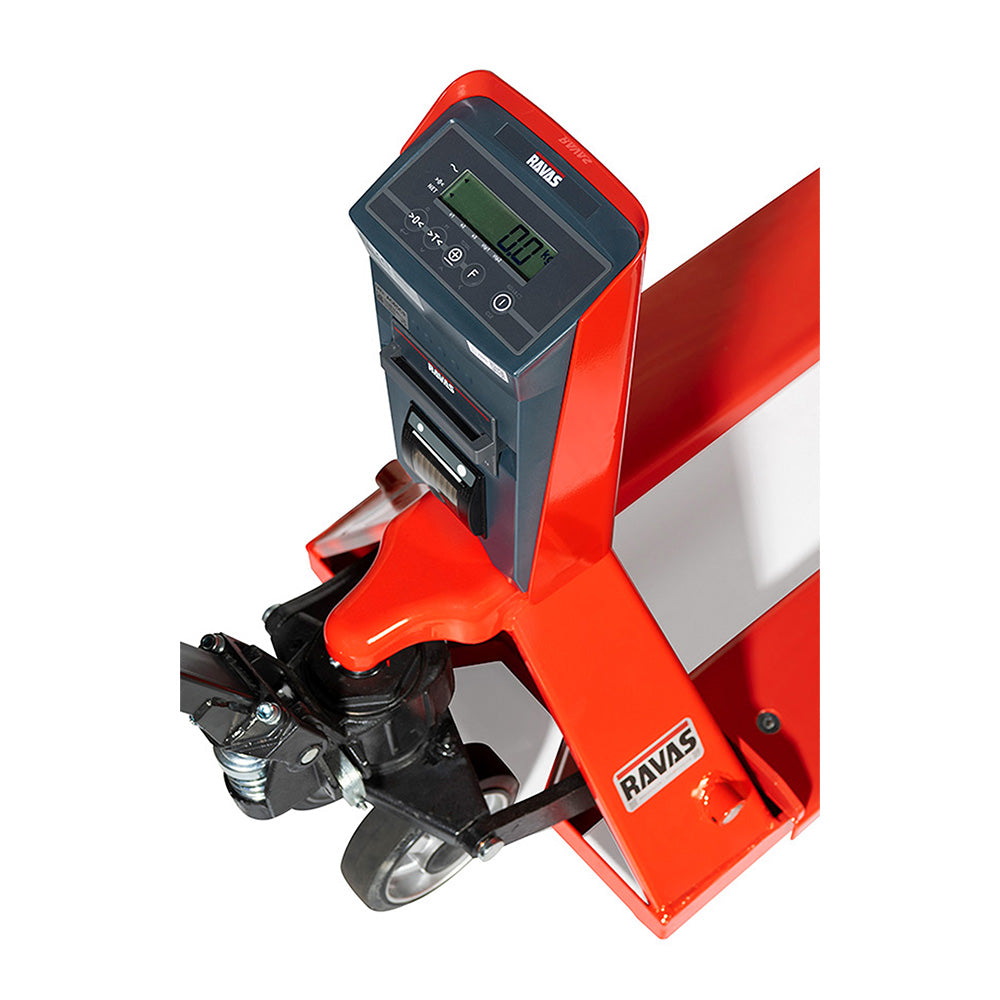

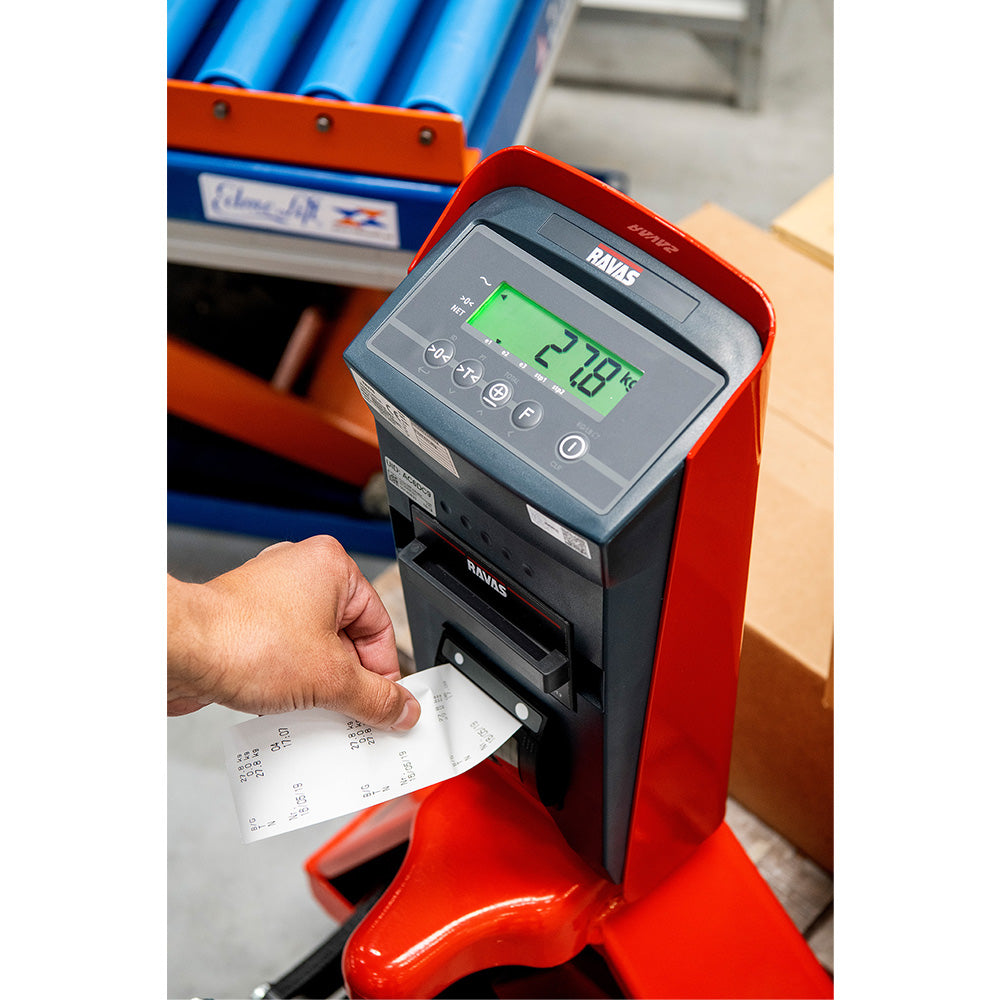

The RAVAS-320 enhances operational efficiency by merging the tasks of moving and weighing palletized goods into a single action, significantly reducing labor intensity and costs. It also features a digital display for real-time weight readings, which helps in streamlining logistics processes and improving inventory accuracy. Additionally, the RAVAS-320 can be outfitted with a built-in printer to output essential data such as weights, numerical IDs, and date/time information, further aiding in record-keeping and traceability.
| Weighing capacity | 5,000 lbs |
| Graduation multirange | 2 lbs - 0 to 3000 lbs, 5 lbs - 3,001 to 5,000 lbs |
| Maximum tolerance | 0.1% of the load lifted |
| Protection class | Load cells IP67, indicator IP65 |
| Dimensions | Fork length: 45 inches, Fork Width: 6.69 inches, Fork Height: 3.54 inches, Space Underneath Fork: 0.86 inches, Maximum Fork Height: 7.08 inches, Lifting Height: 3.54 inches, Width Over Forks: 21.25 inches |
| Functionality | Automatic and manual zero correction, gross/net weighing, automatic and manual tare, totaling with sequence number, Bluetooth 4.0 for RAVAS WeightsApp, automatic switch-off after 30 minutes of non-use, kg/lb toggle |
| Option | Legal for Trade NTEP-certified version, extra exchangeable battery pack, built-in thermal printer, relay setpoint switch for automatic dosing, multirange graduation, stainless steel fork shoes, stainless steel or galvanized truck, pivoting indicator: readout from all angles during dosing, footbrake or handbrake, different fork dimensions, different steering or loading wheels |
