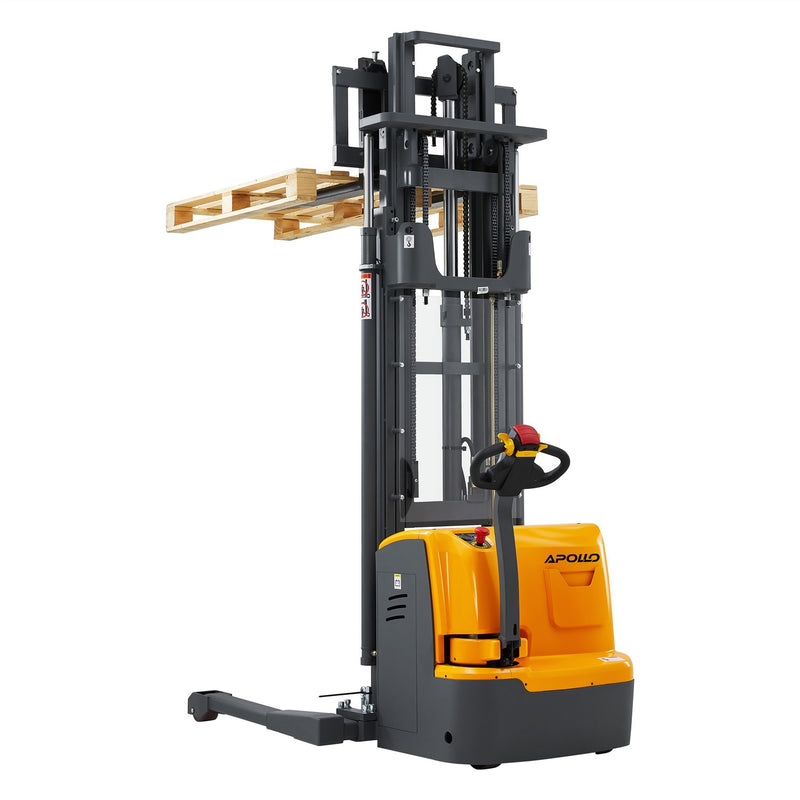

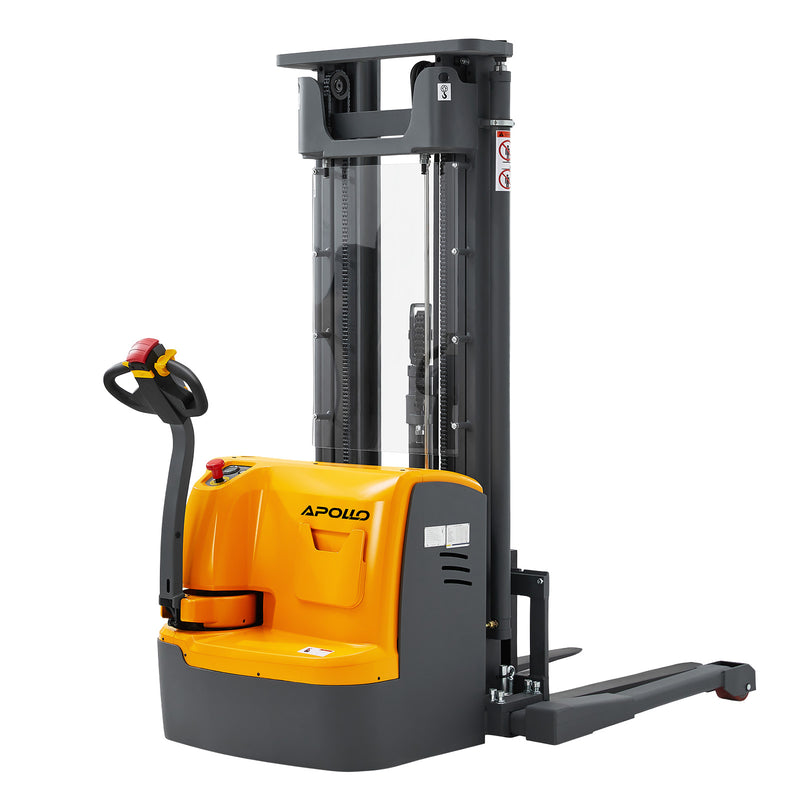

Powered Forklift Full Electric Walkie Stacker, 3300 lbs Capacity
The Powered Forklift Full Electric Walkie Stacker combines powerful performance with advanced control, making it ideal for various material handling tasks. Featuring a 1,200-watt drive motor and a 2,200-watt lift motor, this stacker can handle loads up to 3,300 lbs with ease. The advanced AC control system with step-less speed control ensures smooth operation.

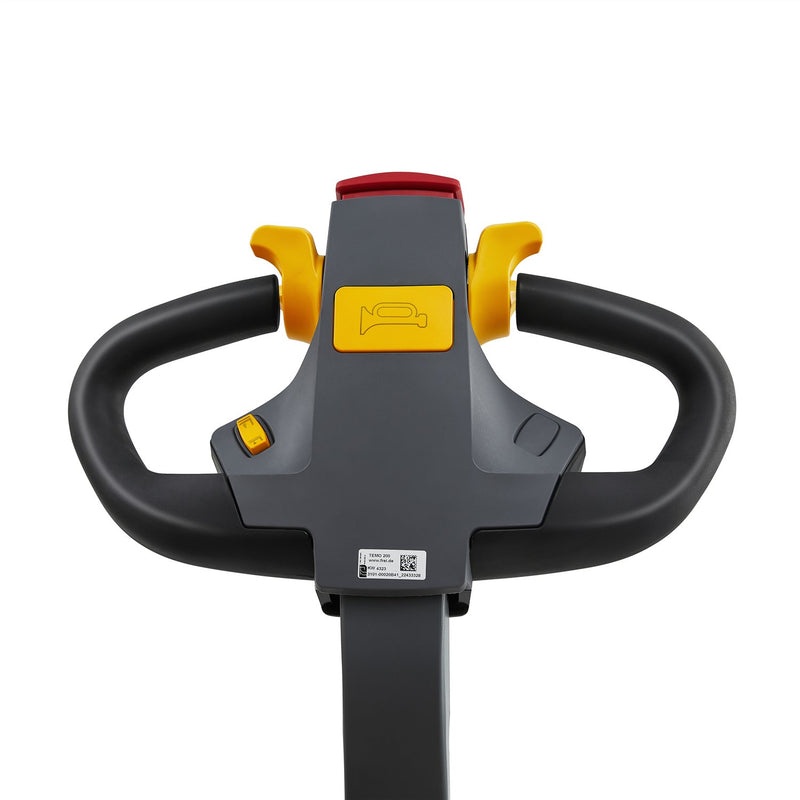

Equipped with a Curtis (US Brand) Controller and a famous German brand handle tiller, this stacker is designed for reliability and ease of use. The multi-function display shows working hours, battery status, and low-voltage protection, keeping operators informed and safe.
Dimensions
- Overall Length: 82.5"
- Overall Width: 46.5"-62.3"
- Recommended Aisle Width: 98.4"
- Turning Radius: 65.1"
- Load Center: 23.6"

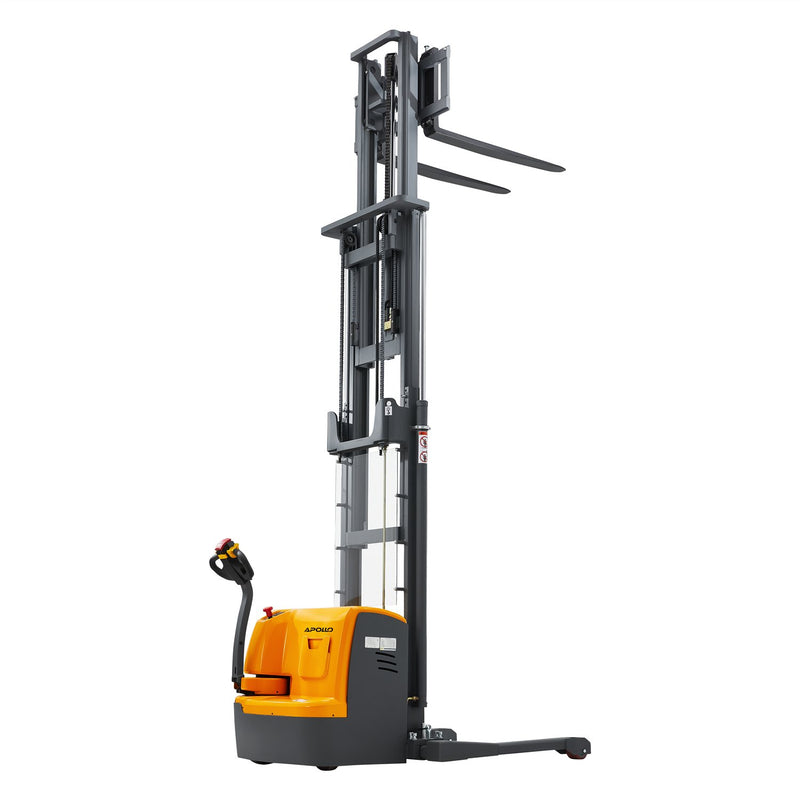

Mast
- Mast Height Lowered: 83.5"
- Max Lifting Height: 177"
- Mast Height Raised: 199.2"
- Free Lifting Height: 61.8"

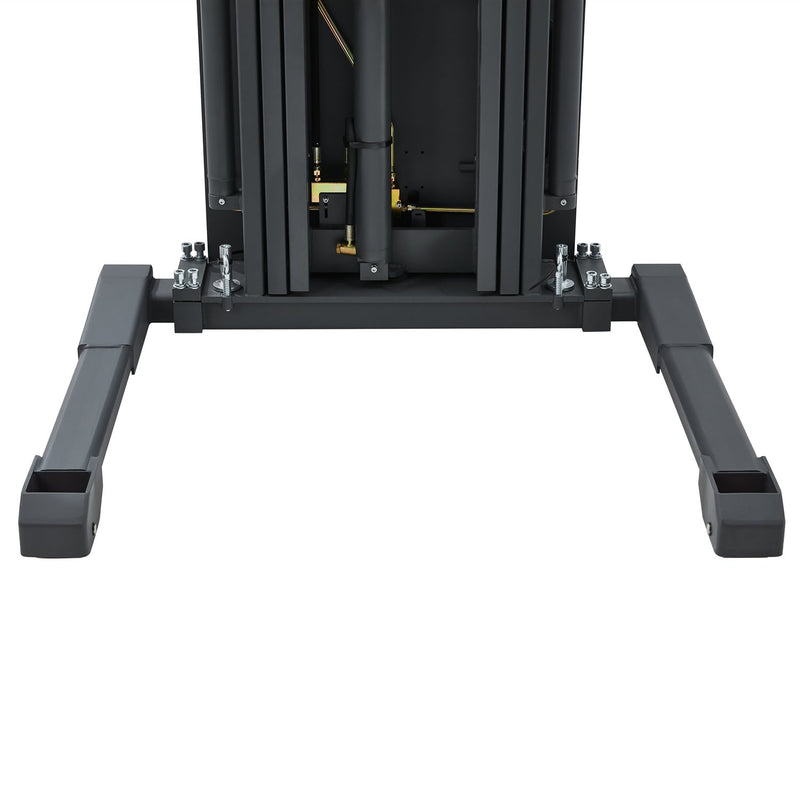

Forks
- Thickness: 1.3"
- Width: 3.9"
- Length: 42"
- Adjustable Forks: 7.8"-31.5"
- Lowered Height: 2.8"
Speed
- Travel Speed (laden/unladen): 3.6/3.7 mph
- Lifting Speed (laden/unladen): 3.5/6.3 inch/s
- Lowering Speed (laden/unladen): 5.9/6.3 inch/s
Features
- The capacity is 1,760 lbs when lifting to 177"
- Gradeability (laden/unladen): 6%/15%
- 8 hours of service per charge with strong power lead-acid battery capacity 24V/200AH
- 8-10 hours charging time
- Long handle structure makes the steering light and flexible
- Vertical driving wheel for driving efficiency, easy installation, and maintenance
- AC frequency conversion traction motor for compact structure and good performance
- Emergency stop switch and electricity lock button for safety
Specifications
- Not explosion proof
- Designed for use on flat ground, avoiding uneven grounds with potholes or large ramps
- Normal ambient temperature shall not be higher than +104°F and no lower than -13°F
- Fully charge the battery before use to avoid damaging cells
- Charger plugs into standard 110V-120V outlets
- Charge the forklift once a month even if not in use
Models and Specifications
| Model No. | Load Capacity | Battery Capacity | Height Raised | Wheel Diameter | Weight (lbs) |
|---|---|---|---|---|---|
| A-3029 | 3,300 lbs | 24V/200AH | 177" | 9.8"/5.9" | 2,607 |
| A-3030 | 3,300 lbs | 24V/200AH | 220" | 9.8"/5.9" | 2,695 |
