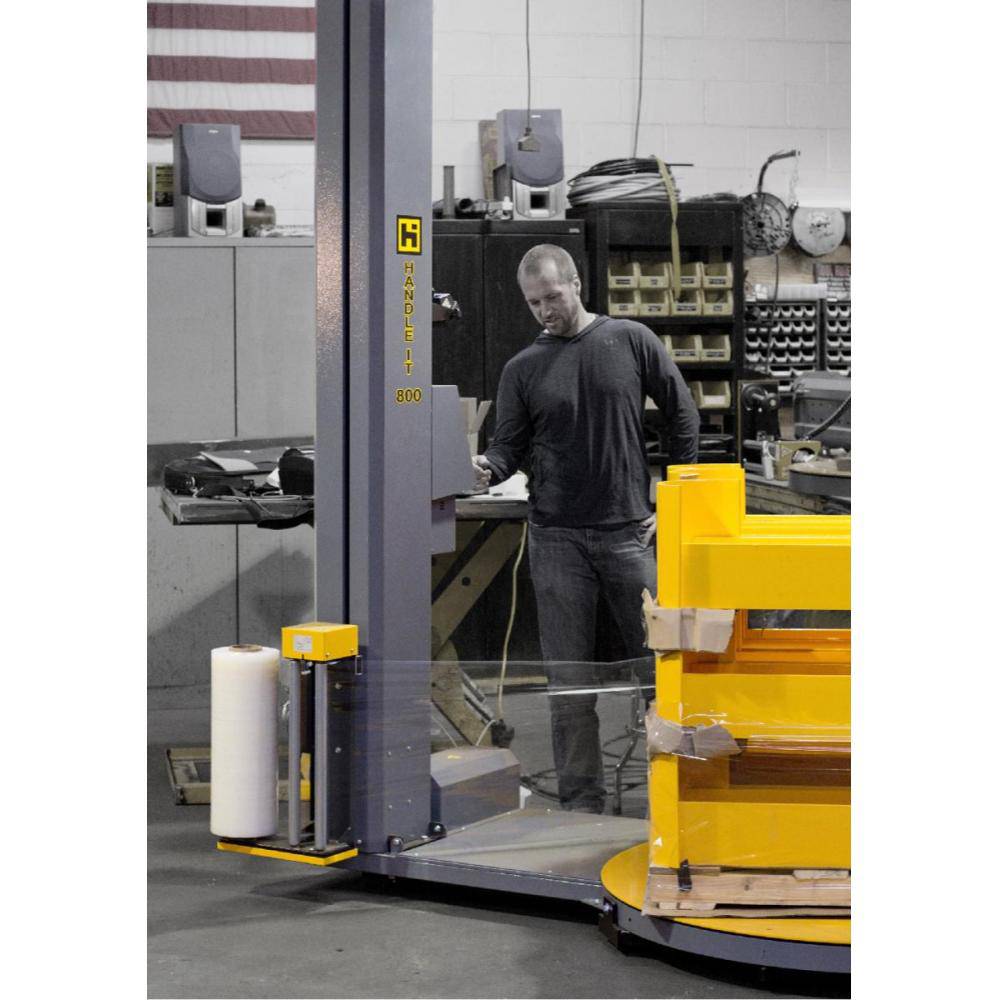

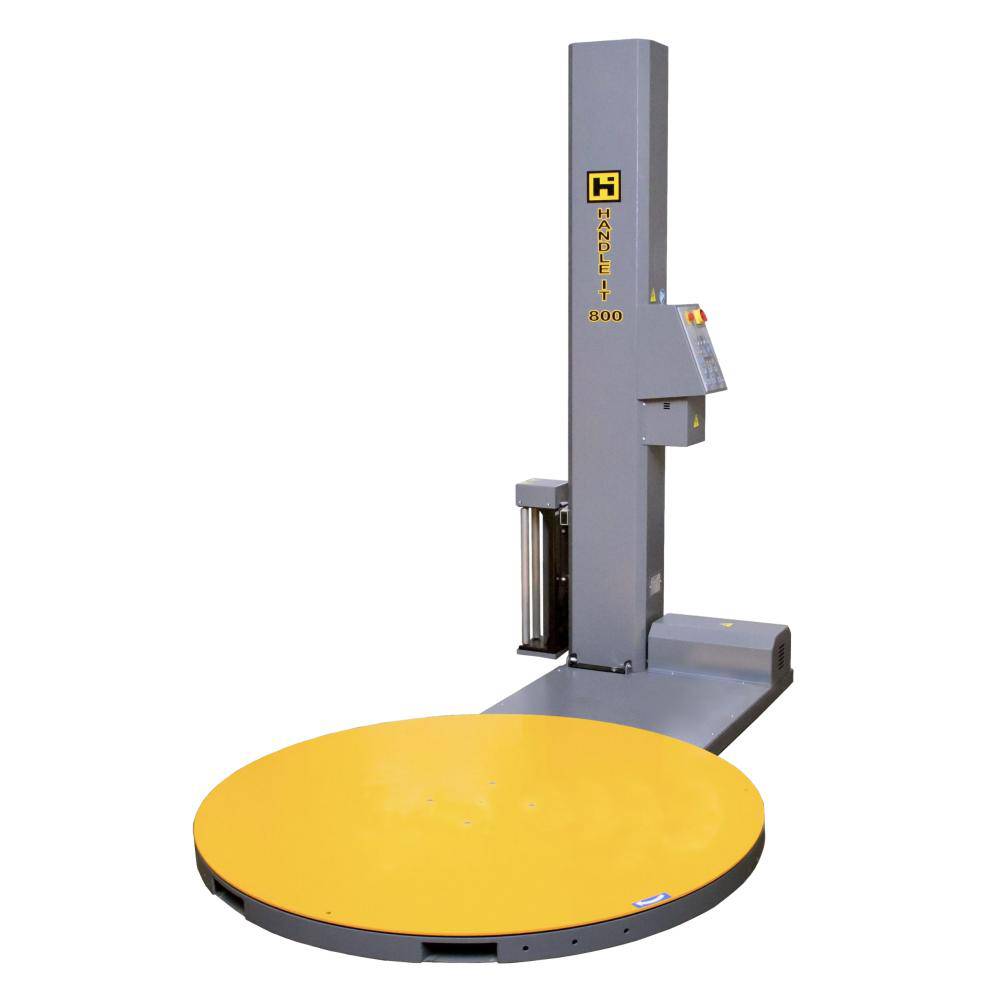

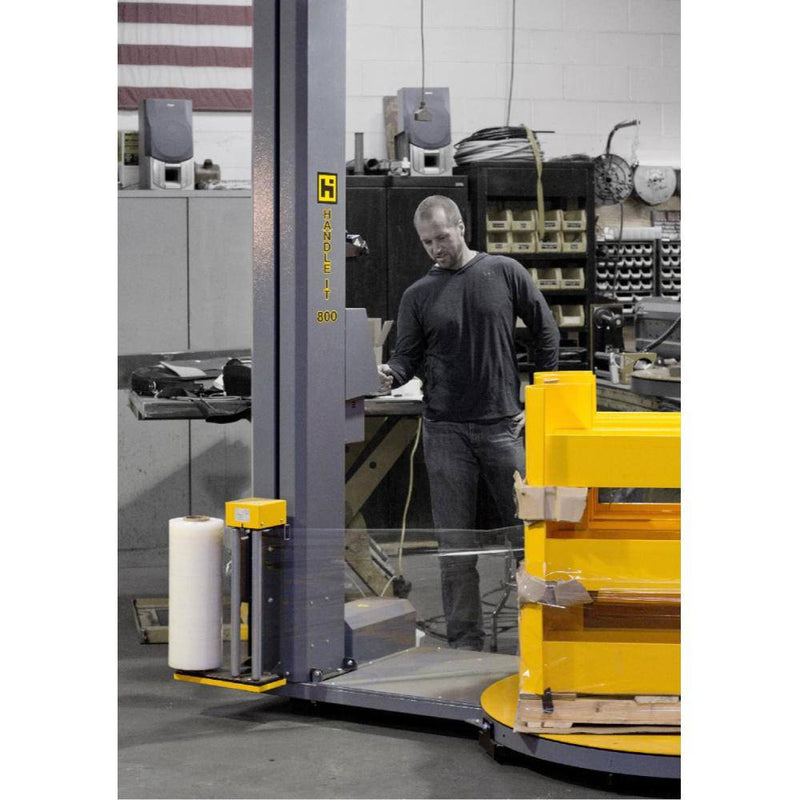

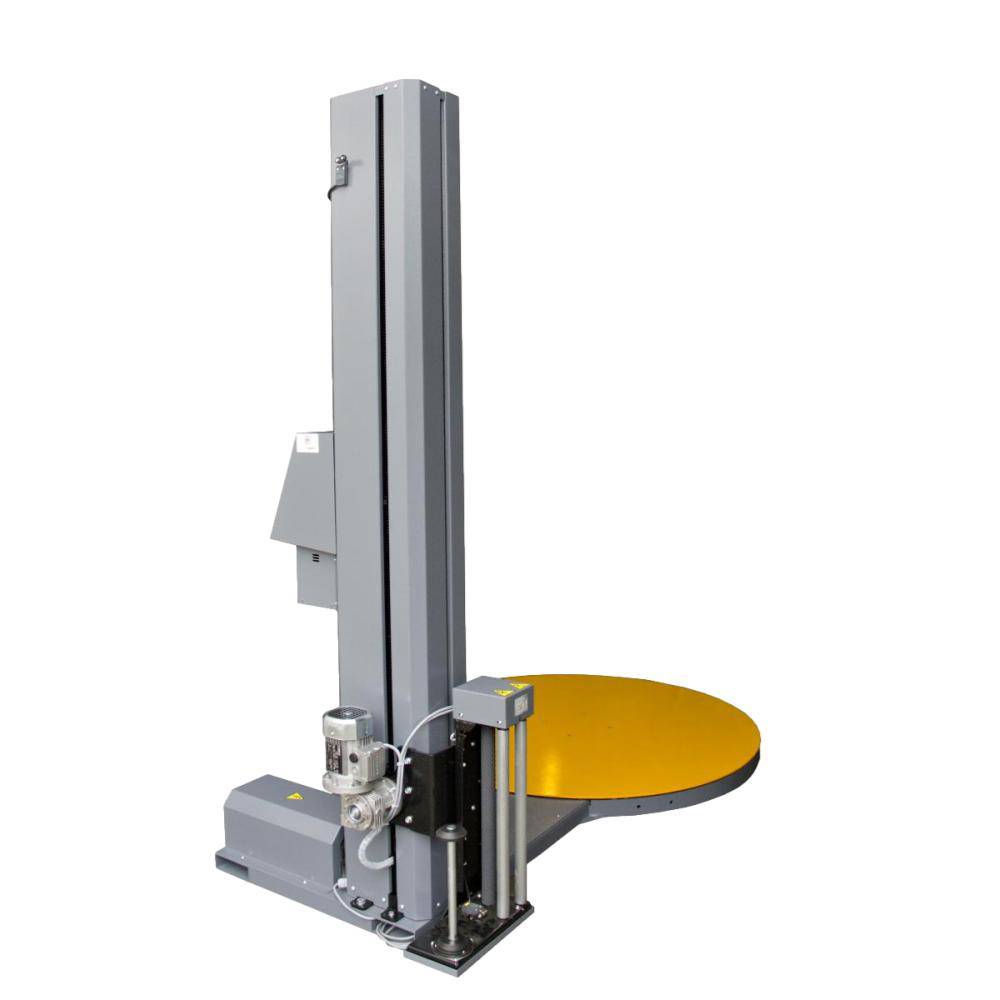

Handle-It® Model 800 Semi-Automatic Pallet Stretch Wrapper
- Item requires special shipping, additional freight charges will apply.

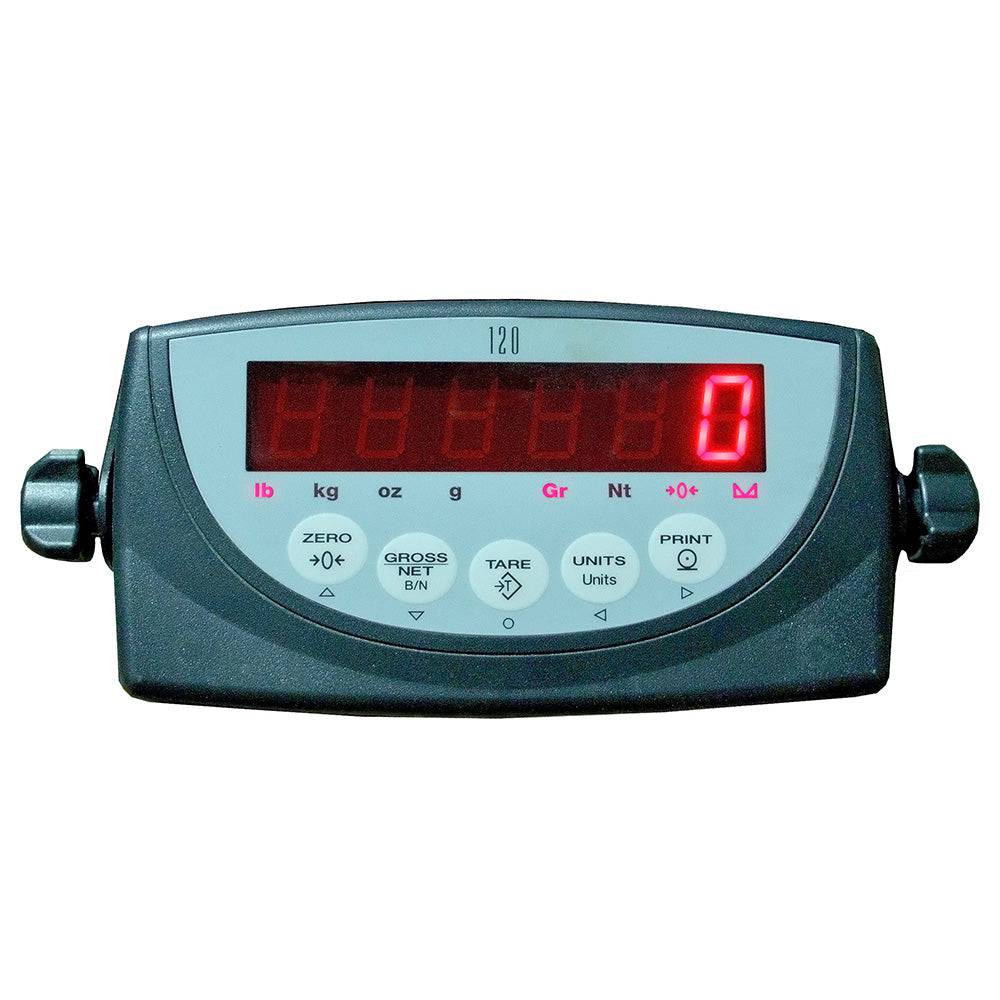

- For Stretch Wrap machines with scales please, allow for 1 additional week for shipping.
The Model 800 is the ideal mid-level pallet stretch wrap turn table, rated for up to 100 pallets per day. This turntable pallet wrapper is ideal for 100 maximum average loads per day.
Standard features on the model 800 include 4400lb capacity, 86" max wrap height, user-friendly control panel, electronic stretch film tension, and many other elements cleverly designed to make this unit a must-have in any facility looking to improve and streamline their packaging operations.

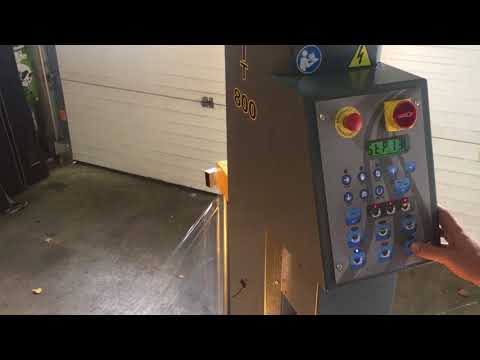

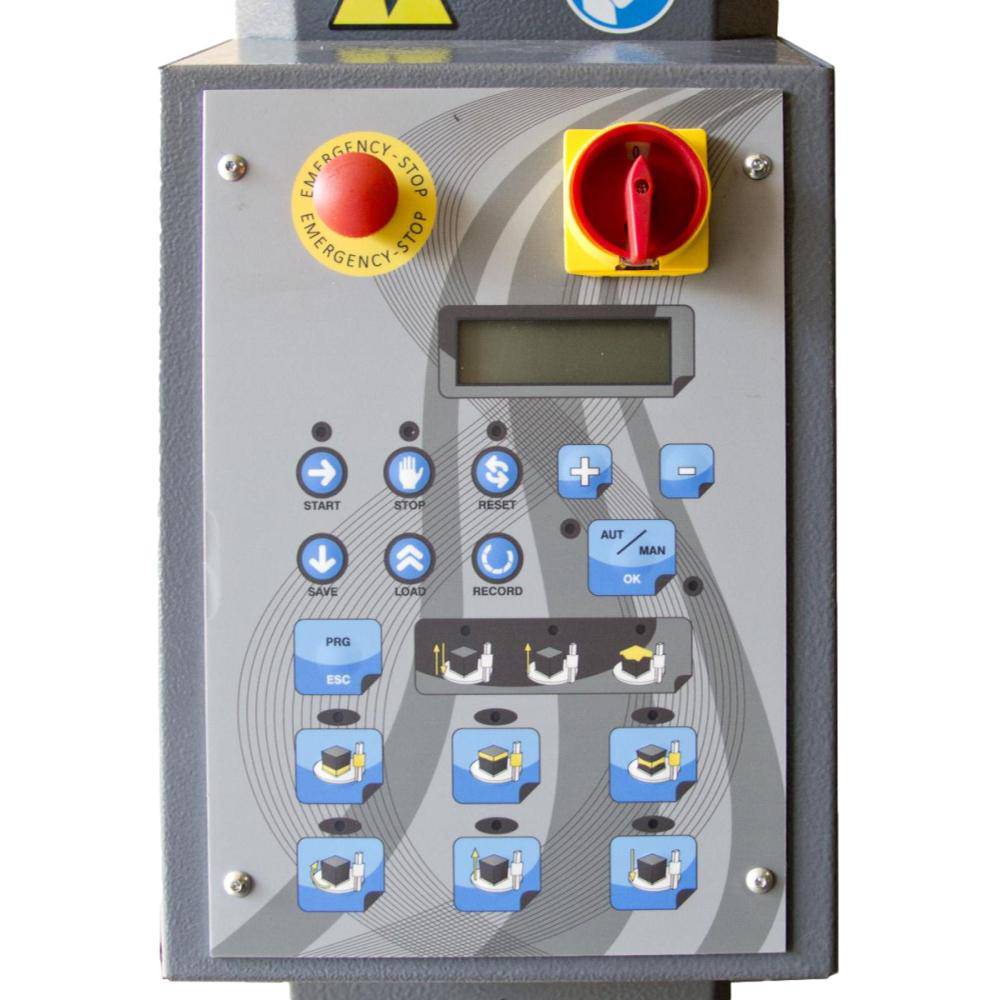

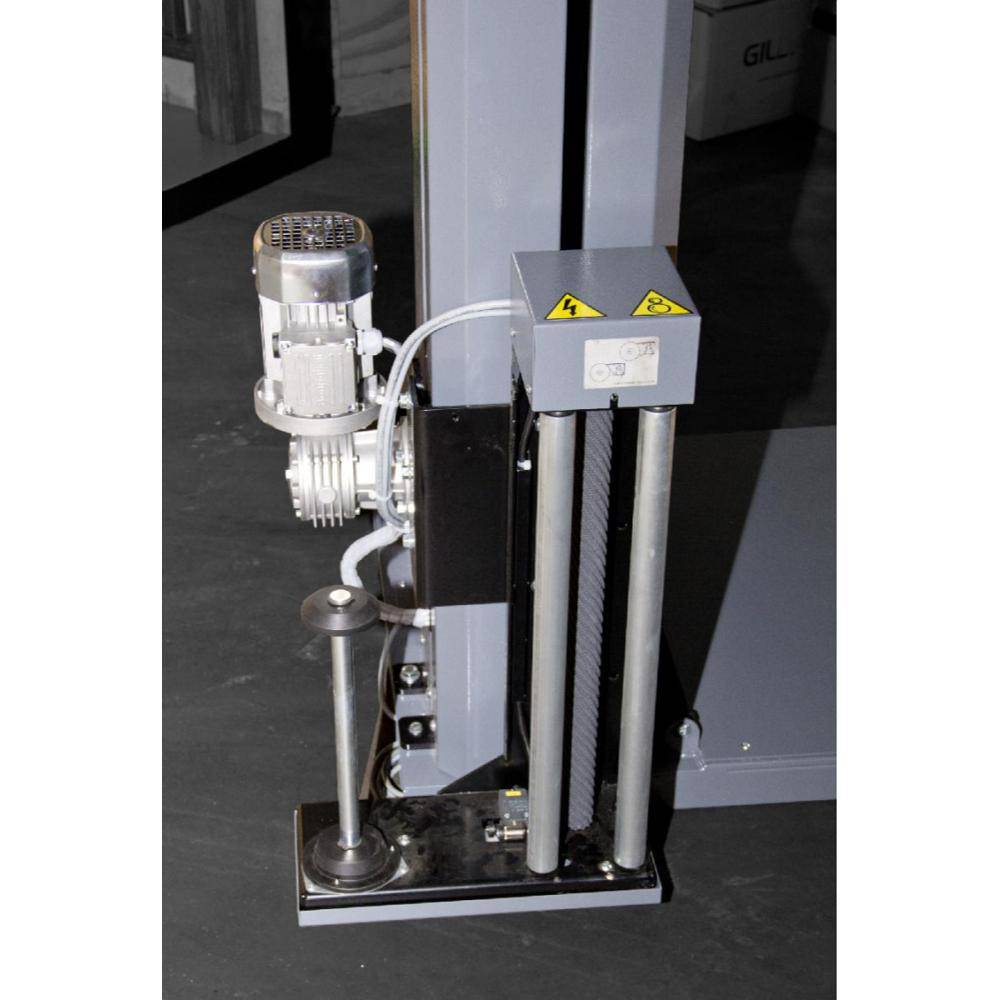

The integrated control board allows you to customize up to 18 wrap programs. Easily control speed, film tension, and wrap counts. Error code diagnosis makes troubleshooting fast and simple. It has all the features needed to improve your wrapping process. The film carriage has electromagnetic tension for precise film tension control. The photo-eye detects the pallet and allows the turn table stretch wrapper machine to wrap the whole pallet to secure your product while performing a wrap cycle. Maximum wrap heights of 86" or 98". The film carriage is driven by rack and pinion for added reliability. Regular 110v power plug.
- 100 maximum average loads per day. If your average loads per day are over 20, we suggest our 850 PS machine due to the film savings the pre-stretch carriage on the 850PS provides.
- 93" maximum load size diagonal
- 86" maximum load wrap height -98" extended height available.
- 4400lb maximum load weight capacity
- Pallet wrapping turntable speed 3-13 RPM
- 59" Turntable size
- 3/4 HP TEFC Turntable Drive Motor
- 110v standard plug
- Machine size 93"L x 59" W x 88" H
- 3 Year Warranty

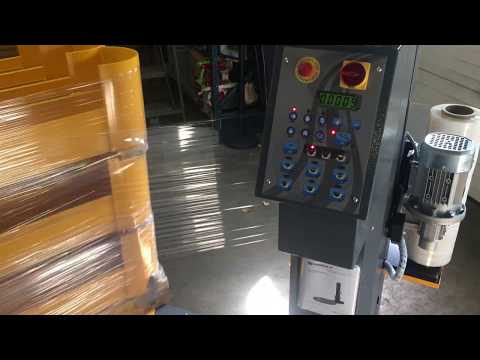

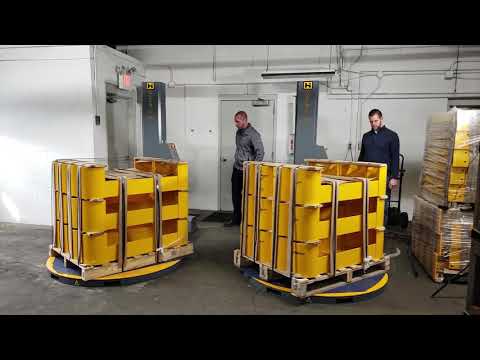

Interested in this machine - but want to save up to 60% on film? Watch the video below comparing the 800 machine to our 850 PS machine.
Model No. | SWM-SA-0800 |
Wrap Height | 86" |
Turntable Diameter | 59" |
Max Pallet Size | 48" x 80" (93" Diagonal) |
Turntable Height | 3" |
Load Capacity | 4400 lbs |
Mechanical Tension Stretch | 150% |
Power Supply | 110v, 10 amp |
Total Machine Footprint | 93" long x 60" wide |
Machine Weight | 600 lbs |
Turntable Speed | 3-13rpm |
Programmable Modes | 18 |
Film Type | 20" machine film with 3" core, 70 + gauge |
