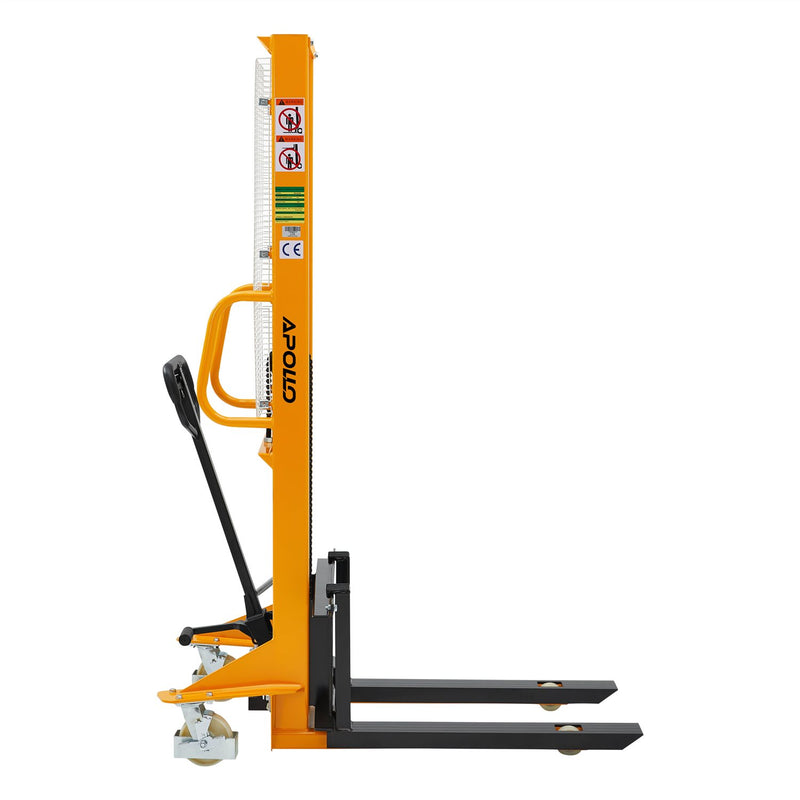

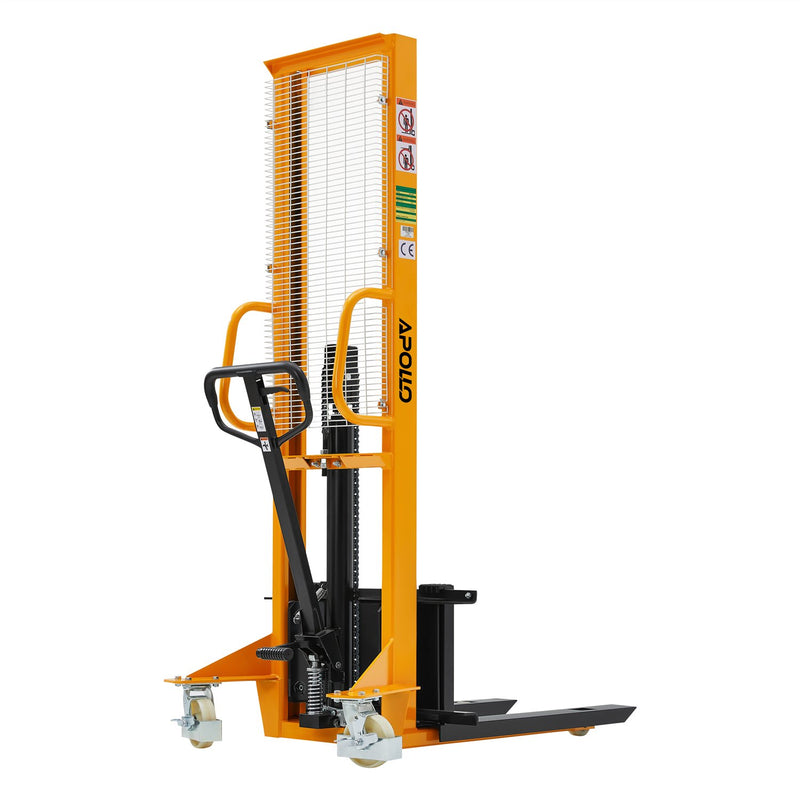

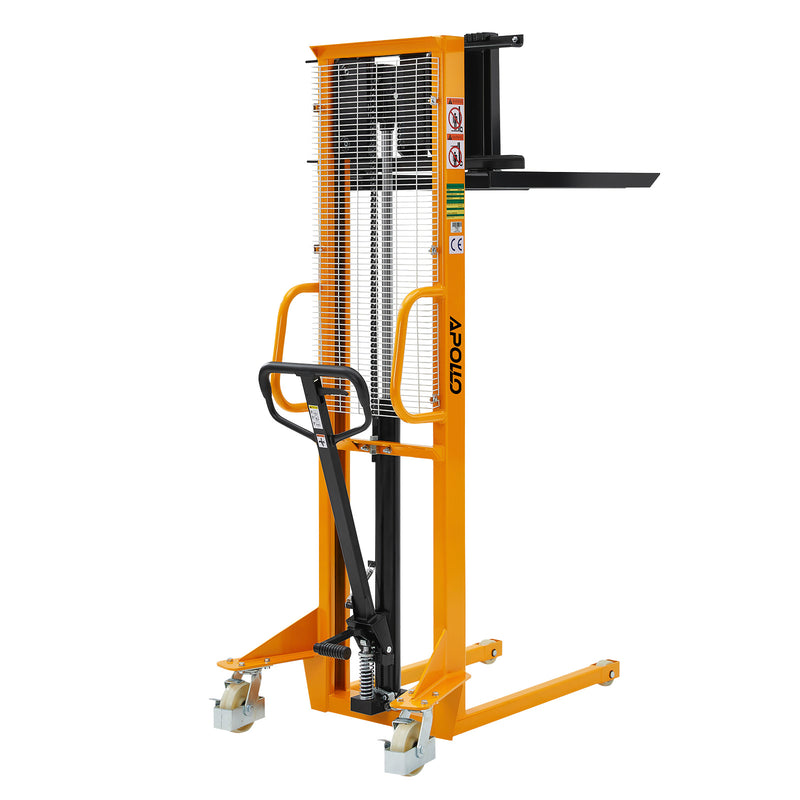

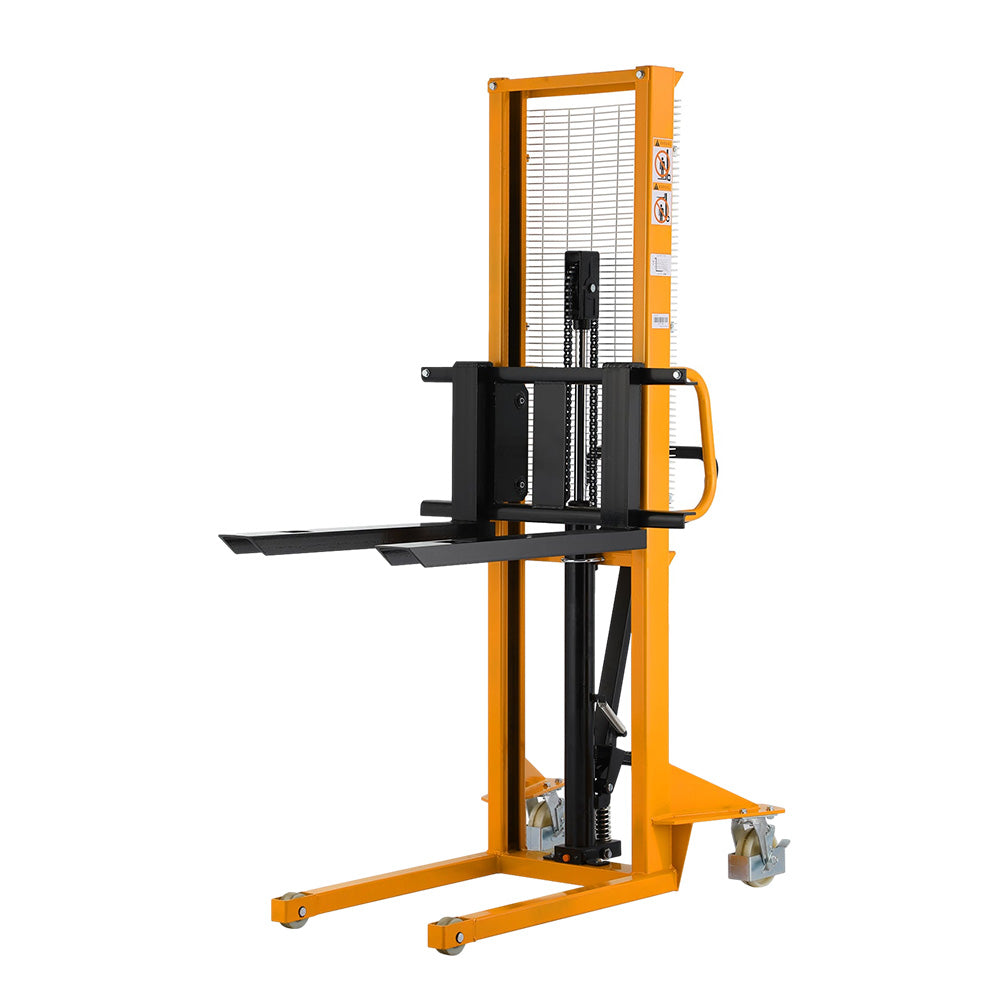

Manual Pallet Stacker Adjustable Forks, 1100-2200 lbs Capacity, 63" Lift Height
This manual pallet stacker is designed for efficient pallet stacking and positioning, as well as stocking and refilling shelves. With capacities ranging from 1100 lbs to 2200 lbs and a lifting height of 63", it offers a versatile solution for various material handling tasks.
The stacker features a compact design that is perfect for maneuvering in tight spaces. Its high-quality steel mast and strong steel construction ensure rigidity and durability. The high-efficiency pumps make control easier, allowing for smooth operation with both foot pump and handle controls.
Safety features include a metal grid that protects the user from lift chains, a safety wheel guard, and a brake system to ensure stability during operation. The adjustable forks provide flexibility in handling different load sizes.
Specifications
| Model No. | Capacity | Lifting Height | Wheel Diameter | Weight (lbs) |
|---|---|---|---|---|
| A-3002 | 1100 lbs | 63" | 5.8" | 355 |
| A-3003 | 2200 lbs | 63" | 5.8" | 550 |

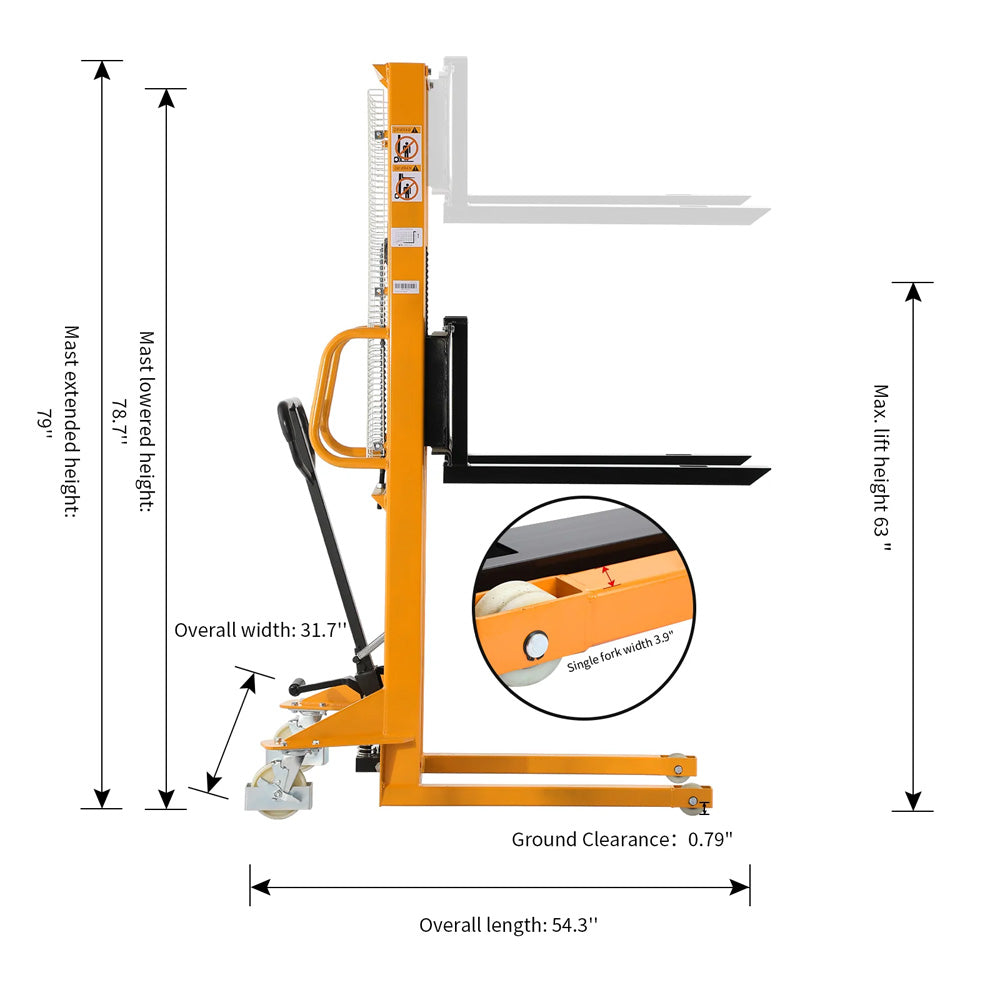

Dimensions for A-3003
- Overall Width: 31.7"
- Overall Length: 54.3"
- Load Center: 19.7"
- Recommended Aisle Width: 75.4"
- Turning Radius: 48.6"
- Inner Legs Width: 16.5"
- Outer Legs Width: 20.5"
Mast
- Lifting Height: 63"
- Mast Lowered Height: 78.7"
- Mast Extended Height: 79"
Forks
- Adjustable Width: 7.9-29.3"
- Thickness: 1.9"
- Width: 3.94"
- Length: 31.5"
- Fork Lowered Height: 3.5"
Dimensions for A-3004
- Overall Width: 37.6"
- Overall Length: 66.1"
- Load Center: 19.7"
- Recommended Aisle Width: 84.5"
- Turning Radius: 48.6"
- Inner Legs Width: 12.7"
- Outer Legs Width: 21.8"
Mast
- Lifting Height: 63"
- Mast Lowered Height: 82.3"
- Mast Extended Height: 82.3"

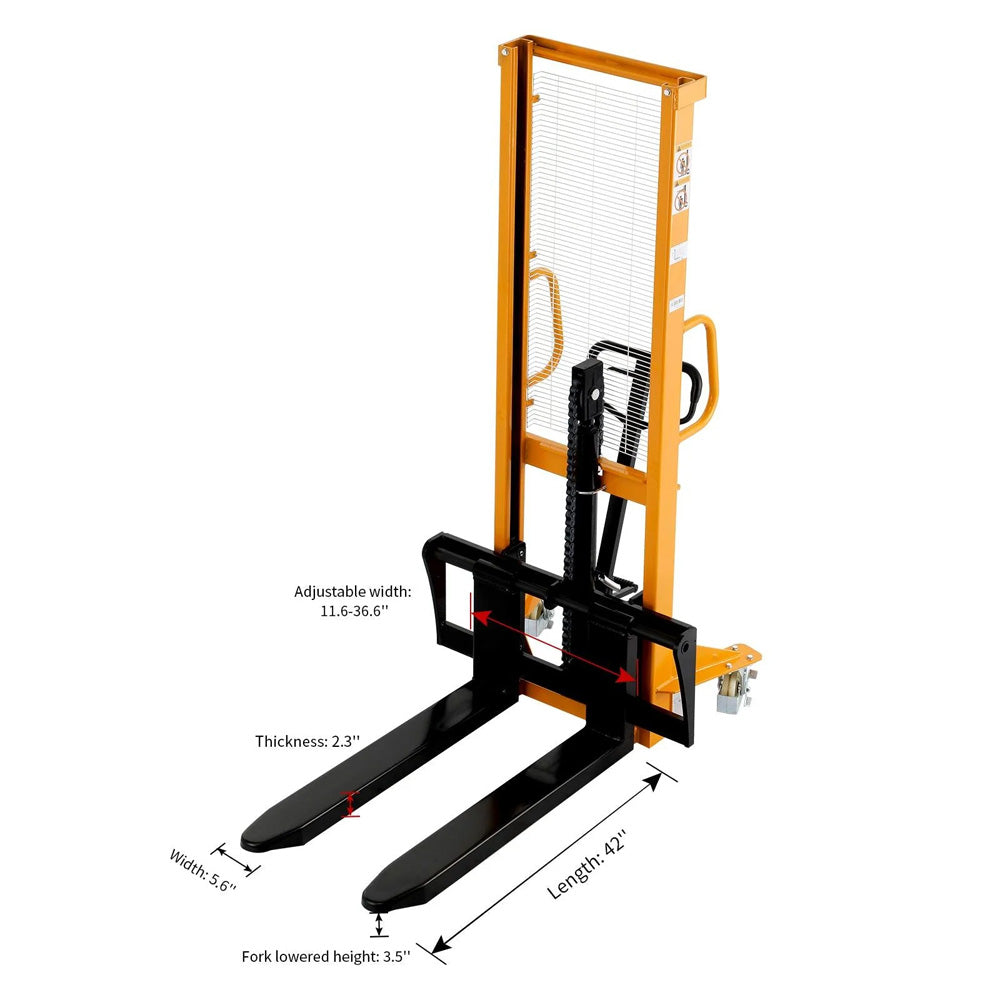

Forks
- Adjustable Width: 11.6-36.6"
- Thickness: 2.4"
- Width: 5.6"
- Length: 42"
- Fork Lowered Height: 3.5"
Features
- Compact design for pallet stacking and positioning
- High-quality steel mast and strong steel construction
- High-efficiency pumps for easier control
- Metal grid to protect the user from lift chains
- Safety wheel guard and brake system
- Foot pump and handle operation for raising and lowering loads

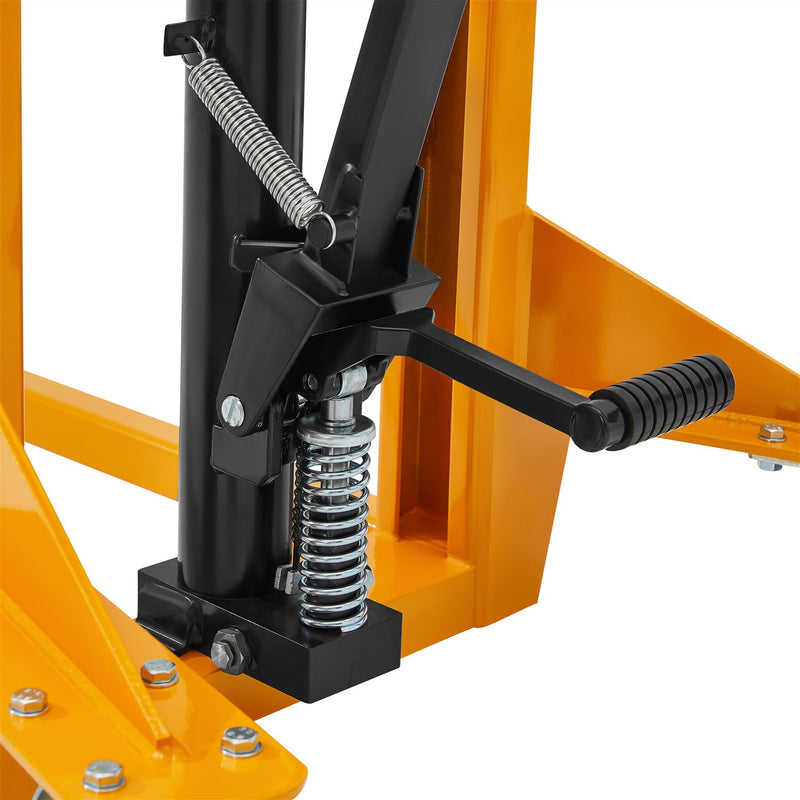

- Foot Operated Pump: Lift Height nearly 1" per stroke
- Handle plate provides protection from falling items
