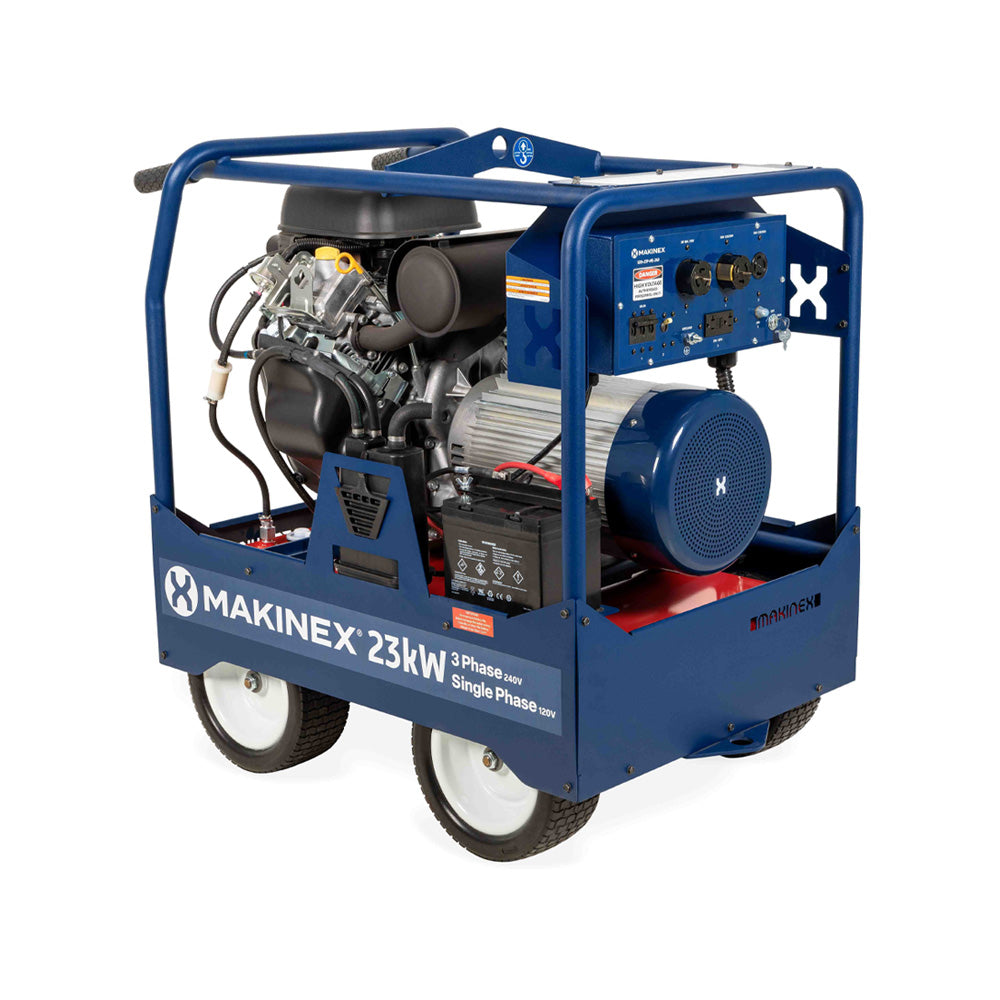

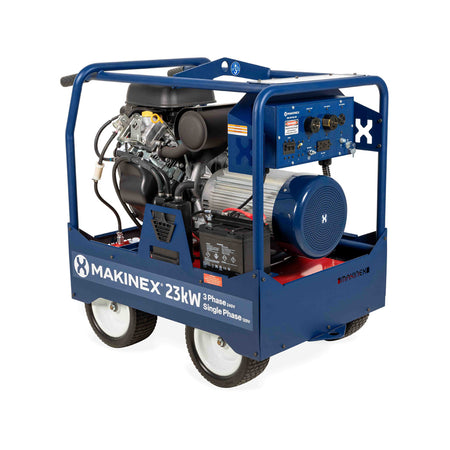

Makinex Generator 23kW (240V)
Introducing the Makinex 23kW Generator, the world's smallest 3-phase 240V generator in its class, specifically engineered for power-hungry contractors and tradesmen in the concrete, masonry, and flooring industries. Its compact and lightweight design sets new standards in portability and power capacity.
Unlike bulky towable and SKID generators, the Makinex 23kW's revolutionary size allows it to fit easily in equipment trailers or trucks and pass through standard doorways. This enables placement right at the job site, minimizing the hazard and power loss associated with long cable runs.
This generator features a permanent-magnet brushless alternator, providing independent and clean power across both 120V and 240V circuits, ensuring stable three-phase power irrespective of load variations on other circuits. It produces 15% more power from the same engine compared to conventional alternators, enhancing fuel efficiency and longevity.
Equipped with 50A, 30A, and 20A outlets, the 23kW supports simultaneous use of multiple single-phase and three-phase pieces of equipment without the need for voltage selection—just plug in and power up. The Briggs & Stratton VANGUARD™ V-Twin OHV engine offers excellent fuel economy, reduced emissions, and minimal vibrations.
Key Features:
- Compact and easily maneuverable
- High fuel efficiency with advanced alternator technology
- Supports multiple equipment simultaneously
- Three-year warranty
Specifications:
| Feature | Details |
|---|---|
| Load Capacity | 23kW |
| Phase Type | Dual (Single & 3-Phase) |
| Voltage | 240V |
| Engine Type | Briggs & Stratton VANGUARD V-Twin OHV |
| Alternator Type | Permanent-Magnet Brushless |
| Weight | Portable, exact weight undisclosed |
| Max Output | 24.1 kW |
| Frequency | 60 Hz |
| Voltage | 120V Single-phase + 240V 3-phase |
| Rated Output | 23,000 W |
| Sockets | 50 Amp 240V 3-phase 50 Amp 120V-250V Single-phase 30 Amp 120V-250V Single-phase 20 Amp 120V Dual GFC |
| Weight | 573 lbs |
| Noise Level (7m) | No Load: 72 dB 50% Load: 76 dB 100% Load: 78 dB |
| Rated Power Factor | 0.8 |
| Engine Type | 40.0 HP EFI |
| Engine Model | Vanguard |
| Starting System | Electric/Key Start |
| Engine Fuel Economy | 1.5 gal @ 50% Load |
| Dimensions | 43 in (L) x 25 in (W) x 40 in (H) |
