FA-250 Automatic Orbital Wrap Machine

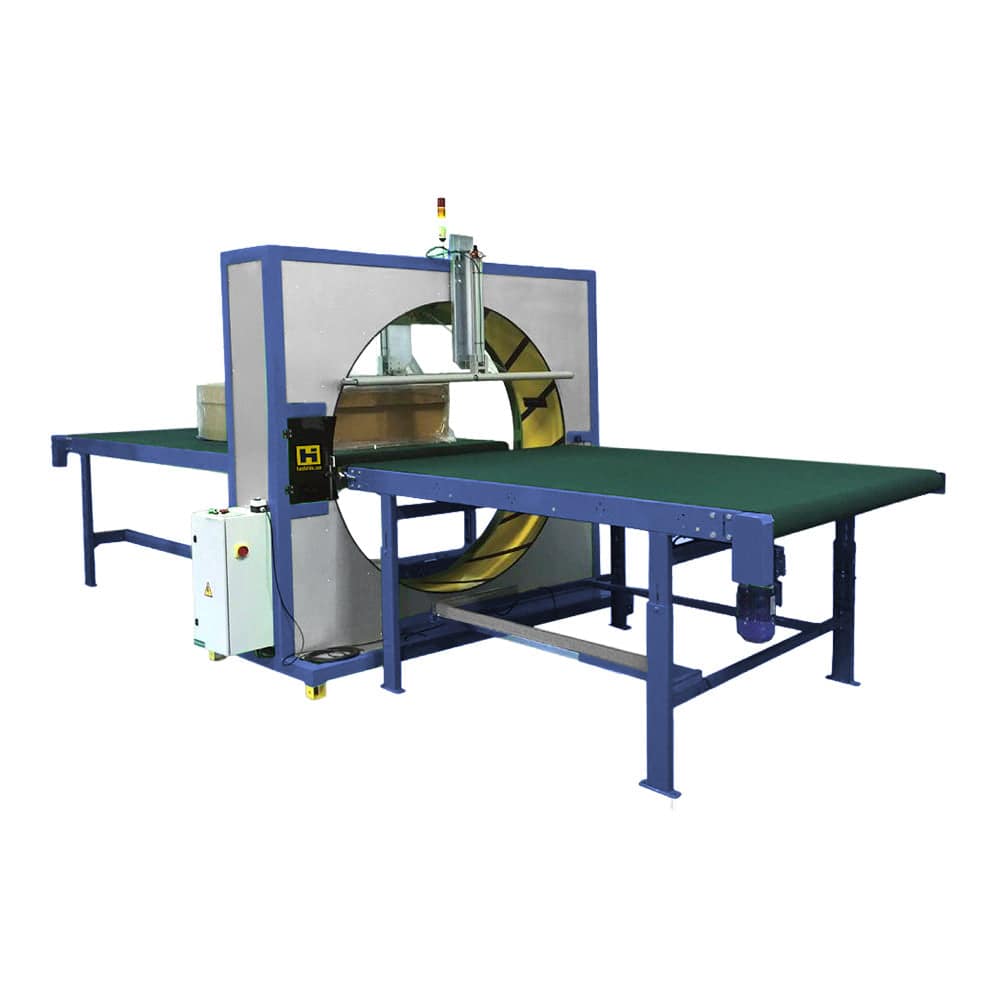

Handle-It FA-250 Automatic Orbital Wrap Machine

Automatic orbital wrapper used for bundling product with stretch film. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use. It automatically loads products and threads, wraps, and cuts stretch film. The model OWM-FA-250 is ideal for large products like furniture, cabinets, doors, timber boards, windows, frames, and other bulky loads that need to be grouped and protected.

Standard dual film reel delivery system gives you faster throughput

Double automatic film cutting and clamp standard with blade protection

Highly customizable to suit your application

Power fed by conveyor and controlled by photocell

Performance & Specifications

Standard equipment:

• Double reel dispenser head; allows to wrap with two reels of stretchfilm for a reinforced wrapping and faster packaging or to wrap with one reel for a simple wrapping; ready to use reels of different width.
• Adjustable stretchfilm tension to fit it to the product.
• Fast changing reels without tools and with self-fixing system.
• Double automatic stretchfilm clamp and cutter system for two reels.
• Automatic stretchfilm threading for reel changing.
• Stopping system to place the reel dispenser head in the exact position for reel changing.
• Adjustable extra wrapping laps in both ends of the product for a higher protection.
• Ring speed controller (driver included) to adjust the stretchfilm overlap onto the product.
• Touch color screen to program and adjust the machine to the specifications of the product to be wrapped with: Extra wrapping laps in the ends of the product, stretchfilm threading, 6 wrapping programs, warning messages, reels change, only ends wrapping, 6 languages programs, presses on/off, infeed top press up time control, outfeed top press down time control and conveyors stopping time.
• Wrapping programs (6): standard program (wrapping from end to end of the product), bundling program (to wrap product ends only) and four programs else to be issued by the user.
• Backwards conveyors selector and selector product goes through the ring but without wrapping; this option is used in machines which are set up in automatic lines where some products do not need to be wrapped.
• Variable driven conveyors speed to control the wrapping speed or to adjust stretchfilm overlap onto the product.
• Electrical photocell to start the wrapping cycle.
• Device that unable the machine to work while changing the reel for worker safety.
• Ring driver system through trapezoidal belt of low maintenance and wear.
• Control panel and electrical box with Master switch, power light, warning light, start button, reset button ring speed control, conveyors speed control, emergency stop and touch screen.
• Tower lights to inform status of orbital wrapper.

Accessories

Customize your machine:

• Infeed & outfeed top pressers - manual fitting.
• Infeed & outfeed top pressers - automatic fitting.
• Rollers side guide - manual fitting.
• Driven conveyor belt W55" x L39"(other dimensions also available).
• Driven conveyor metal rollers W55"x L39" (other dimensions also available).
• Driven conveyor chain W55" x L39"(other dimensions also available).
• Driven conveyor belt with pneumatic lift to place corners W39" x L98".
• Driven conveyor metal rollers "V" shape W47" x L157".
• Gravity rollers conveyor + tilters system to place product from vertical to horizontal W47" x L59".
• Table with driven rollers (3) in triangle with pneumatic lift to wrap round products.
• Table with driven (2) in parallel to wrap-round products.
• Hydraulic lift table to center conveyor belt/rollers vs. ring.
• Short products bridge < 23".
• Driven conveyor belts (bridge) for short products W45" x L23".
• Wooden/porex blocks automatic dispenser (includes driven conveyor for short products W45" x L23").
• Warning of reel end.
• Safety fences + safety kit.
• Remote technical assistance (via Ethernet).
• No standard machine color.
• Seafreight wooden crate.
• Seafreight wooden box.
• Manual bubblewrap top dispenser (integrated on machine) for reel up to 63".
• Manual bubblewrap floor dispenser for reel up to 63".
• Double automatic dispenser for bubble plastic · foam · polyethylene.

Specifications

Product to wrap sizes:

• Maximum/minimum length unlimited / 23" when the conveyors enter the loop (15.75" with bridge).
• Other sizes Check with graphic.
• Minimum sizes 23" x 23" x 23" mm.(L)

Recommended conveyor belt specifications:

• Useful width 55".
• Length 39"
• Working height adjustable.
• Engine 0.37 Kw*.
• Lineal speed: From 13 ft./min. up to 49'/min.
• Max. weight to convey: 50b / lineal foot.

(*) Speed inverter for inner driven conveyor 0.75 Kw and exit driven conveyor 0.75 Kw.

Electrical equipment:

• Engine 3 Kw
• Power supply 230v or 480v 3PH 60Hz
• 24V d.c.
• Power consumption 1.69 Kw
• Ring rotation speed From 5 to 45 rpm.
• Speed inverters Omron.
• Programmable PLC: Omron.
• Pneumatic pressure: 90psi
• Compressed air consumption: 12 gal/cycle.

Stretch film reel specifications:

• Width: 9.84", 6.5" or 4".
• Thickness: 23, 30, 35 or 50 microns.
• External/internal Ø: 9" / 1.5".
