8" x 2" Polyon Cast Spring Loaded Swivel Caster - 675 Capacity
Couldn't load pickup availability
Trusted By

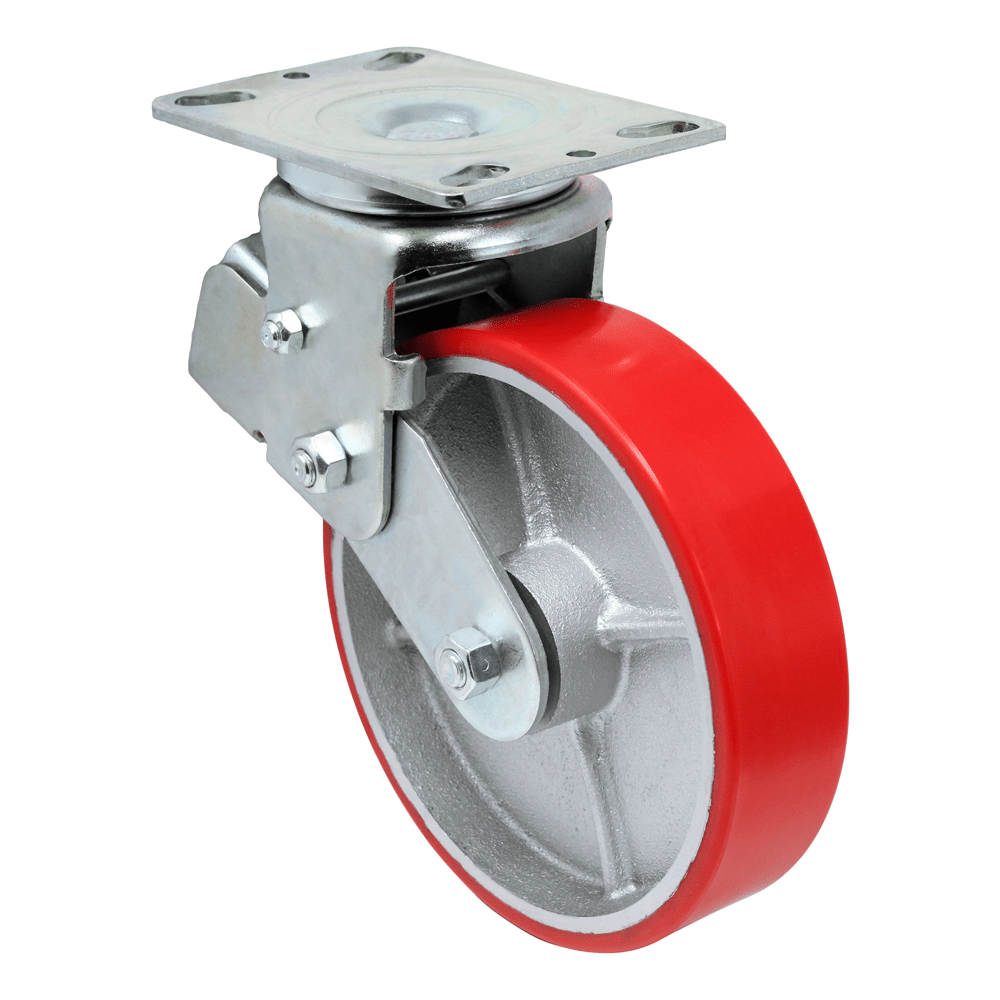

8" x 2" Polyon Cast Spring Loaded Swivel Caster
Spring loaded casters come with die cast springs with a compression beginning at 400 lbs. and total compression at 675 lbs. The compression range can be adjusted by changing springs. 2-9/16" bearing raceway is precisely machined and hardened. Mold-on rubber wheel is resilient to corrosion and will not flat spot
- 675 lbs Capacity
- Swivel spring loaded caster
- Durometer Shore A 75 (+/-5)
Tread: Mold-on Rubber
Core: Aluminum
Bearing: Sealed precision ball bearing
Rig: Zinc plated spring loaded swivel caster, 4" x 4-1/2" mounting plate
| Load Capacity | 675 lbs. |
| Wheel Diameter | 8" |
| Tread Width | 2" |
| Tread Type | Polyon-cast |
| Core Type |
Cast Iron |
| Overall Height | 10" |
| Swivel Radius | 6-11/16" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Patter | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Bolt Hole Diameter | 1/2" |
| Color | Black/Silver |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -40º F to 180º F |
