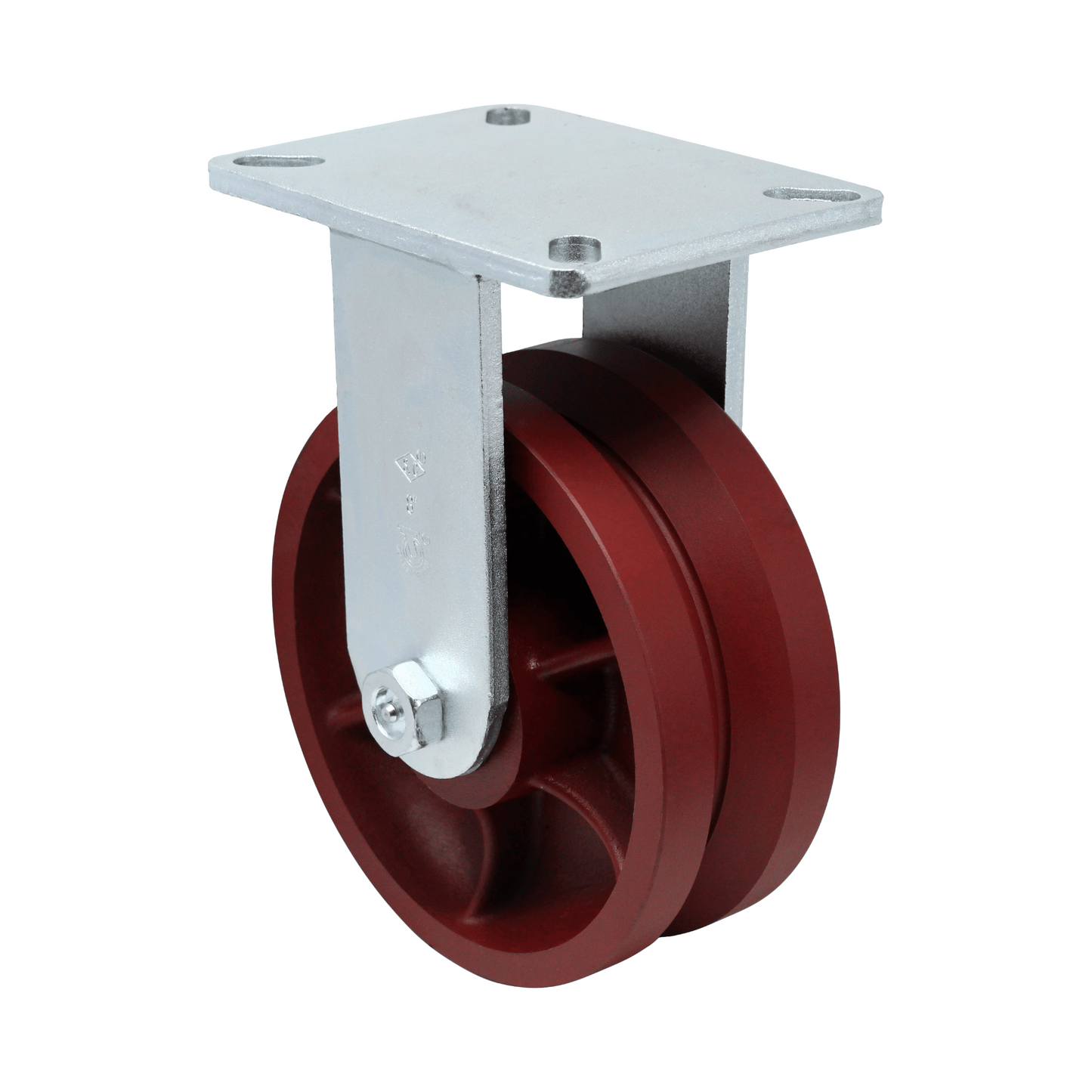

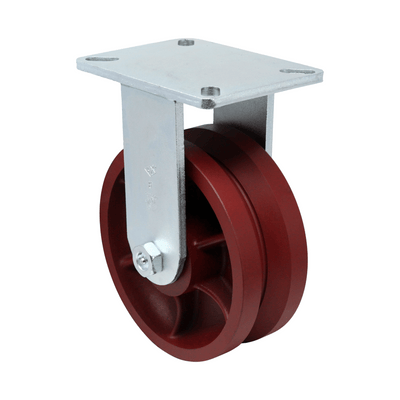

6" x 3" V-Groove Ductile Steel Wheel Rigid Caster
The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.
Tread: Solid Cast Ductile Steel with 7/8" V-groove
Core: Solid Cast Ductile Steel
Bearing: Roller Bearing
Rig: Zinc plated rigid caster, 3-3/8" x 5-1/4" mounting plate
- Capacity: 5,000 Lbs.
- Color: Red
- Durometer: Shore D 85 (+/-5)
- Temperature Range: -45° F to 250° F
| Load Capacity | 5,000 Lbs. |
| Wheel Diameter |
6" |
| Tread Width |
3" |
| Tread Type |
Solid Cast Ductile Steel with 7/8" V-groove |
| Core Type |
Solid Cast Ductile Steel |
| Bearing Type |
Roller Bearing |
| Wheel Color |
Red |
| Overall Height |
8" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern |
3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Bolt Hole Diameter |
1/2" |
| Durometer |
Shore D 85 (+/-5) |
| Temperature Range | -45° F to 250° F |
