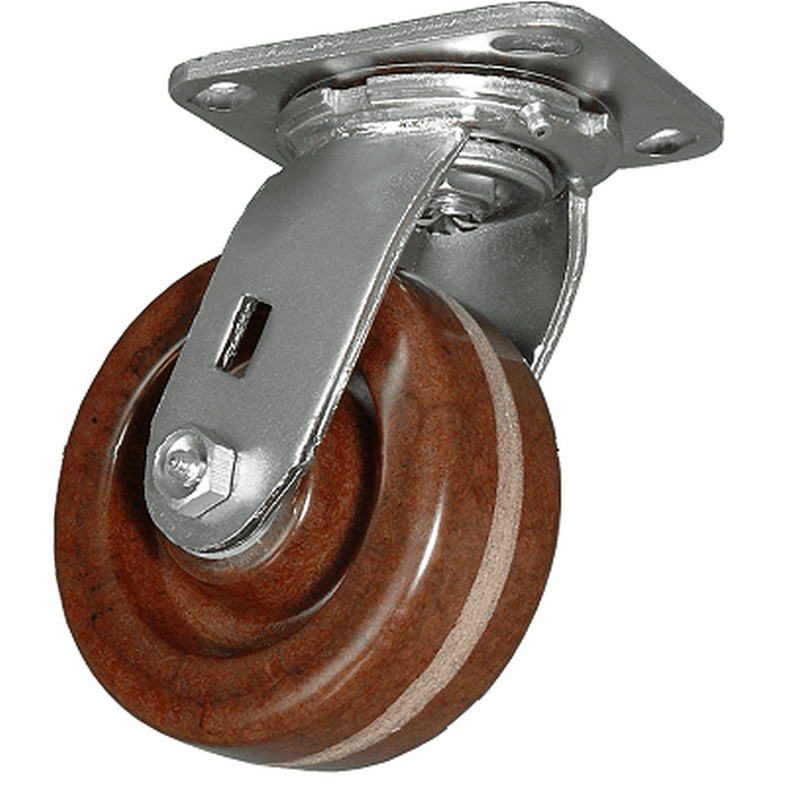

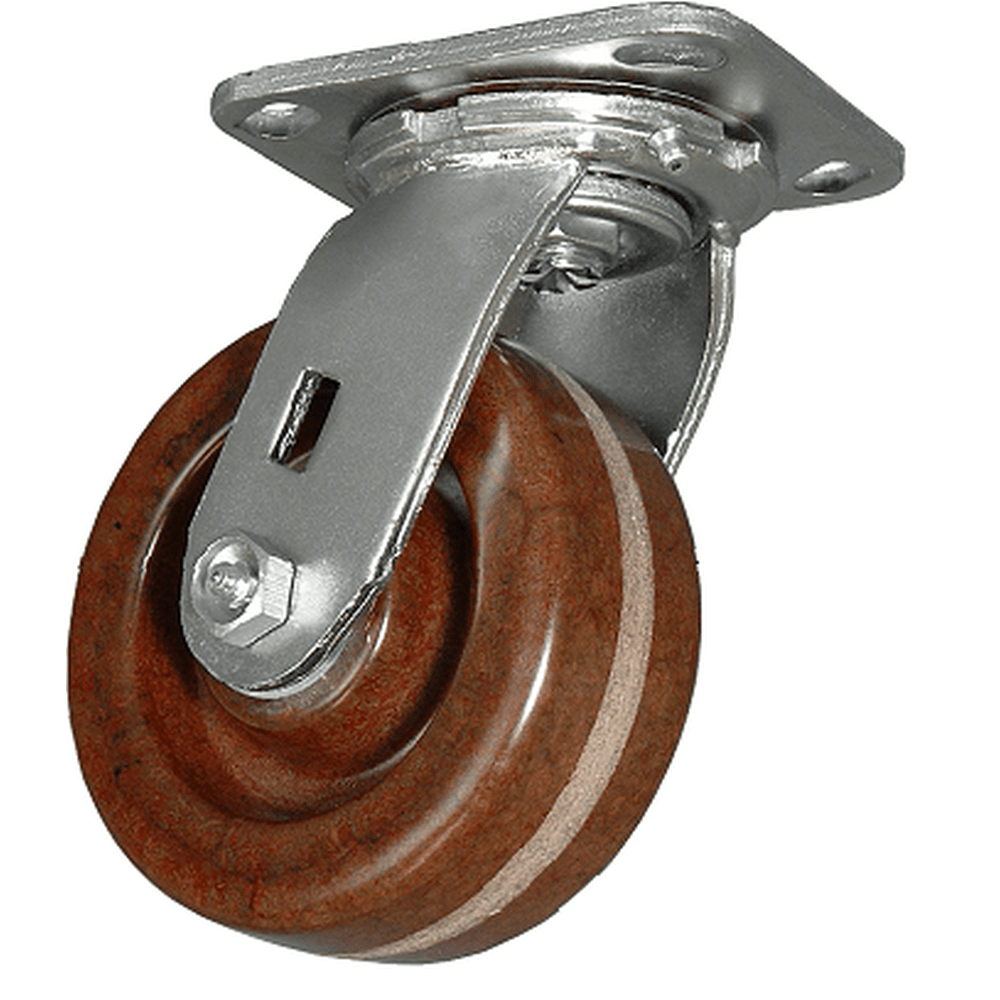

6" x 2" High Temp Phenolic Wheel Swivel Caster - 900 lbs. Capacity

In stock
SKU: 27HT60JQ0417YY
Regular price $86.97
Est. Ship Date: Wednesday, December 25th
Four Position Swivel Lock
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

6" x 2" High Temp. Phenolic Wheel Swivel Caster

The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.

Tread & Core: Phenolic Resin With Macerated Canvas

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 900 Lbs.
  • Color: Brown
  • Durometer: Shore D 95 (+/-5)
  • Temperature Range: -40° F to 475° F continuous, 550° F intermittent
Load Capacity  900 Lbs.
Wheel Diameter
6"
Tread Width
2"
Tread Type  Phenolic Resin with Macerated Canvas
Core Type
Phenolic Resin with Macerated Canvas
Bearing Type
Roller Bearing
Wheel Color
Brown
Overall Height
7-1/2"
Swivel Radius
4-9/16"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer  Shore D 95 (+/-5)
Temperature Range  -40° F to 475° F continuous, 550° F intermittent
