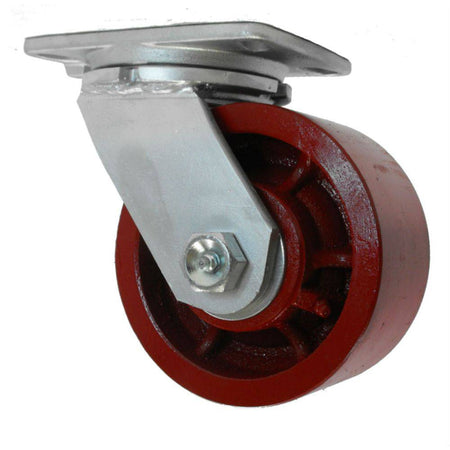

6" x 3" Heavy Duty Ductile Steel Wheel Swivel Caster
The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel.
Tread & Core: Solid Cast Ductile Steel
Bearing: Roller Bearing
Rig: Forged steel swivel caster, 4-1/2" x 6-1/4" mounting plate
- Capacity: 2,400 Lbs.
- Color: Red
- Tensile Strength: 45,000 PSI
- Temperature Range: -45° F to 800° F
| Load Capacity | 2,400 Lbs. |
| Wheel Diameter | 6" |
| Tread Width |
3" |
| Tread Type | Solid Cast Ductile Steel |
| Core Type |
Solid Cast Ductile Steel |
| Bearing Type |
Roller Bearing |
| Wheel Color |
Red |
| Overall Height |
7-1/2" |
| Swivel Radius |
5-1/2" |
| Plate Size |
4-1/2" x 6-1/4" |
| Bolt Hole Pattern |
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Bolt Hole Diameter | 1/2" |
| Lock Type | 4-Position Swivel Lock |
| Tensile Strength | 45,000 PSI |
| Temperature Range | -45° F to 800° F |
