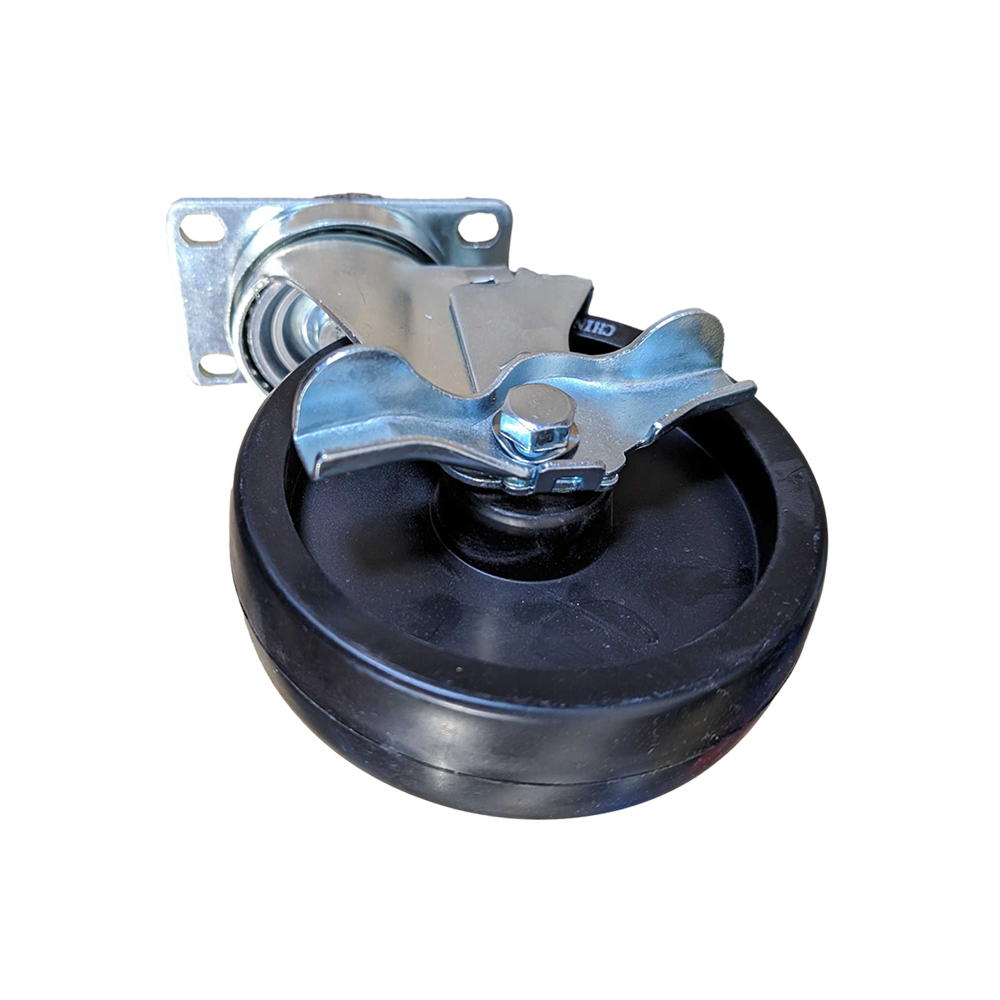

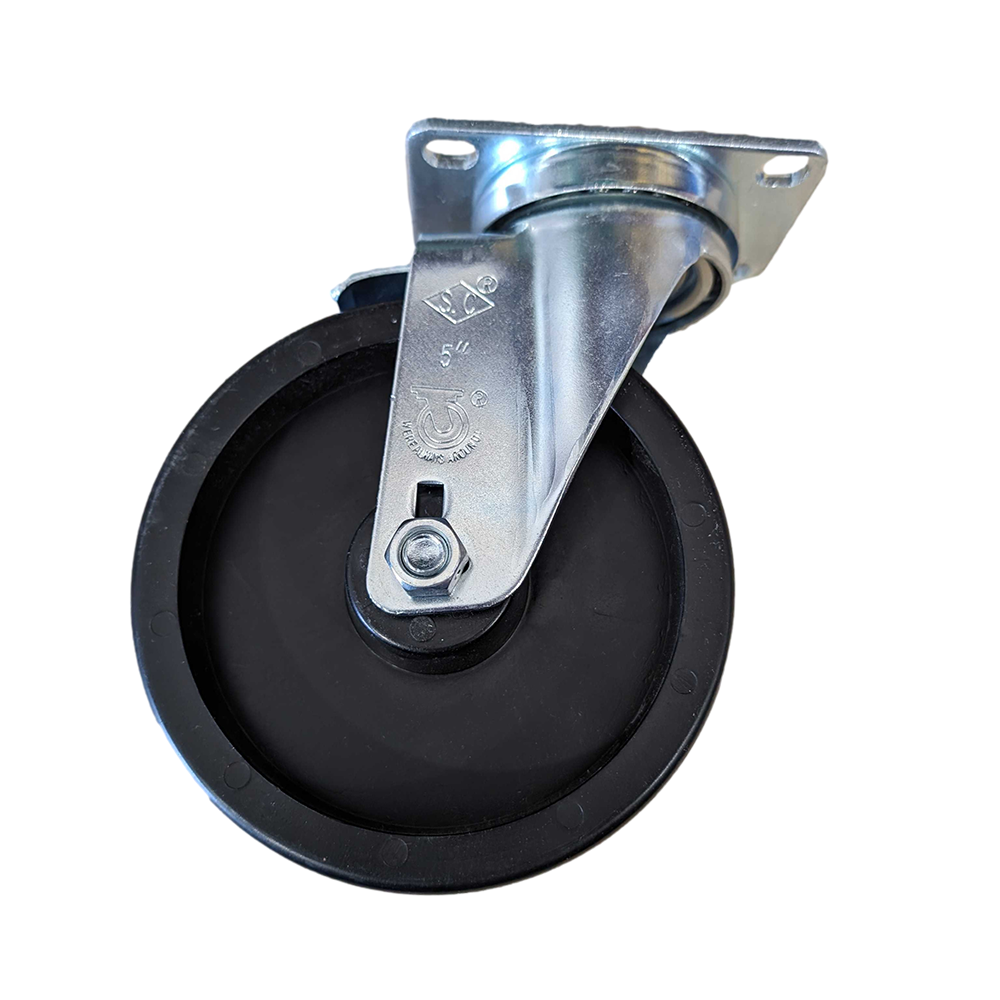

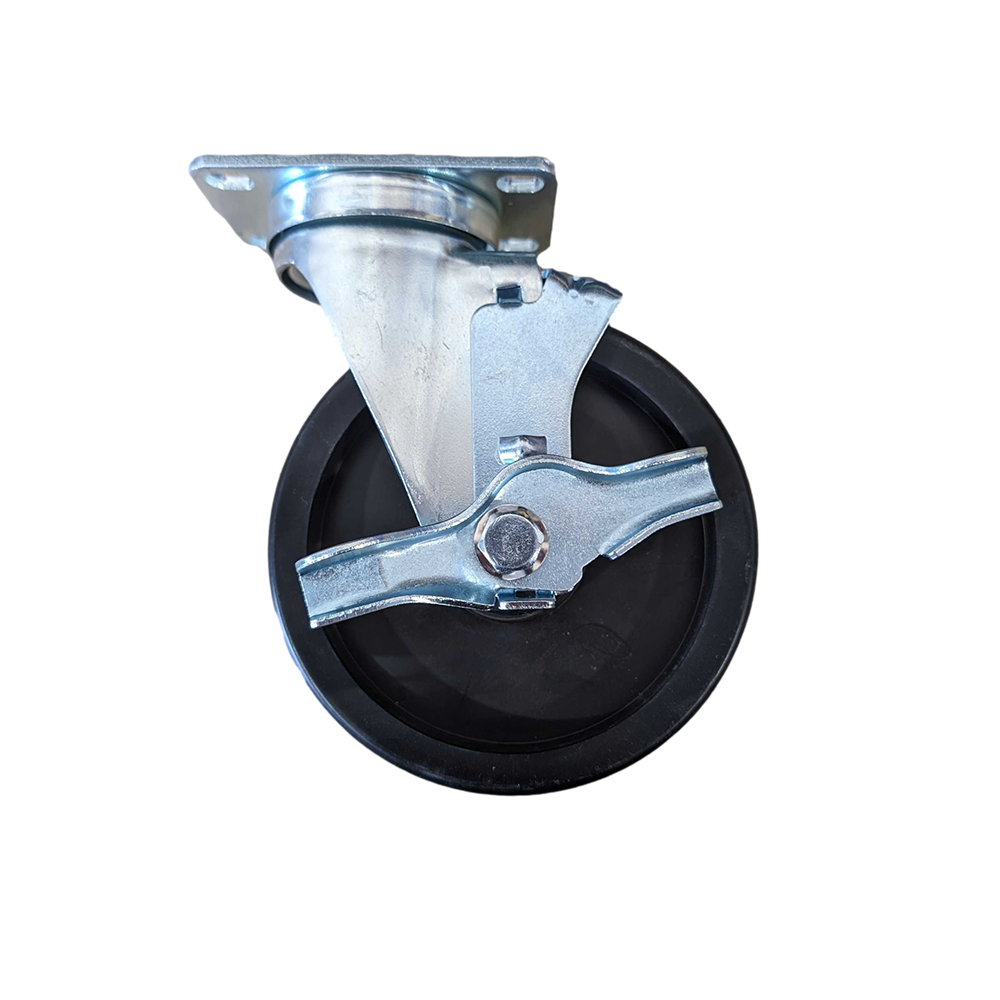

5" x 1-1/4" Polyolefin Wheel Swivel Caster w/Top Lock Brake - 200 lbs. Capacity
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
5" x 1-1/4" Polyolefin Wheel Swivel Caster w/ Top Lock Brake
The polyolefin wheel is economical and lightweight with a high load capacity. This hard wheel is highly resistant to organic solvents, oil, grease, and most chemicals, acids, and cleaning solutions.
Tread & Core: Solid Cast Polyolefin
Bearing: Plain Bore
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 3-1/8" x 4-1/8" Mounting Plate, Top Lock Brake
- Capacity: 200 Lbs.
- Color: Black, Non-Marking
- Durometer: Shore D 70 (+/-5)
- Temperature Range: -20°F to 180°F
| Load Capacity | 200 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
1-1/4" |
| Tread Type |
Solid Cast Polyolefin |
| Core Type |
Solid Cast Polyolefin |
| Bearing Type |
Plain Bore |
| Wheel Color |
Black, Non-Marking |
| Overall Height |
6-1/8" |
| Swivel Radius |
4" |
| Plate Size |
3-1/8" x 4-1/8" |
| Bolt Hole Pattern |
1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" |
| Bolt Hole Diameter | 3/8" |
| Lock Type | Top Lock Brake |
| Durometer | Shore D 70 (+/-5) |
| Temperature Range | -20°F to 180°F |
